Bare Knuckle 20mm 50T Trailer Chain Attachment Kit
$558.00

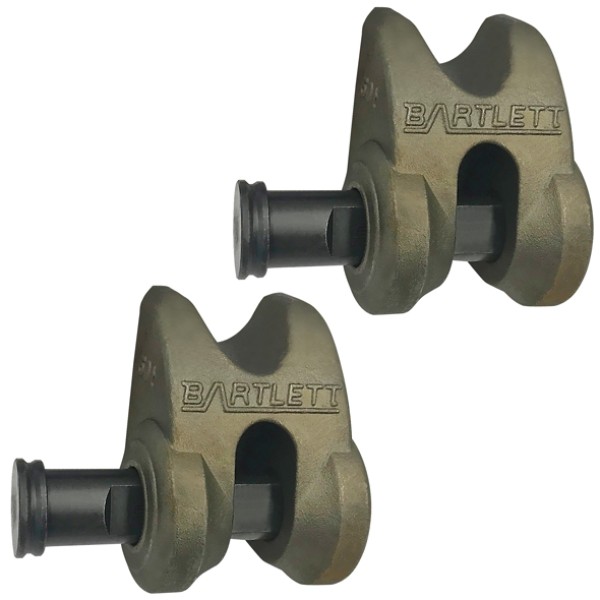

Bartlett Bare Knuckle BK20-50D trailer-side safety chain attachment kit, rated to 50,000kg ATM. Includes weldable attachments, high tensile retaining pins and pinch clips. Designed for the BK20 20mm system, with 19mm G80 chain (TC9499) as the associated chain, where 19mm refers to the steel thickness of each link.
Part number TC0535.
Chain sold separately.
Quick Quote
|
Select from a home delivery or a delivery to your business address. |
Description
Overview
The Bartlett Bare Knuckle BK20-50D trailer chain attachment kit provides permanent safety chain connection points on heavy trailer drawbars. Designed for Bartlett’s BK20 system, the trailer-side attachment uses high tensile retaining pins and pinch clips to secure compatible chain end links directly to the drawbar attachments.
The kit is rated for applications up to 50,000kg ATM and forms the trailer-side component of the Bartlett BK20 safety chain attachment system.
Features
- Trailer-side attachment for the Bartlett BK20 system.
- Maximum system rating of 50,000kg ATM.
- Includes weldable chain attachment components.
- High tensile retaining pins and pinch clips included.
- Direct chain retention without additional connecting links.
- Compatible safety chain purchased separately.

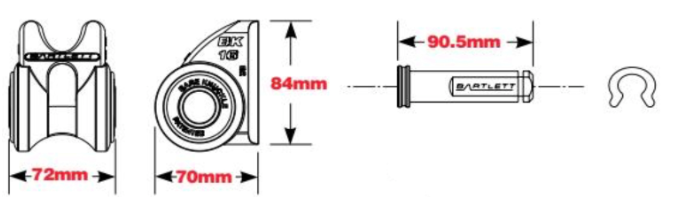

Specifications and Materials
- Manufacturer: Bartlett
- Model: BK20-50D
- System designation: BK20 (20mm system)
- Associated safety chain: 19mm G80
- Maximum ATM: 50,000kg
- Mounting position: Trailer side (drawbar)
- Retaining hardware: High tensile pins and pinch clips
- Component Registration Number: 49482
Part number: TC0535.
Refer to the National Heavy Vehicle Inspection Manual for heavy trailer safety chain inspection requirements
Compatibility and Fitment
The BK20 designation identifies Bartlett’s 20mm attachment system. The associated TC9499 G80 safety chain has a nominal steel link diameter of 19mm.
The 19mm measurement refers to the diameter of the solid steel forming each individual chain link. It does not describe the retaining pin length or diameter, the overall chain link dimensions, or the opening inside the link.
Check the trailer drawbar construction, mounting location, required ATM rating and compatibility of the complete BK20 attachment assembly before installation.
Related Parts
| Relationship | Part Number | Description |
|---|---|---|
| Associated safety chain | TC9499 | 19mm G80 towing safety chain pair |
| Matching truck-side kit | TC0534 | Bartlett BK20-50T attachment kit |
Compliance and Safety
Installation and welding must follow Bartlett’s requirements and applicable heavy vehicle standards. Check the drawbar attachment points, retaining pins, pinch clips and chain articulation before the trailer returns to service.
Trailer Applications
Used on heavy rigid drawbar trailers requiring permanent safety chain retention through the Bartlett BK20 attachment system. Suitable for compatible new trailer construction, workshop repairs and attachment upgrades.
Why Choose ICS Trailers
ICS Trailers can assist with matching the BK20 trailer-side attachment to its corresponding truck-side hardware and safety chain. Comparing the system model and chain link thickness is essential when replacing or upgrading existing attachment assemblies.
