Description

Overview

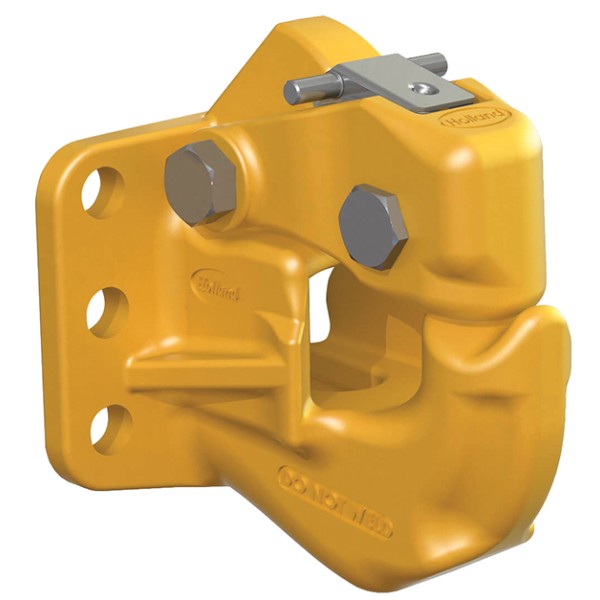

SAF Holland PH310 pintle hook gives heavy trailer combinations a rigid mount towing connection for on-road and off-road applications. This post May 2021 version suits PH310RN21 selection and carries a 165 kN D-value for high capacity pintle hook setups.

Features

• Heavy duty rigid mount pintle hook for trailer and semi-trailer towing applications.
• Austenitic manganese steel alloy body for enhanced wear resistance.
• One-handed latch operation for faster coupling and uncoupling work.
• Rated to 8,164 kg maximum vertical load and 32,658 kg maximum gross trailer weight.

Specifications and Materials

This SAF Holland PH310 pintle hook matches drawbar eyes with 2.38″ to 3″ I.D. and 1.25″ to 1.63″ diameter section. For severe off-road work, reduce the maximum capacities by 25% and use a swivel-mount drawbar.

Part number: TC3477.

Use the SAF-Holland PH-310 product information when checking product family details

Compatibility and Fitment

Confirm the vehicle mounting structure, drawbar eye dimensions, bolt pattern, load rating and operating environment before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. PH310RN21

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

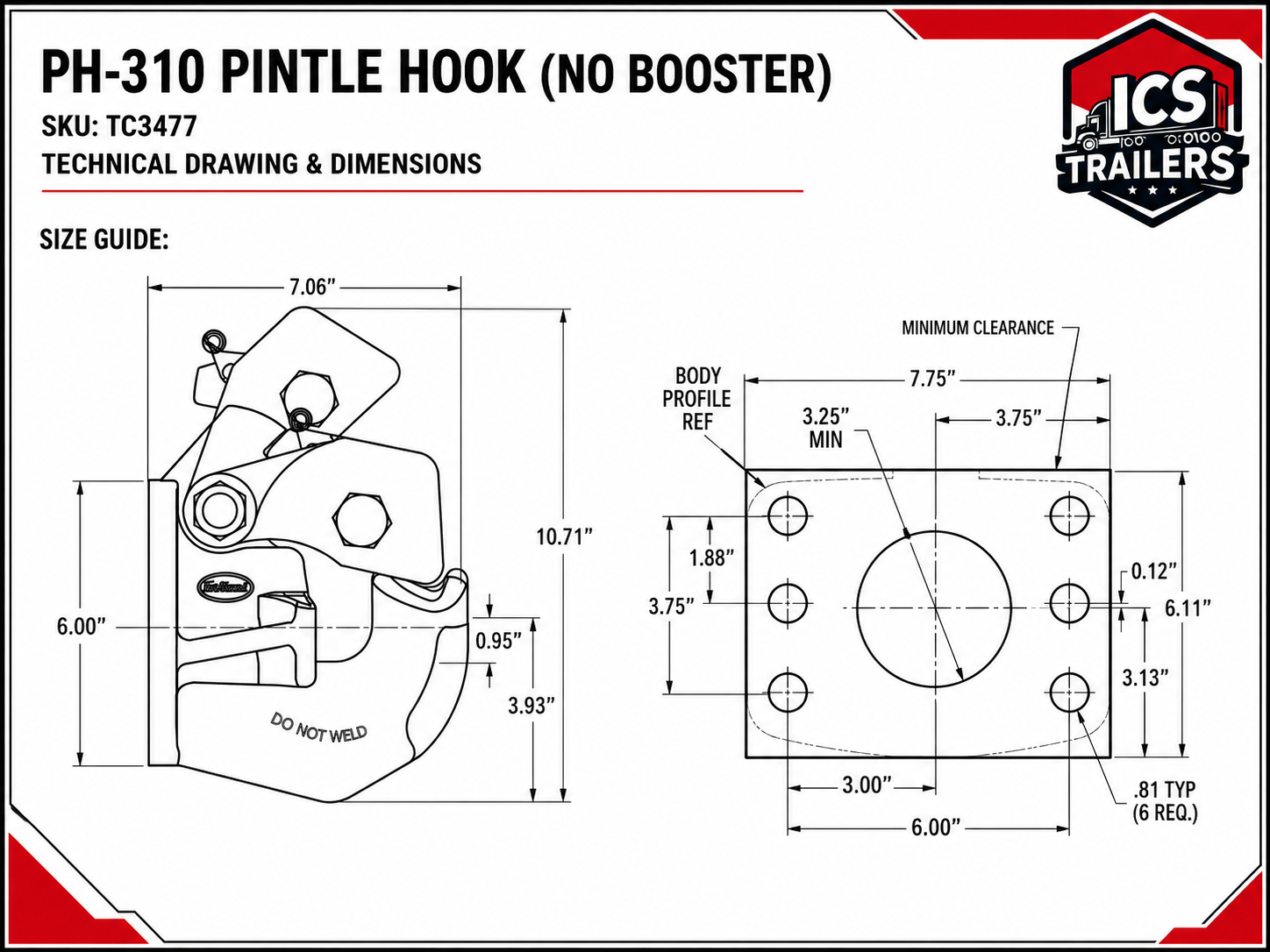

Mount the pintle hook only to a structure rated for the application, then check latch movement, drawbar eye fit and fastener condition before return to service. The PH310 mounting setup uses six 3/4″ Grade 8 bolts in the specified mounting pattern.

Do not weld on the hook body or modify the hook. If the jaw, latch or mounting face shows damage, replace the affected component before towing.

Trailer Applications

Workshops fit the SAF Holland PH310 pintle hook to heavy trailer, full trailer, doubles and triples towing applications. It suits fleets that need a high capacity pintle connection with a serviceable jaw, latch and air-assisted plunger arrangement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
