Description

Overview

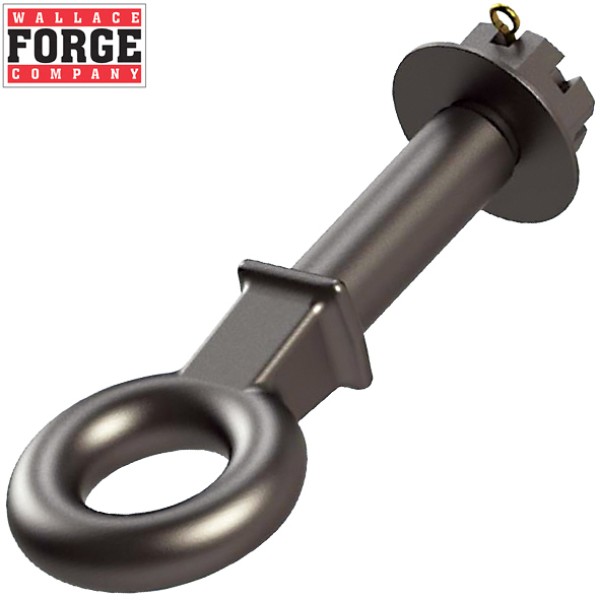

25t Bolt On Swivel Drawbar Towing Eye supports heavy trailer drawbar connection where a swivelling tow eye suits the coupling setup.

This tow eye suits trailers, doubles, and towing equipment used in on-road and off-road applications. Because towing eye fitment affects coupling movement, rating, and articulation, match the eye size, block style, and approved application before fitting.

Features

• 25,000kg maximum gross trailer weight rating.
• 4,500kg maximum vertical load rating.
• 3in internal eye diameter with 1-5/8in section diameter.
• Swivel drawbar design for compatible bolt-on housing block applications.

Specifications and Materials

Product type: swivel drawbar towing eye.

ADR approved SARN: CTA-016133.

Model: 51337.

D-value: 80kN.

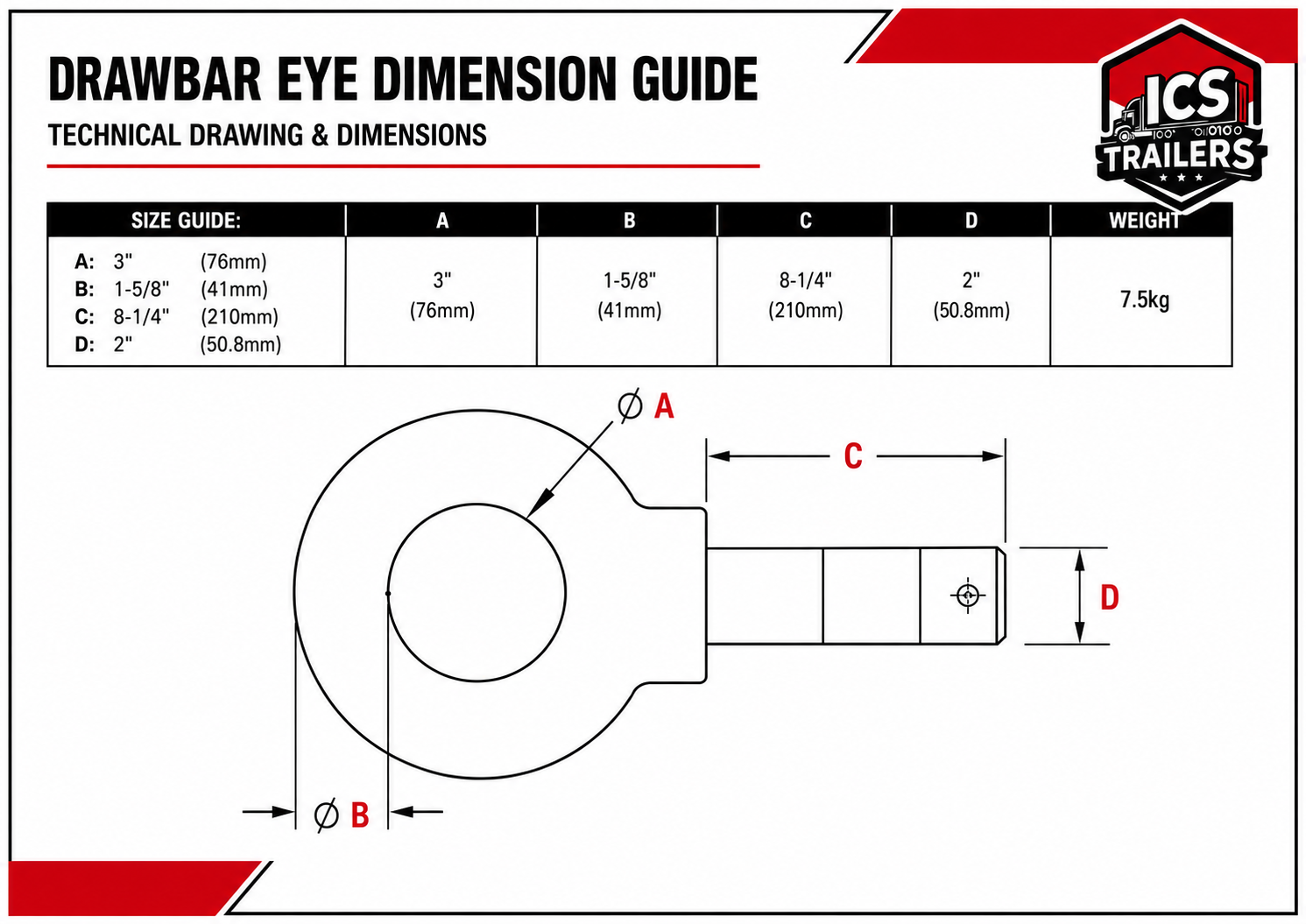

Eye internal diameter: 3in, 76mm.

Eye section diameter: 1-5/8in, 41mm.

Part number: TC6004.

For manufacturer tow ring capacity and dimension details, see the Wallace Forge swivel tow ring specifications

Compatibility and Fitment

Check the drawbar eye diameter, section diameter, housing block, mounting arrangement, and rating plate before ordering. Also confirm the trailer application and coupling movement, because restricted swivel movement can overload the towing connection.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2063126

Use this 25t Bolt On Swivel Drawbar Towing Eye with the matching square housing block where the trailer setup calls for the same swivel eye and block arrangement.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the towing eye, housing block, mounting hardware, and drawbar structure before use. Then confirm all fasteners, retaining hardware, and coupling clearances meet the vehicle builder’s requirements before the trailer returns to service.

Replace the tow eye if it shows wear, deformation, cracking, impact damage, or poor swivel movement. Also avoid using a coupling or pintle hook that restricts normal tow ring rotation.

Trailer Applications

Workshops fit 25t Bolt On Swivel Drawbar Towing Eye assemblies to heavy trailers, doubles, and equipment trailers that need a rated drawbar eye for compatible towing couplings. It suits new builds, coupling repairs, and replacement work where the existing block and eye arrangement must be retained.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
