Trailer Safety Chain Attachment Kit 20mm Truck Side

Trailer Safety Chain Attachment Kit 20mm Truck Side

$615.00

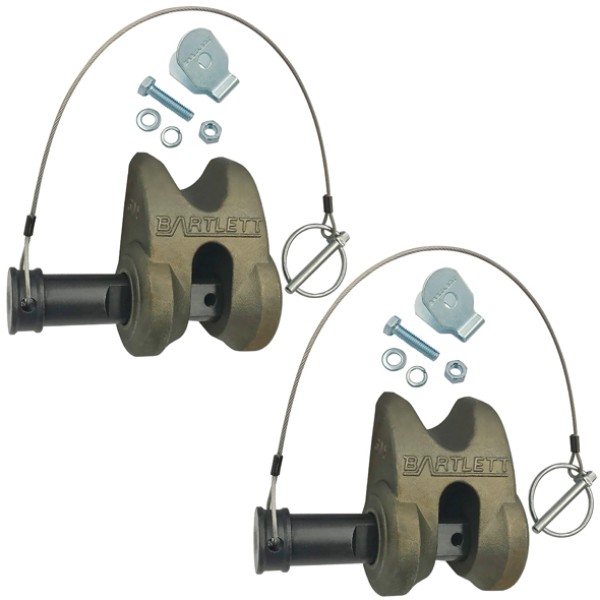

Bartlett Bare Knuckle BK20-50T truck-side safety chain attachment kit, rated to 50,000kg ATM. Features weldable towbar attachments, releasable pins and P-clip hardware. The BK20 20mm system designation is distinct from the associated 19mm G80 safety chain (TC9499), where 19mm measures the steel thickness of each link.

Part number TC0534.

Chain sold separately.

Quick Quote

SKU: TC0534 Category: Tags: , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

The Bartlett Bare Knuckle BK20-50T truck-side safety chain attachment kit provides a rated connection point for heavy vehicle towbar safety chains. Designed for the Bartlett BK20 system, the assembly uses releasable retaining pins to allow compatible chain end links to engage directly with the towbar attachments.

The kit has a maximum system rating of 50,000kg ATM and includes weldable attachment hardware and the associated retaining components.

Features

  • Truck-side attachment for the Bartlett BK20 system.
  • Maximum system rating of 50,000kg ATM.

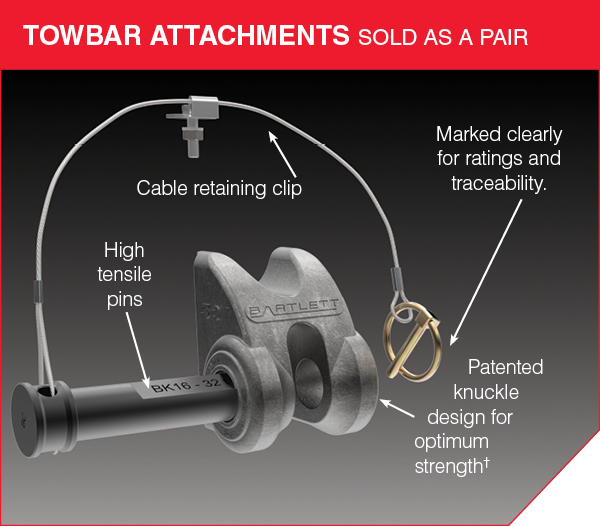

  • Includes weldable towbar attachment set.
  • Releasable retaining pins and BK cable P-clip hardware.
  • Direct chain engagement without additional connecting links.
  • Safety chain sold separately.

Specifications and Materials

  • Manufacturer: Bartlett
  • Model: BK20-50T
  • System designation: BK20 (20mm system)
  • Associated safety chain: 19mm G80
  • Maximum ATM: 50,000kg
  • Mounting position: Truck side (towbar)
  • Component Registration Number: 49482
  • Attachment material: High-grade weldable steel alloy

Part number: TC0534.

Refer to the National Heavy Vehicle Inspection Manual for heavy vehicle coupling and safety chain inspection guidance

Compatibility and Fitment

Important: BK20 is Bartlett’s 20mm system designation. The associated G80 safety chain, TC9499, has a nominal steel link diameter of 19mm.

The 19mm chain measurement refers to the thickness of the solid steel forming each chain link. It does not refer to the retaining pin length or diameter, the overall dimensions of the chain link, or the opening inside the link.

Match the complete BK20 attachment arrangement, chain specification, towbar structure and maximum ATM rating before installation.

Related Parts

Relationship Part Number Description
Associated safety chain TC9499 19mm G80 towing safety chain pair
Matching trailer-side kit TC0535 Bartlett BK20-50D attachment kit

Compliance and Safety

Install the attachment in accordance with Bartlett’s approved installation requirements. Inspect the towbar mounting area, welds, retaining pins and P-clips. Confirm that the safety chains can articulate freely throughout the towing combination’s movement range.

Trailer Applications

Used on heavy truck towbars requiring Bartlett BK20 safety chain attachment hardware, including compatible heavy rigid drawbar towing combinations, new builds and retrofit applications.

Why Choose ICS Trailers

ICS Trailers can assist with matching BK20 truck-side attachments, trailer-side components and associated safety chains. Confirm the Bartlett system designation and the chain’s actual steel link diameter when selecting components.
