Description

Overview

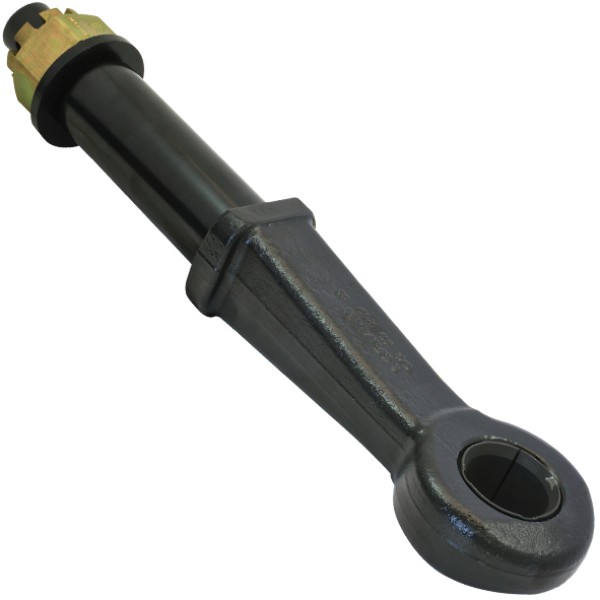

50mm bolt in drawbar eye secures the drawbar connection on dolly and dog trailer hinged drawbar applications. It suits bolt-in towing eye setups where the trailer uses a 50mm eye, 250kN D-value and 60mm x 173mm shaft. Because this is a coupling component, match the application and housing block before ordering.

Features

• 50mm internal drawbar eye diameter.
• 250kN D-value for matched hinged drawbar applications.
• 60mm x 173mm shaft for bolt-in housing fitment.
• Includes complete fasteners for the OC50R series fitting.

Specifications and Materials

This 50mm bolt in drawbar eye uses a bolt-in removable style with a castellated nut and complete fasteners. The nut torque range is 500-1000Nm, and the matching housing block is listed separately in the related parts table. Part number: TC7153.

Use the manufacturer technical page for OC50R series data.

Compatibility and Fitment

Check the eye diameter, shaft size, housing block and trailer type before fitting. This part suits dolly or dog trailer use only, not rigid pig trailer use. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. OC50R10, OC50RT1, TCOC50R10, CTA-037721, CTA037721.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Fit this towing eye only to the correct hinged drawbar application. Also inspect the housing block, nut, fasteners and coupling wear before returning the trailer to service. Do not fit this eye to a rigid pig trailer.

Trailer Applications

Workshops use this style on dog trailers and converter dollies where a removable 50mm bolt-in drawbar eye suits the drawbar design. If the old eye has wear or damaged threads, check the block and coupling gauges at the same time.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supports tow coupling repairs with drawbar eyes, housing blocks and checking gauges for heavy trailer service. When the trailer setup is unclear, match the old part by eye diameter, shaft size and trailer application.
