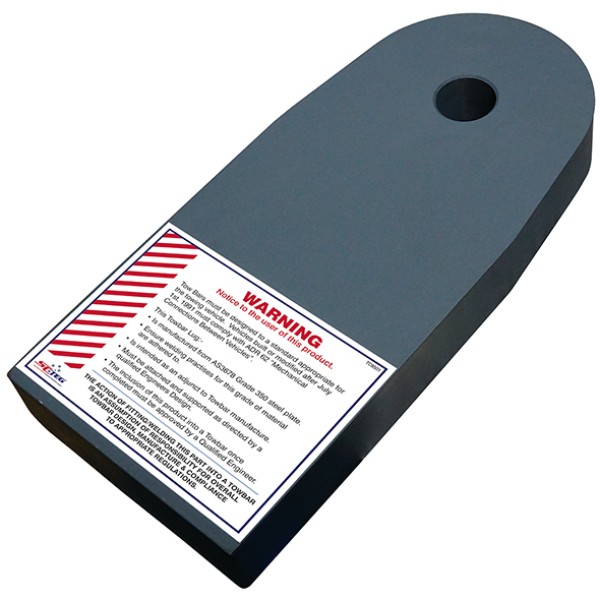

Bartlett ball mounting plate supports the truck-side towbar lug position on 127mm Bartlett Ball coupling setups. It suits the 59DX truck-side ball kit where a 40mm towbar lug is required. Because this part forms part of the towing connection, match the coupling model, lug size and truck-side mounting before ordering.

Features

• 40mm truck-side towbar lug for 127mm Bartlett Ball coupling setups.
• Suits 59DX 127mm Bartlett coupling applications.
• Designed for the truck-side mounting position.
• Pairs with the matching 127mm Bartlett ball, main bolt and locating ring parts.

Specifications and Materials

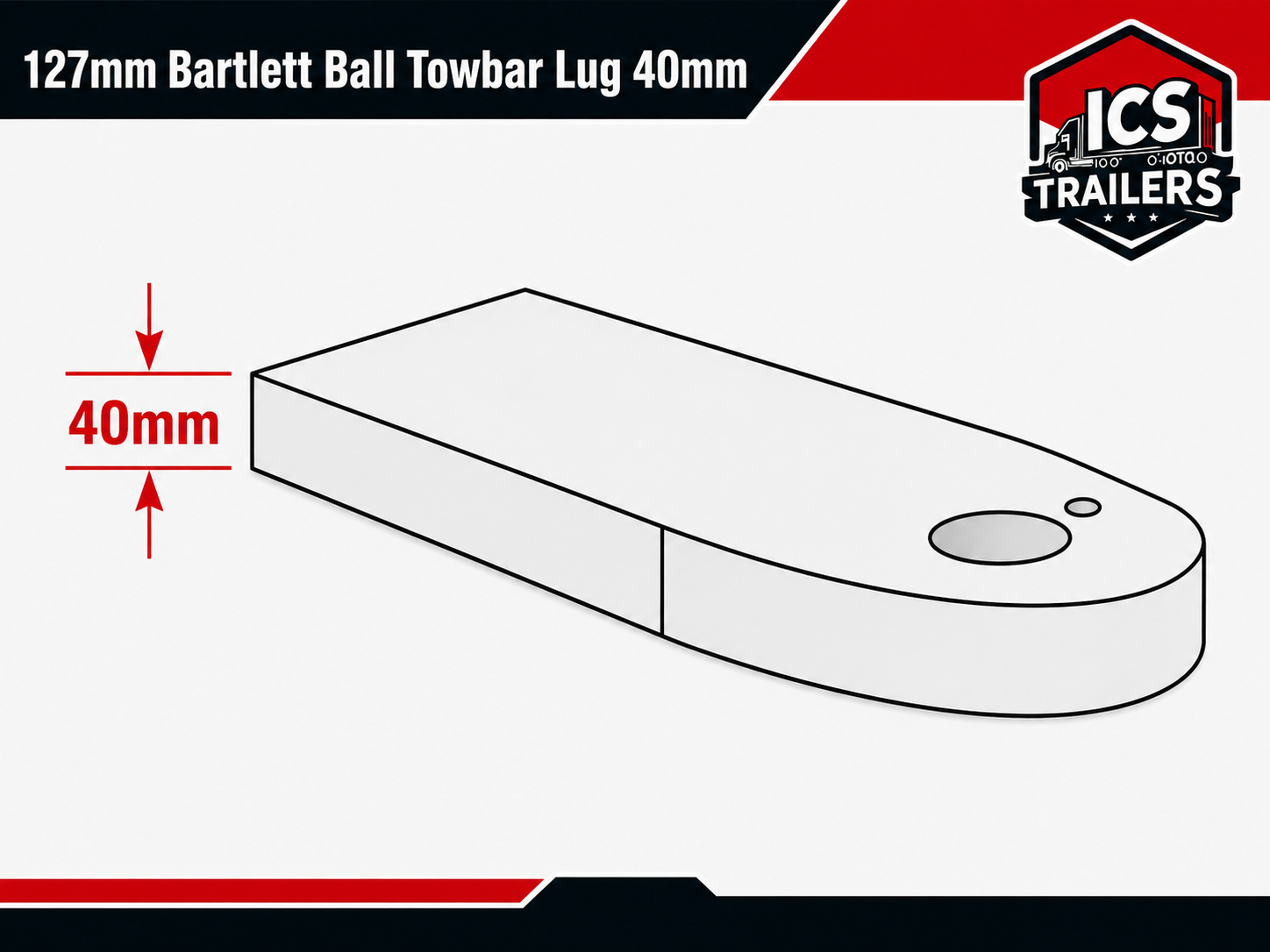

This Bartlett ball mounting plate suits 127mm ball coupling assemblies where the towbar lug carries the truck-side ball setup. The lug size is 40mm, so compare the old mounting plate and coupling arrangement before fitting. Part number: TC9501.

Use the ADR mechanical connections overview for general mechanical coupling compliance context.

Compatibility and Fitment

Check the plate against the 127mm Bartlett coupling, 59DX truck-side ball kit and 40mm lug requirement before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 59/12L, 5912L.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the towbar structure, mounting face and mating coupling parts before fitting this Bartlett ball mounting plate. Also make sure the lug support suits the truck body design, because the mounting plate must carry coupling loads through the towbar structure.

Trailer Applications

Body builders and workshops use this plate on truck-side 127mm Bartlett Ball coupling installations. It suits towbar setups using the 59DX ball arrangement, while the matching trailer-side hood parts must be checked separately.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supports Bartlett coupling repairs with truck-side ball components, trailer-side hood components and related fastening parts. When the old setup has mixed parts, check the coupling model and truck-side or trailer-side position before ordering.
