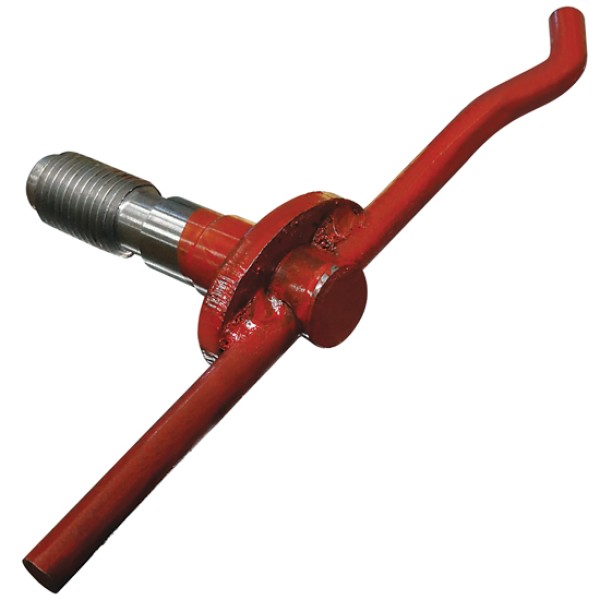

Bartlett 127mm Coupling Clamping Bolt With Handle
Bartlett 127mm Coupling Clamping Bolt With Handle
$35.00
Bartlett clamping bolt with handle for 127mm 59DX truck-side coupling assemblies, with high tensile construction and aftermarket or genuine replacement options for coupling service work.
Part number TC9515.
Description
Overview
Bartlett clamping bolt secures the truck-side clamping action on 127mm Bartlett 59DX coupling assemblies. The high tensile bolt and handle suits service work where the original clamping bolt has worn, bent, seized or gone missing.
Features
- High tensile clamping bolt with handle for Bartlett 59DX coupling service.
- Suits 127mm Bartlett coupling assemblies on the truck side.
- Available in aftermarket and genuine replacement options where configured.
- Check the compression spring, cap and main bolt while the coupling is apart.
Specifications and Materials
This Bartlett clamping bolt suits the 127mm Bartlett 59DX truck-side ball coupling assembly. Match the old clamping bolt, handle position and surrounding 59DX service parts before ordering. Part number: TC9515.
Use the ADR 62 mechanical connections overview when checking mechanical connection requirements.
Compatibility and Fitment
Confirm the coupling model and mounting side before fitting. This part suits 127mm Bartlett 59DX truck-side coupling assemblies and must be checked against the clamping spring, cap and ball assembly during service.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. TC0515, 127060001, 59/6, 596
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Used with | TC9516 / TC0516 | Compression spring |
| Used with | TC9512 / TC0512 | Domed cap with greaser |
| Used with | TC9513 / TC0513 | Main bolt |
| Used with | TC0511 | 127mm ball |
| Used with | TC9517 / TC0517 | Locating ring |
| Used with | TC0514 | Locking nut and washer |
| Used with | TC9518 / TC0518 | Safety spring hook |
Compliance and Safety
Inspect the coupling before refitting the clamping bolt. Replace worn springs, damaged caps, loose fasteners or distorted ball components, then confirm the coupling clamps and releases correctly before returning the vehicle to service.
Trailer Applications
Workshops replace the Bartlett clamping bolt during 127mm ball coupling repairs on truck-side 59DX assemblies. Because the clamping bolt works with the spring, cap and ball hardware, those parts should be inspected together rather than treated as isolated wear points.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| TC0515 | 127060001 | 59/6 |
| 596 |
Why Choose ICS Trailers
ICS Trailers supplies Bartlett tow coupling parts for truck and trailer coupling repairs, including the smaller service components that keep 59DX assemblies working correctly.
Browse ICS Tow Couplings for matching Bartlett coupling parts and trailer towing hardware.
