Overview

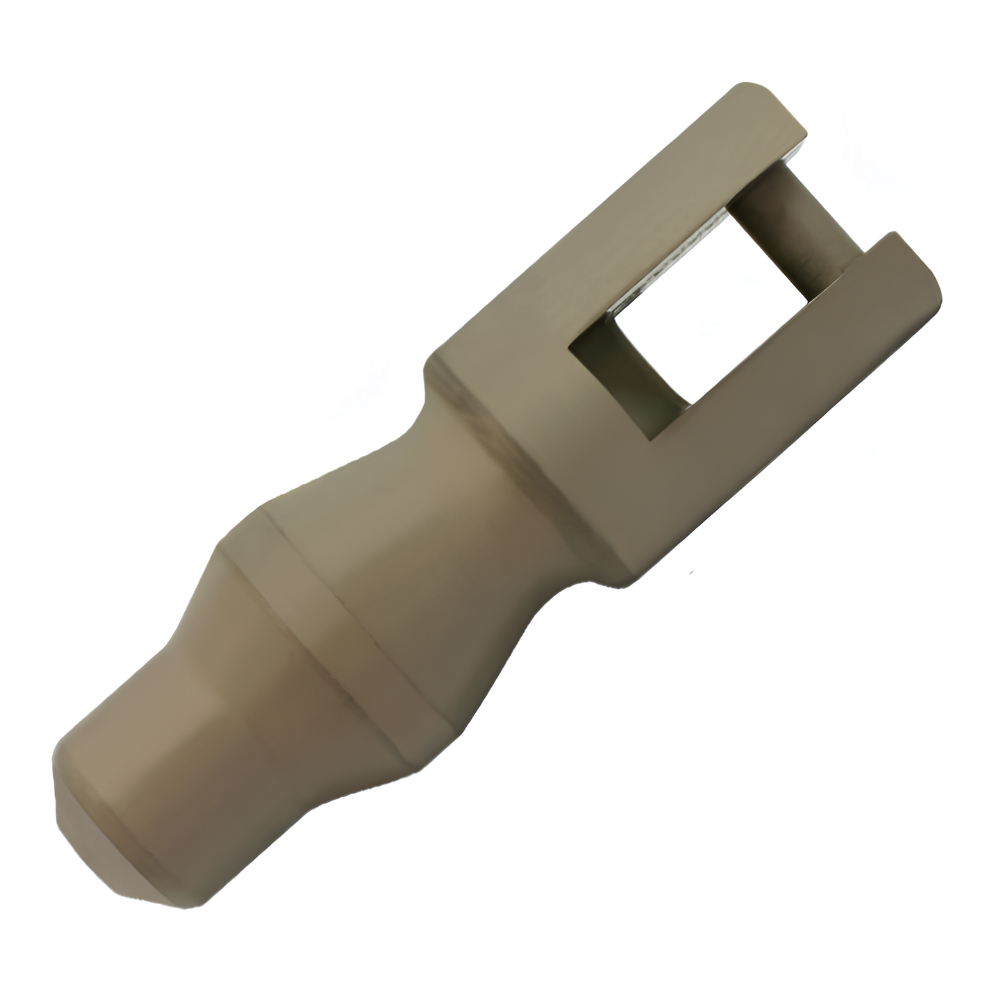

Ringfeder Coupling Pin Repair Kit services the main pin and spring area on compatible 50mm Ringfeder trailer couplings.

This minor repair kit suits Ringfeder Model 96 and Model 81 couplings where the coupling pin assembly needs service without replacing the complete coupling. Because the coupling pin carries the locking load, match the coupling model and pin style before ordering.

Features

• Minor coupling pin repair kit for 50mm Ringfeder trailer couplings.
• Suits Ringfeder Model 96 and Ringfeder Model 81 applications.
• Supports pin and spring service on compatible coupling assemblies.
• Useful during latch, pin movement, or coupling wear repair work.

Specifications and Materials

Product type: coupling pin repair kit.

Application: Ringfeder Model 96 and Model 81 50mm trailer couplings.

Service area: coupling pin and spring mechanism.

Part number: TC7145.

For coupling inspection and repair guidance, see the Ringfeder service manual

Compatibility and Fitment

Check the coupling model, pin diameter, spring arrangement, locking movement, and surrounding bushes before ordering. Also inspect the wear pad and guide bush area, because worn guide parts can affect pin movement after the kit is fitted.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. TCK1037, TCK1017, 14991375

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the coupling body, locking pin, bushes, springs, wear pads, nut, and cotter pin before refitting. Then test the coupling opening and locking action before the trailer returns to service.

Carry out coupling repairs in a professional workshop and replace damaged locking parts instead of reusing worn hardware.

Trailer Applications

Workshops use Ringfeder Coupling Pin Repair Kit hardware during 50mm Ringfeder tow coupling maintenance on heavy trailers and dollies. It suits minor repair work where the coupling body remains serviceable but the pin and spring mechanism needs attention.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers can help match Ringfeder coupling service parts by model, pin setup, bush condition, and related repair hardware.
