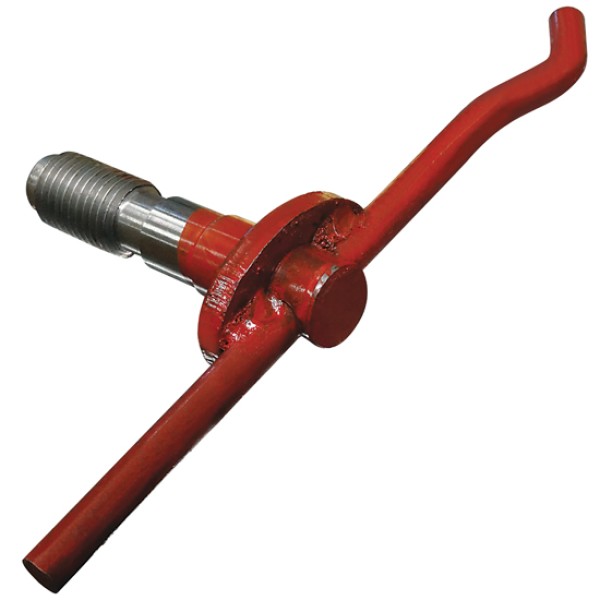

High Tensile Clamping Bolt With Handle 127mm Bartlett
High Tensile Clamping Bolt With Handle 127mm Bartlett
$197.00
High tensile clamping bolt with handle for Bartlett 127mm 59DX couplings, built for the truck-side clamping assembly and matched to the spring, cap and main bolt so the coupling can clamp and release cleanly during service.
Part number TC0515.
Description
Overview
Bartlett clamping bolt with handle secures the truck-side clamp on the 127mm 59DX coupling assembly, so the trailer hood can lock down firmly over the ball. It forms part of the clamping system that holds the coupling closed, and it also works with the spring-loaded hardware that keeps the assembly engaged in service.
Because this is a high tensile replacement part for the truck-side kit, it suits repairs where the handle, threads or clamp action have worn, bent or seized. Keeping this part in good order matters because the clamping assembly must tighten cleanly, release cleanly and stay properly retained once the safety spring is in place.
Features
- Truck-side clamping bolt with handle for Bartlett 127mm 59DX couplings.
- High tensile clamp component for the ball and hood locking assembly.
- Works with the compression spring, cap, main bolt and safety spring in the truck kit.
- Suits replacement work where the clamp needs smooth tightening and clean release.
Specifications and Materials
This Bartlett clamping bolt with handle matches the 127mm Bartlett coupling 59DX and mounts on the truck side of the assembly. Part number: TC0515.
Compatibility and Fitment
Check the coupling size, the 59DX truck-side setup and the mating clamp components before ordering. Bartlett clamping bolt with handle suits the 127mm Bartlett coupling 59DX on the truck side.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. TC9515, 59/6, 596, 127060001
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Component of | 59DX | 127mm ball & truck kit |
| Spring to suit | 59/7 | compression spring |
| Cap to suit | 59/3 | cap |
| Main bolt to suit | 59/4 | main bolt |
| Locating ring | 59/8 | locating ring |
| Safety spring | 5-3/9 | safety spring |
Compliance and Safety
Inspect the bolt, handle, clamp threads and retaining pieces for wear, bending or damage before putting the coupling back into service. After fitting, clamp the assembly down fully, confirm the safety spring is seated and make sure the coupling closes and releases without binding.
Trailer Applications
Workshops fit this part when the truck-side clamp on a 127mm Bartlett ball coupling no longer tightens or releases as it should. It suits service work on pig and dog trailer towing setups that run the Bartlett 127 system and need the clamping assembly restored without changing the full coupling kit.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| TC9515 | 59/6 | 596 |
| 127060001 |
Why Choose ICS Trailers
ICS Trailers stocks coupling service parts that let you repair worn clamp hardware without replacing the full truck kit when the rest of the assembly still checks out. See more Tow Couplings
