Description

Overview

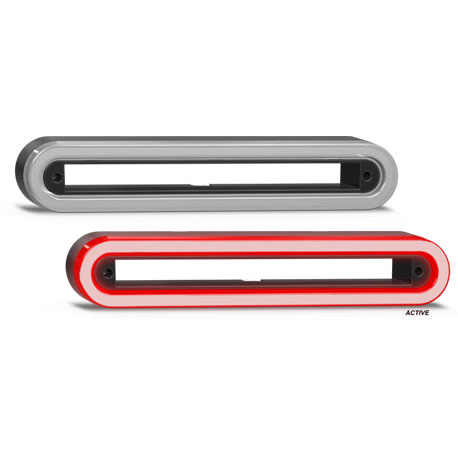

235 series tail lamp housing adds a diffused tail function and gives compatible 235 single lamps a clean surface-mount body for trailers and work vehicles. It lets the lamp sit on the outside face of the panel instead of into a recessed cut-out, so the finished install stays tidy and the tail function stays built into the housing.

This grey lens version runs on 12 Volt, carries IP67 sealing and uses a 40cm cable. It also suits jobs where the installer wants the slim 235 lamp style but needs a surface-mounted housing with screws supplied for straightforward mounting.

Features

• Grey lens housing with built-in diffused tail function.
• Fits compatible 235 series single lamps.
• Surface-mount screw-fix design for flat panel installs.
• 12 Volt, IP67 rated and backed by a 5 year warranty.

Specifications and Materials

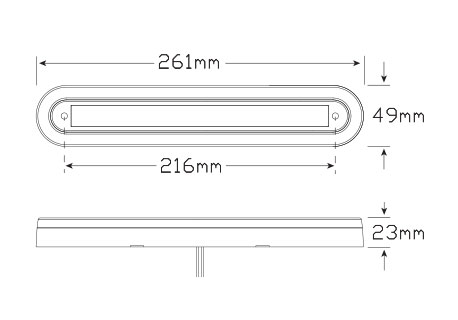

This housing uses a polycarbonate lens and polycarbonate base, measures 261mm x 49mm x 23mm, and runs with a 40cm cable on 12 Volt systems.

Part number: 235BTC-2.

official datasheet

Compatibility and Fitment

Match the housing size, the 216mm fixing span and the mounting position before ordering. This 235 series tail lamp housing mounts horizontally on a flat surface, and it suits compatible 235 single lamps where a surface-fitted tail housing is the right setup.

Run the wires through the rear entry, then secure the housing with the supplied screws. Check lamp choice and trailer lamp position before final fitment, especially where ADR 13/00 mounting guidance applies to the finished installation.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the housing horizontally on a flat surface, keep the rear wire path clear and confirm the lamp sits fully into the housing before the trailer goes back into service. Inspect the lens, base, screws and cable entry during routine checks, because cracked housings or loose fixings can let water in and compromise lamp performance.

Trailer Applications

Trailers use this 235 series tail lamp housing where the installer wants the narrow 235 lamp style without recessing the body panel. It suits rear lamp layouts on heavy trailers, service bodies and work vehicles where a surface-mounted tail housing gives the cleaner or more practical mounting option.

Why Choose ICS Trailers

ICS Trailers stocks lamp hardware that fits real trailer repair and replacement work, so you can match housings and lamps around the mounting style already on the job. See more LED Lights
