Description

Overview

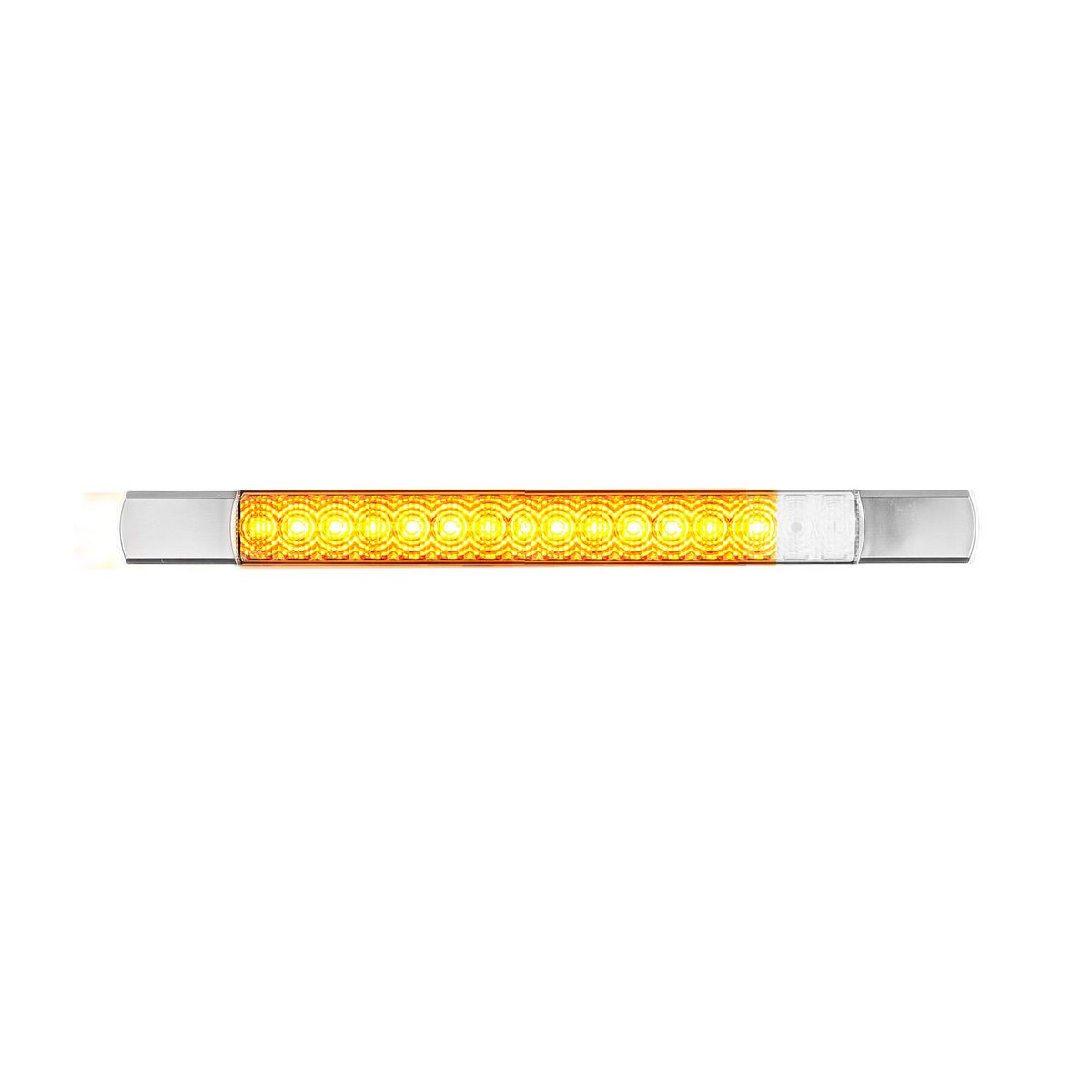

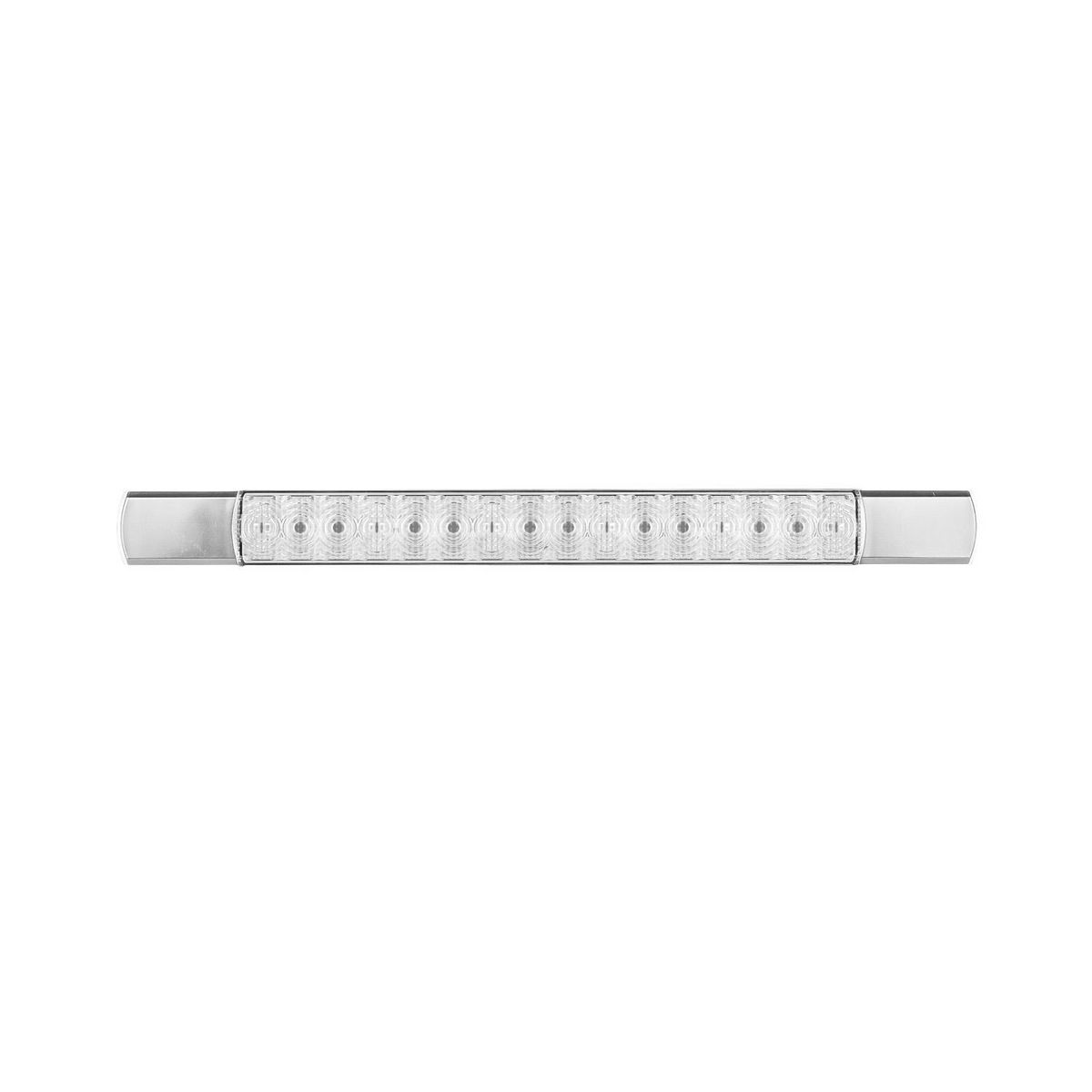

285 series rear indicator lamp gives trailers a slimline rear signal that stays low on the panel while still delivering a clear turn indication. The clear lens keeps the lamp tidy when it is off, and the chrome end caps help it suit cleaner trailer builds where a bulky rear indicator body would look out of place.

This 12 Volt lamp suits surface-mount installs where panel depth is tight or the job calls for a narrow strip lamp instead of a larger rear indicator housing. Because the body sits just 10mm deep, it helps keep the finished fitout neat on trailers, service bodies and other compact rear lamp layouts.

Features

• Rear indicator lamp with clear lens and chrome end caps.

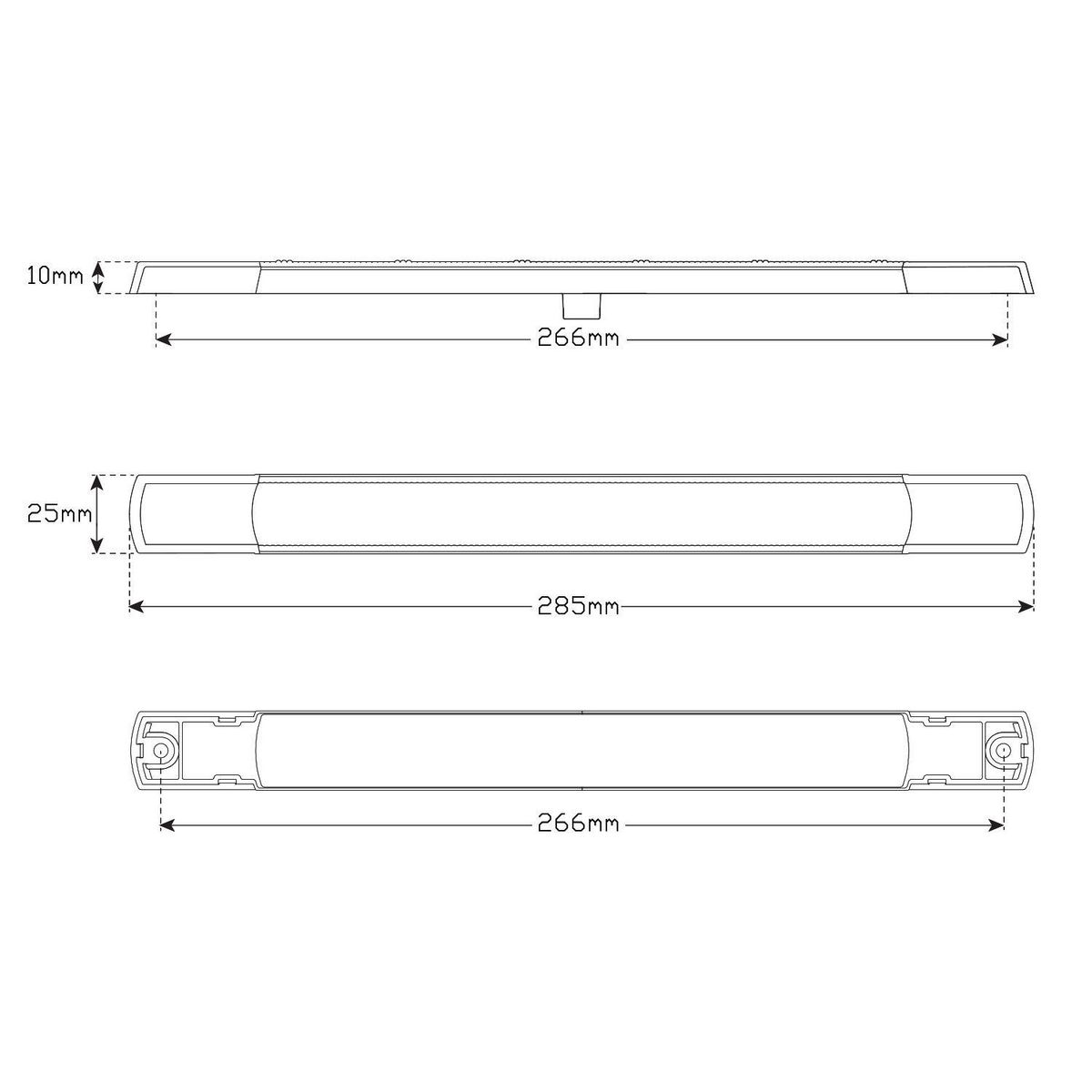

• Low profile 285mm x 25mm x 10mm body for slim surface mounting.
• 16 LED layout with 85mm cable and IP67 sealing.
• ECE approved rear indicator with horizontal or vertical mounting.

Specifications and Materials

This lamp uses 16 LEDs, an 85mm cable and a 285mm x 25mm x 10mm body for slim surface mounting on 12 Volt systems.

Part number: 285CA12.

official datasheet

Compatibility and Fitment

Check lamp length, mounting face and cable exit before ordering. The 285 series rear indicator lamp mounts to a flat surface after the end caps come off, then the screws fix through the body and the end caps clip back on.

Match the rear indicator function and the intended lamp position before final fitment. This lamp suits horizontal or vertical mounting, so it fits trailer layouts where a narrow low-profile rear indicator is the better choice.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the lens, end caps, mounting screws and cable entry during service, because loose caps or damaged seals can let water in and affect lamp performance. After fitting, confirm signal operation and check rear lamp position against ADR 13/00 mounting guidance before the trailer goes back into service.

Trailer Applications

Trailers use the 285 series rear indicator lamp on tail sections, side extensions and compact rear lamp layouts where space is tight but a full-length indicator strip is easier to see. It also suits replacement work when an existing slimline LED strip with chrome bezel needs the same rear indicator format.
