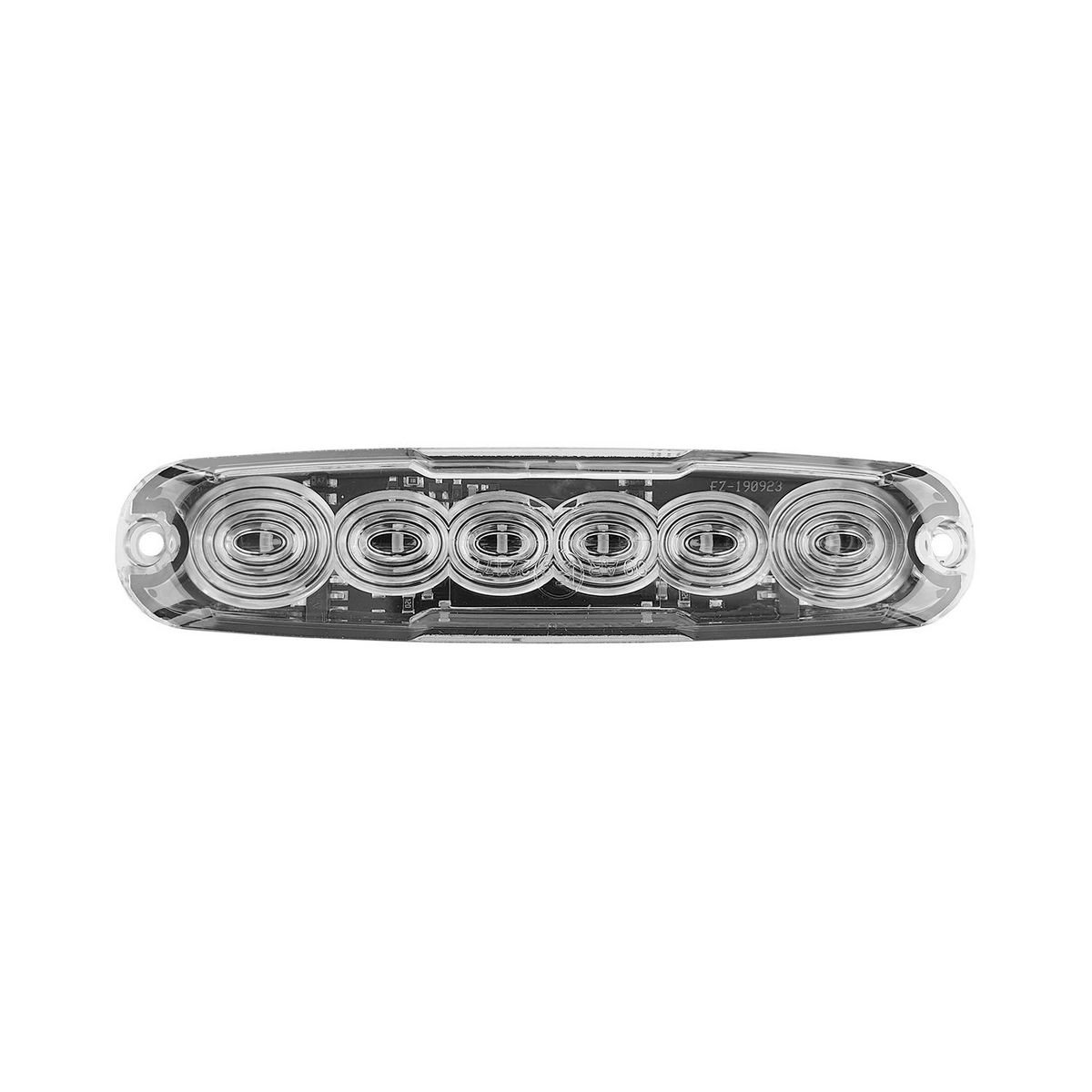

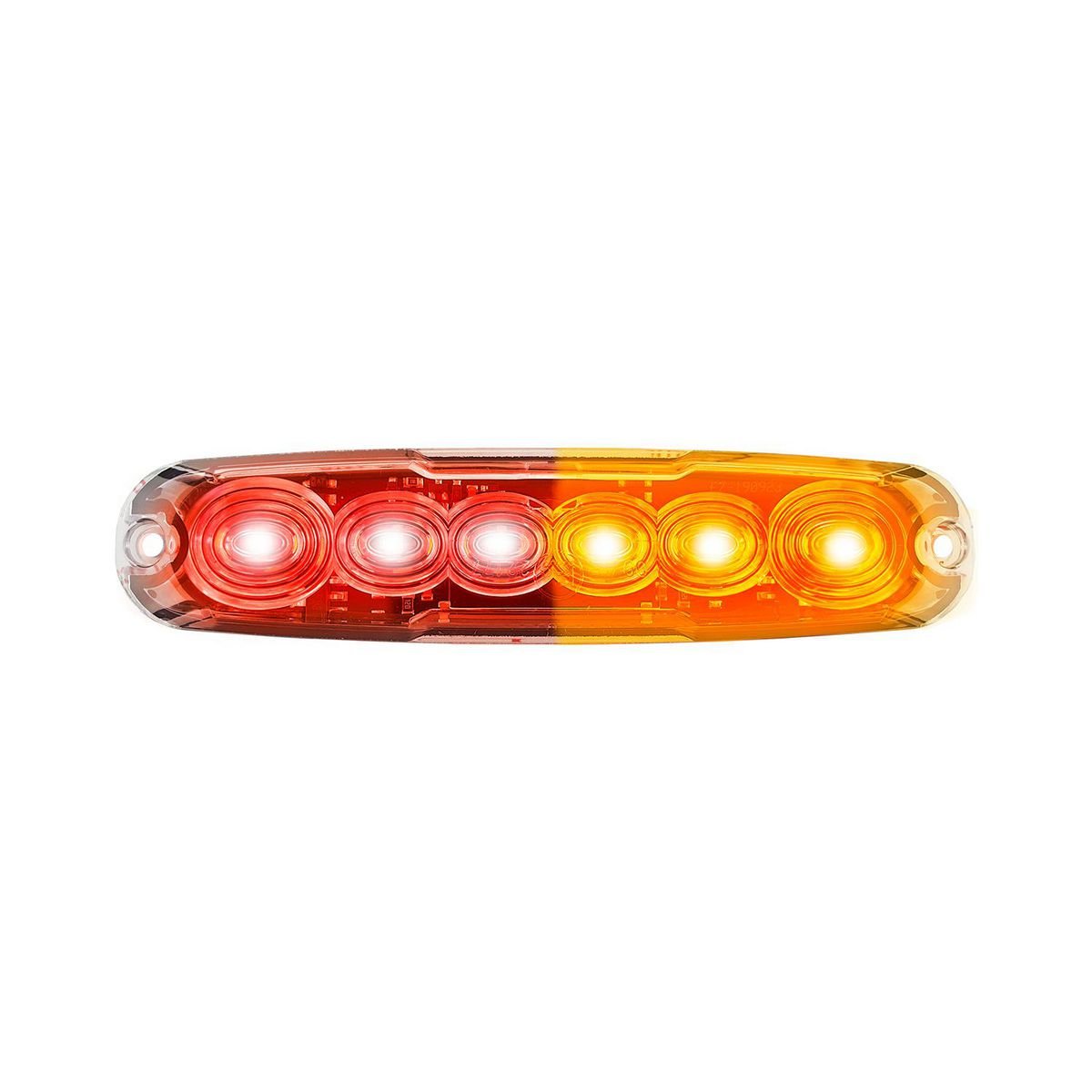

Clear lens stop tail indicator light keeps rear trailer lighting compact while still covering stop, tail and indicator functions in one low-profile fitting. The slim 8mm body helps when space is tight on rear bars, tailgates and fabricated panels, so it suits modern trailer builds as well as tidy repair work. Because the lens stays clear when inactive, the rear finish looks cleaner than older coloured-lens combinations.

Features

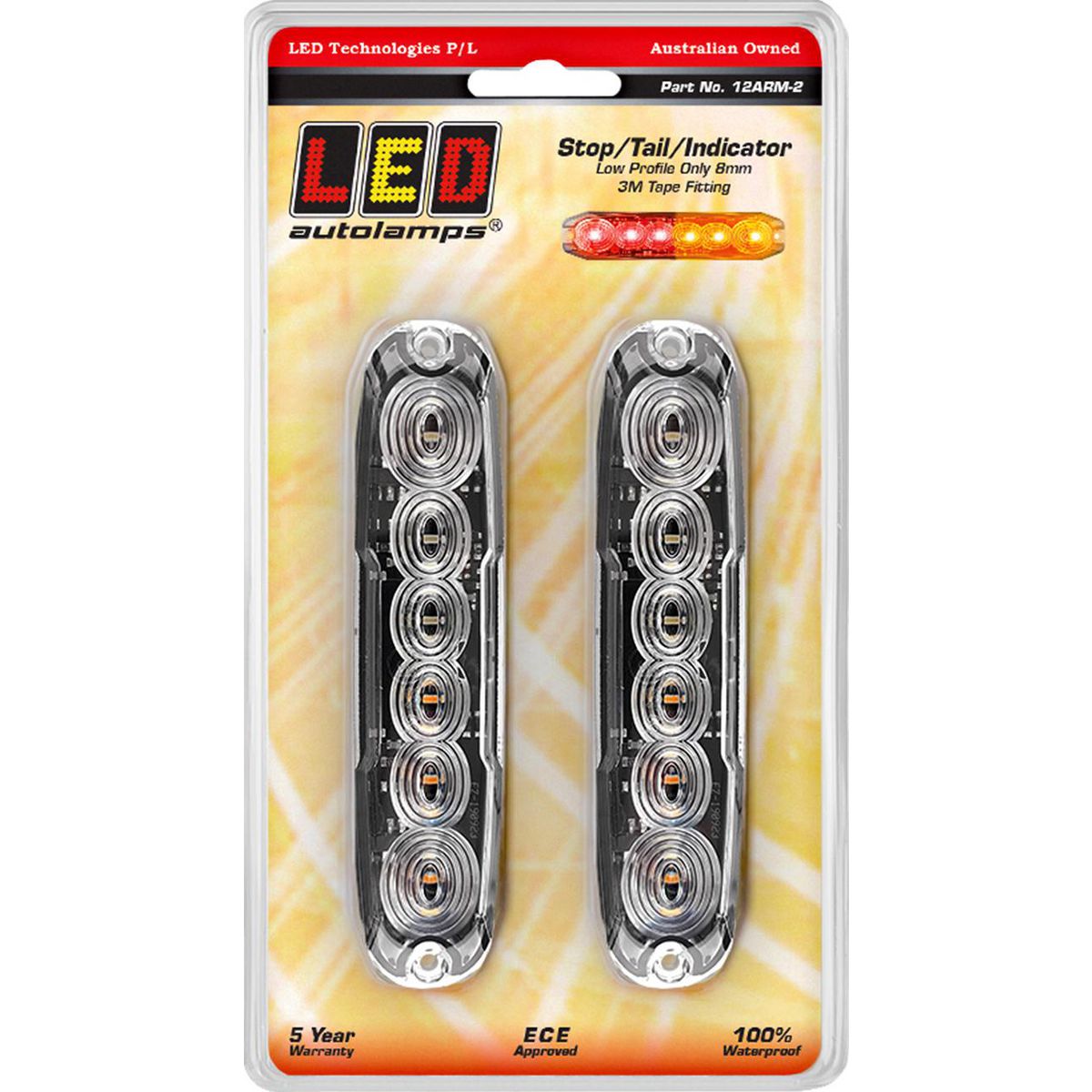

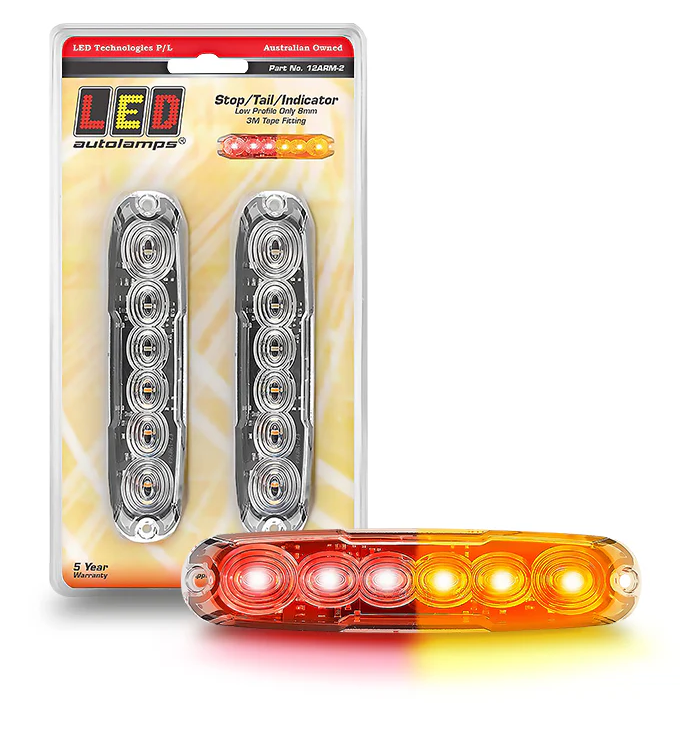

• Twin blister pack with stop, tail and indicator functions in each lamp
• Low-profile 8mm body for tight rear mounting positions
• 3M tape and screw fitting for flexible surface mounting
• IP67-rated sealing with horizontal or vertical fitment options

Specifications and Materials

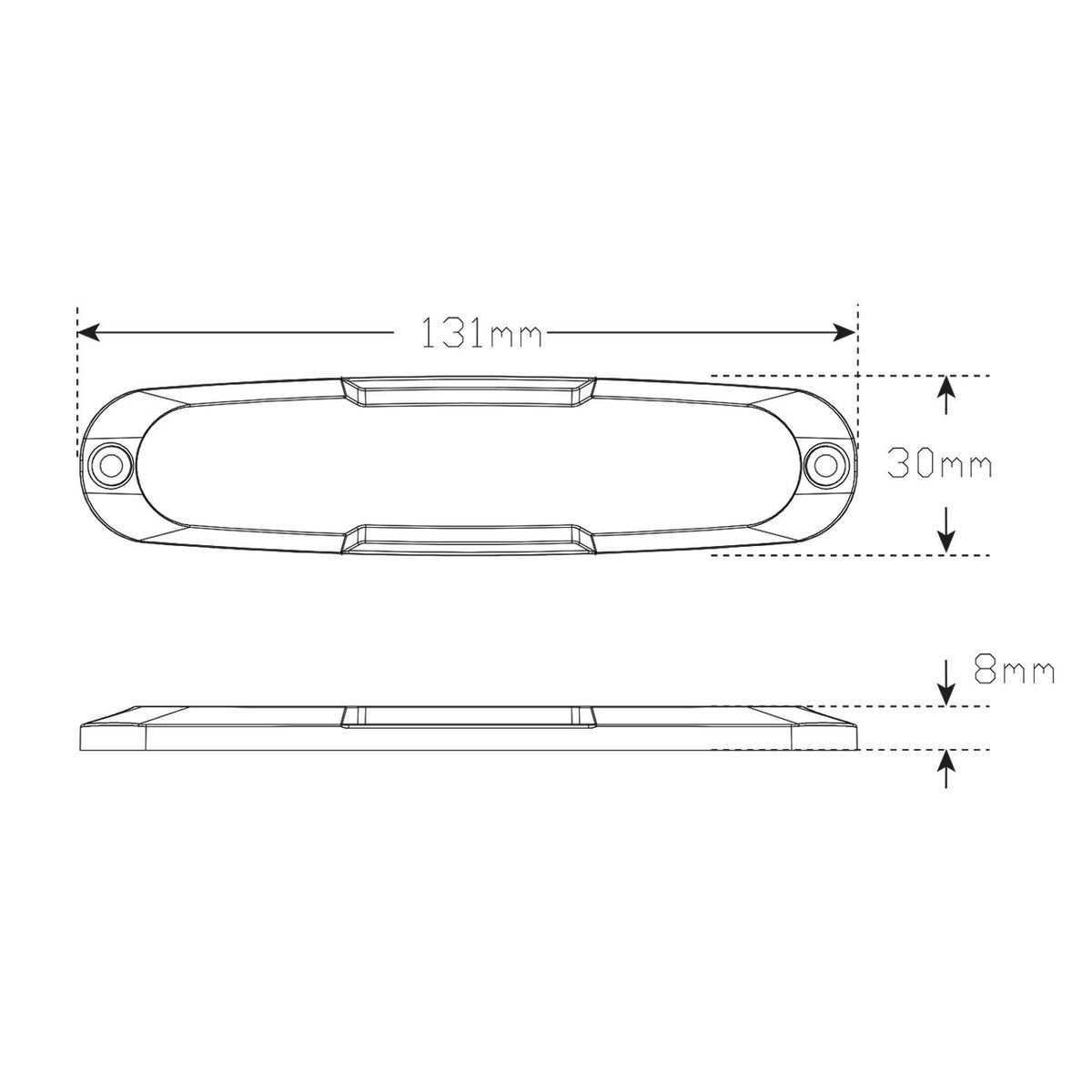

This clear lens stop tail indicator light measures 131mm x 30mm x 8mm and runs on 12-24V systems, so it suits a wide range of trailers and transport equipment. Each lamp uses 6 SMD LEDs, a 250mm cable and a polycarbonate lens on an aluminium base, which gives a light but sturdy assembly for exposed rear positions. Current draw stays low at 0.21A for stop, 0.03A for tail and 0.15A for indicator at both 13.8V and 28V. Part number: 12ARM-2. See the manufacturer technical guide

Compatibility and Fitment

Check the mounting space, voltage and cable path before ordering. This clear lens stop tail indicator light mounts horizontally or vertically, so it suits rear sections where bracket room is limited or lamp orientation needs to match the panel layout. It surface-mounts with 3M tape and or screws supplied, which helps on builds where drilling access varies from one side to the other.

Compliance and Safety

ECE approval covers the stop, tail and indicator functions, and the lamp is also listed as Australian road approved within the series. Follow ADR 13/00 mounting guidance during installation, then secure the cable away from rubbing points and sharp edges. Also make sure the mounting face is clean and flat, because the tape and seal both rely on good panel contact.

Trailer Applications

Workshops fit this clear lens stop tail indicator light on trailers, service bodies and transport builds that need a compact rear combination lamp without a bulky housing. It also suits repair work where an older lamp has cracked, leaked or dated the rear finish and a low-profile replacement keeps the job neat. Because this SKU is a twin blister, left and right replacements stay matched in shape and output.

Why Choose ICS Trailers

ICS Trailers supplies lighting parts for trailer repair and retrofit work, so this lamp sits naturally alongside the wiring and mounting items often needed during rear-end electrical jobs. Browse LED Lights at ICS Trailers
