Description

Overview

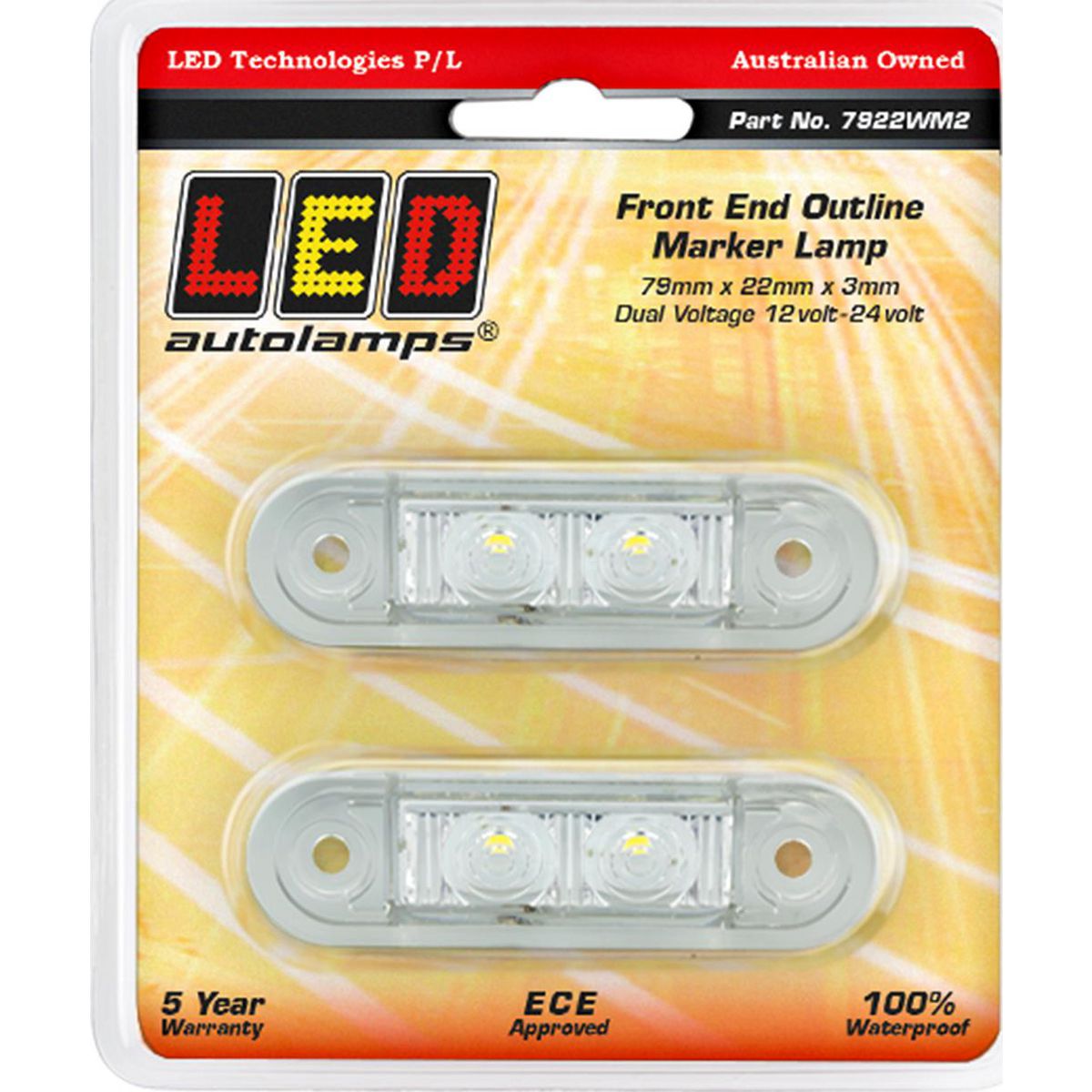

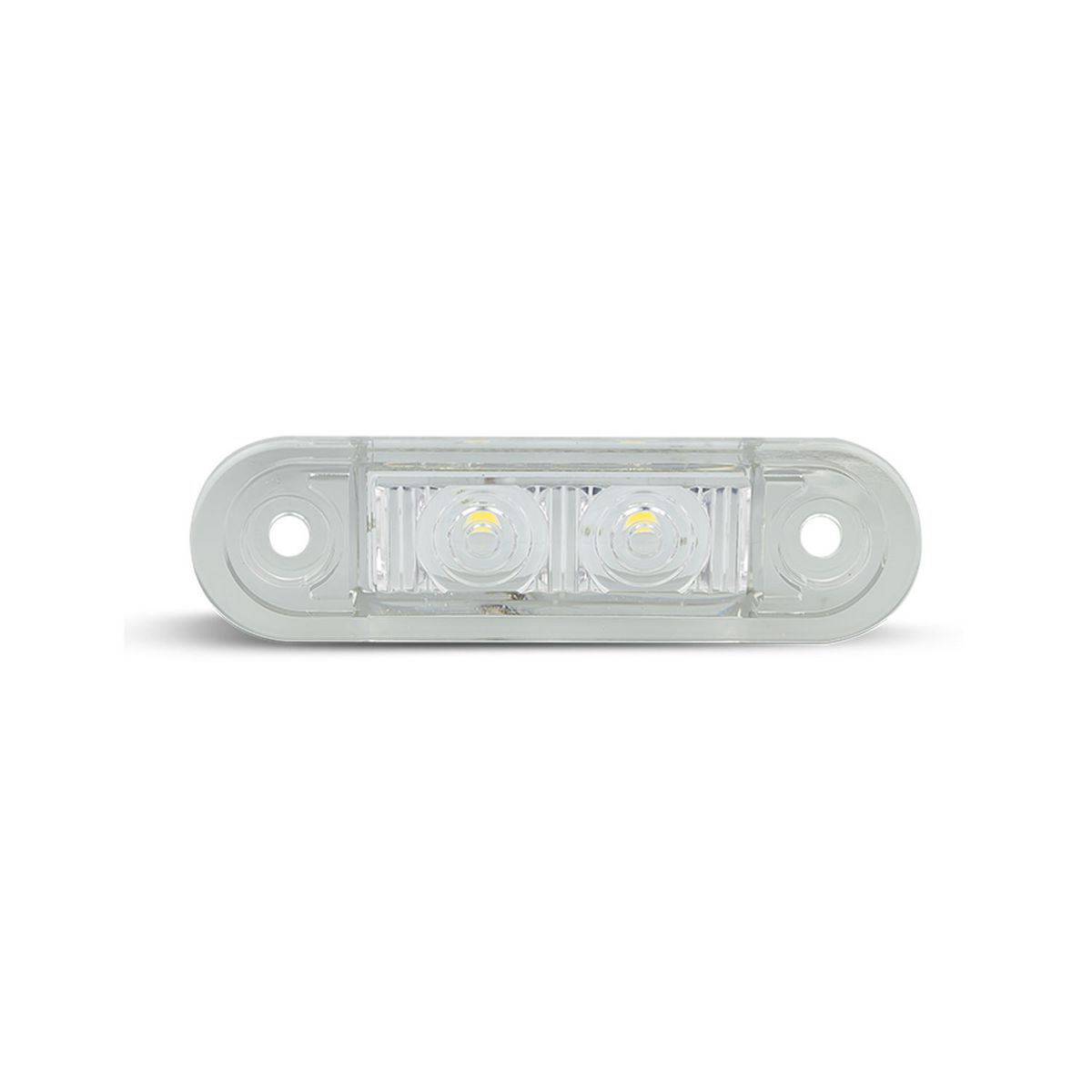

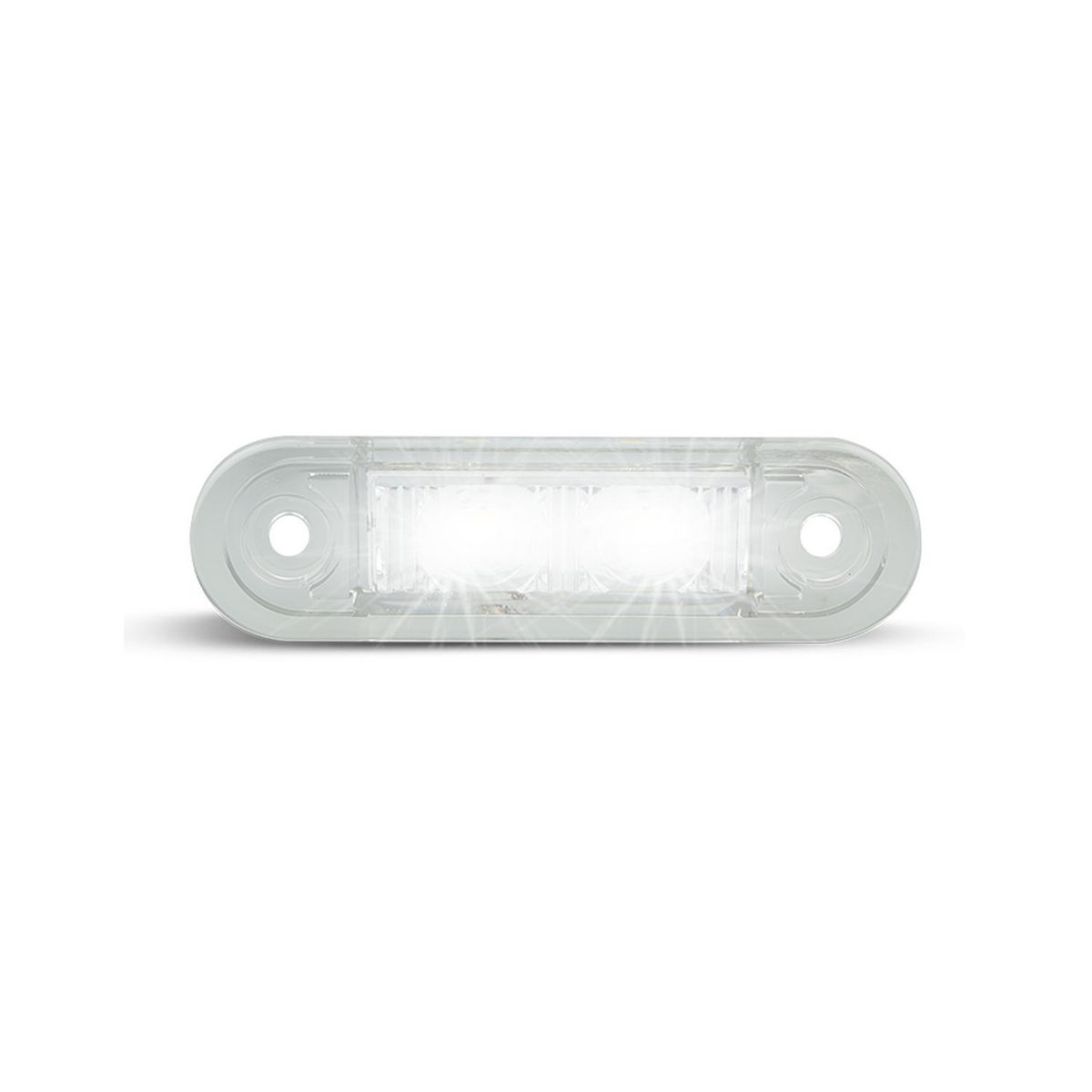

Front end outline marker lamp restores front-position visibility on 12V and 24V trailer and heavy vehicle lighting systems. This recessed white LED marker suits flat-panel mounting where a compact lamp face keeps the installation tidy and low profile. The twin blister format includes two lamps, so it suits paired front outline marker replacement during workshop refits.

Features

• Low 3mm profile for neat recessed mounting.
• Runs on 12V and 24V electrical systems.
• IP67 rated protection helps seal the lamp against road water and dust.
• 20cm cable supports straightforward wiring through the mounting panel.

Specifications and Materials

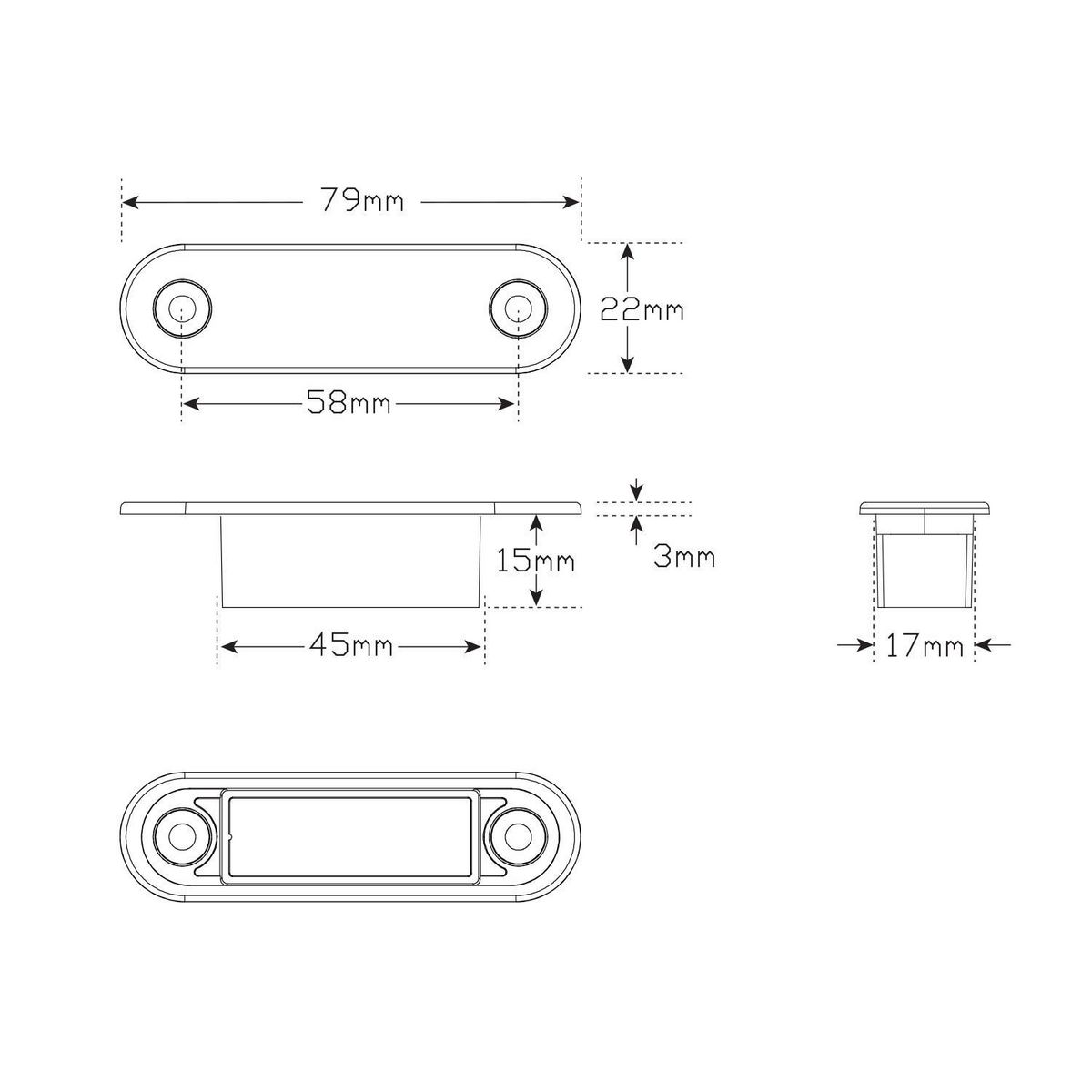

The front end outline marker lamp measures 79mm x 22mm x 3mm and uses a polycarbonate lens. Each lamp carries two LEDs, with current draw rated at 0.03A to 0.05A at both 13.8V and 28V. Part number: 7922WM2. The cutout size measures 45mm x 17mm, so check the mounting surface before drilling or trimming. For manufacturer specifications, see the LED Autolamps 7922 Series technical page

Compatibility and Fitment

Match this lamp to the front end outline marker position, white lens requirement, 12/24V supply and 45mm x 17mm recessed cutout before ordering. Also check that the panel gives enough rear clearance for the cable and lamp body. If replacing an existing marker, compare the old lamp size, wire exit and screw position before final fitment.

Compliance and Safety

This front end outline marker lamp carries ECE front end approval AM-E9-02.16554 and CTA front end approval 49/00 CTA-060117. Mount the lamps in the correct front-facing position and follow ADR 13/00 mounting guidance for road use. After fitting, seal cable entries properly, tighten the fixings evenly and test both lamps before the trailer returns to service.

Trailer Applications

Workshops fit these lamps to trailers and heavy vehicles that need compact front outline lighting without a bulky surface-mounted body. The slim face suits panels where clearance, appearance and weather sealing matter. Fleets also use this style when standardising 12/24V marker lamps across mixed equipment.
