Description

Overview

12/24V stop tail lamp delivers clear rear stop and tail lighting for trailers, plant bodies, and equipment that need a compact square surface-mount lamp. It suits replacement work where you want a sealed LED unit with a replaceable lens and straightforward rear cable entry. Because the housing stays compact at 100mm square, this lamp fits neatly into common trailer rear-light layouts without stepping up to a larger combination lamp.

Features

• 36 LED stop and tail lamp for clear rear signalling
• Clip-in replaceable lens for simpler service work
• IP67 waterproof construction for exposed trailer use
• 40cm pre-wired cable with 12-24V multivolt operation

Specifications and Materials

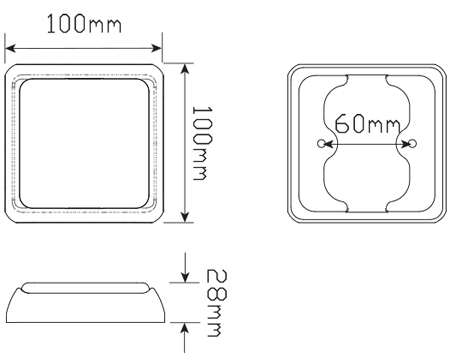

This lamp measures 100mm x 100mm x 28mm and mounts on a surface bracket with 60mm mounting centres. It runs on 12-24V systems, uses 36 LEDs, and carries a 40cm cable for direct wiring. The lens uses PMMA and the bracket uses ABS, so the unit stays light while still handling regular trailer service conditions. Current draw measures 0.33A for stop and 0.06A for tail at 13.8V, then 0.25A for stop and 0.04A for tail at 28V. It also carries ADR approval for stop/tail function under category 49/00 with CRN 33059. Part number: 80RM. For technical data, see the official 80 Series specification sheet

Compatibility and Fitment

Check the lamp size, mounting centres, system voltage, and stop/tail function before ordering. This lamp mounts to a surface bracket, runs its wires through the back, and then clips the lens into place, so it suits trailer builds and repairs that need a square stop/tail lamp rather than a larger multi-function light. If you are replacing an existing unit, compare housing size, cable entry, and mounting style first.

Compliance and Safety

Follow ADR 13/00 mounting instructions, then confirm the lamp sits securely and remains clearly visible in the required rear position. Because the wiring runs through the back of the bracket, protect the cable path from rub points and test both stop and tail circuits before the trailer returns to service.

Trailer Applications

Workshops fit this 12/24V stop tail lamp to trailers and equipment where a square surface-mount rear lamp suits the lighting layout. It also suits repair jobs where you want a tidy housing, low-maintenance LED output, and a lens that clips in without replacing the whole lamp body. When an older rear lamp has faded, cracked, or filled with water, this unit gives you a clean replacement with the same compact footprint.
