Description

Overview

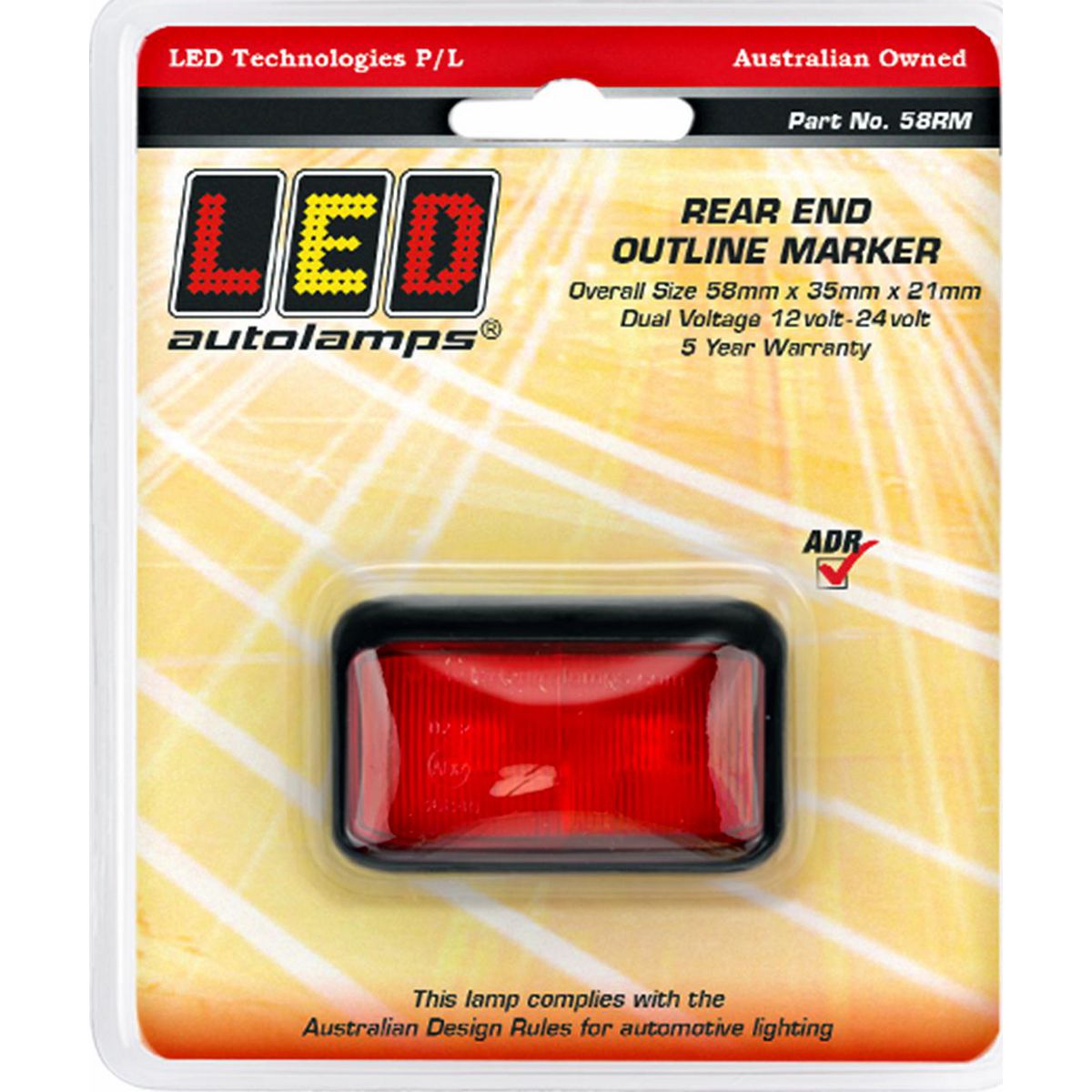

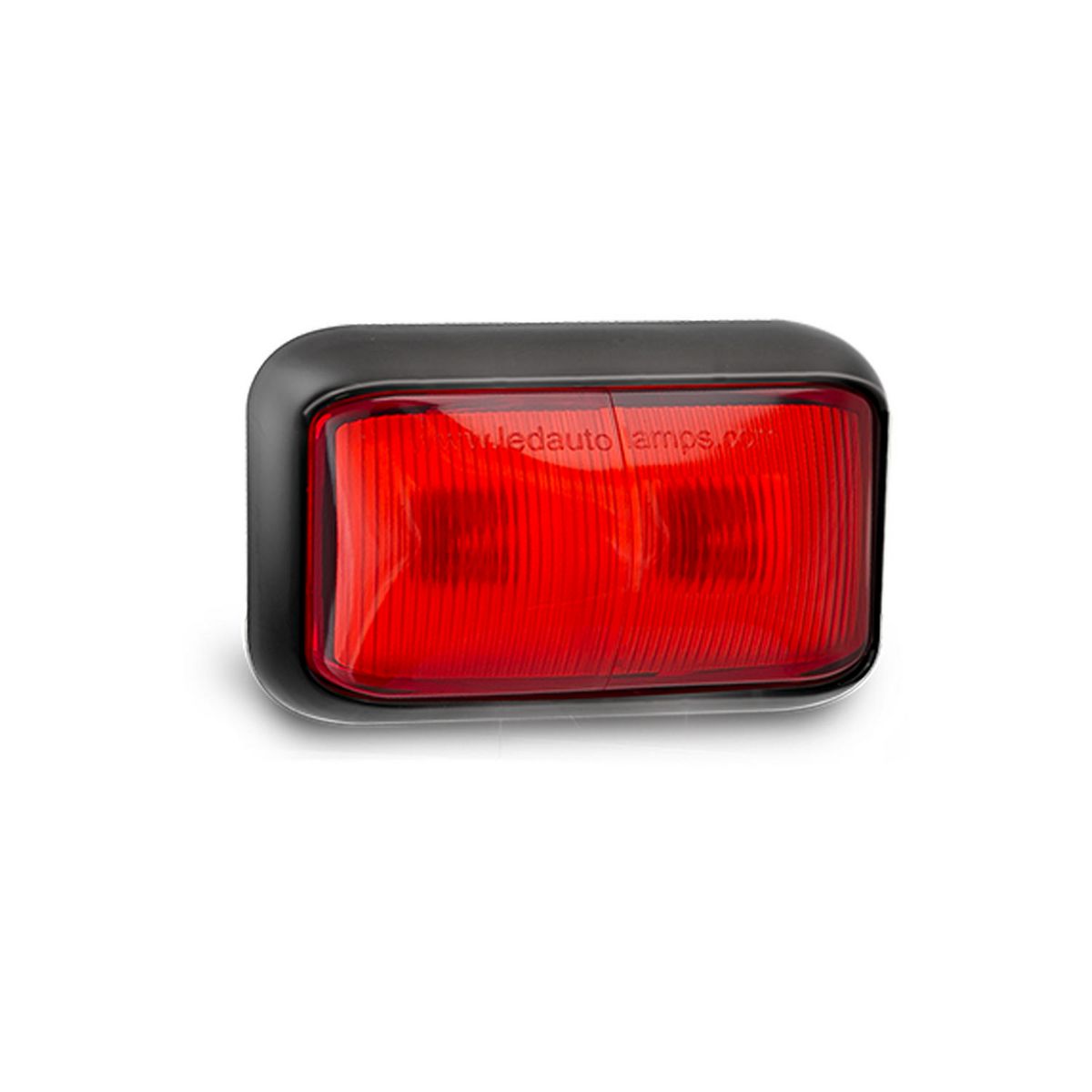

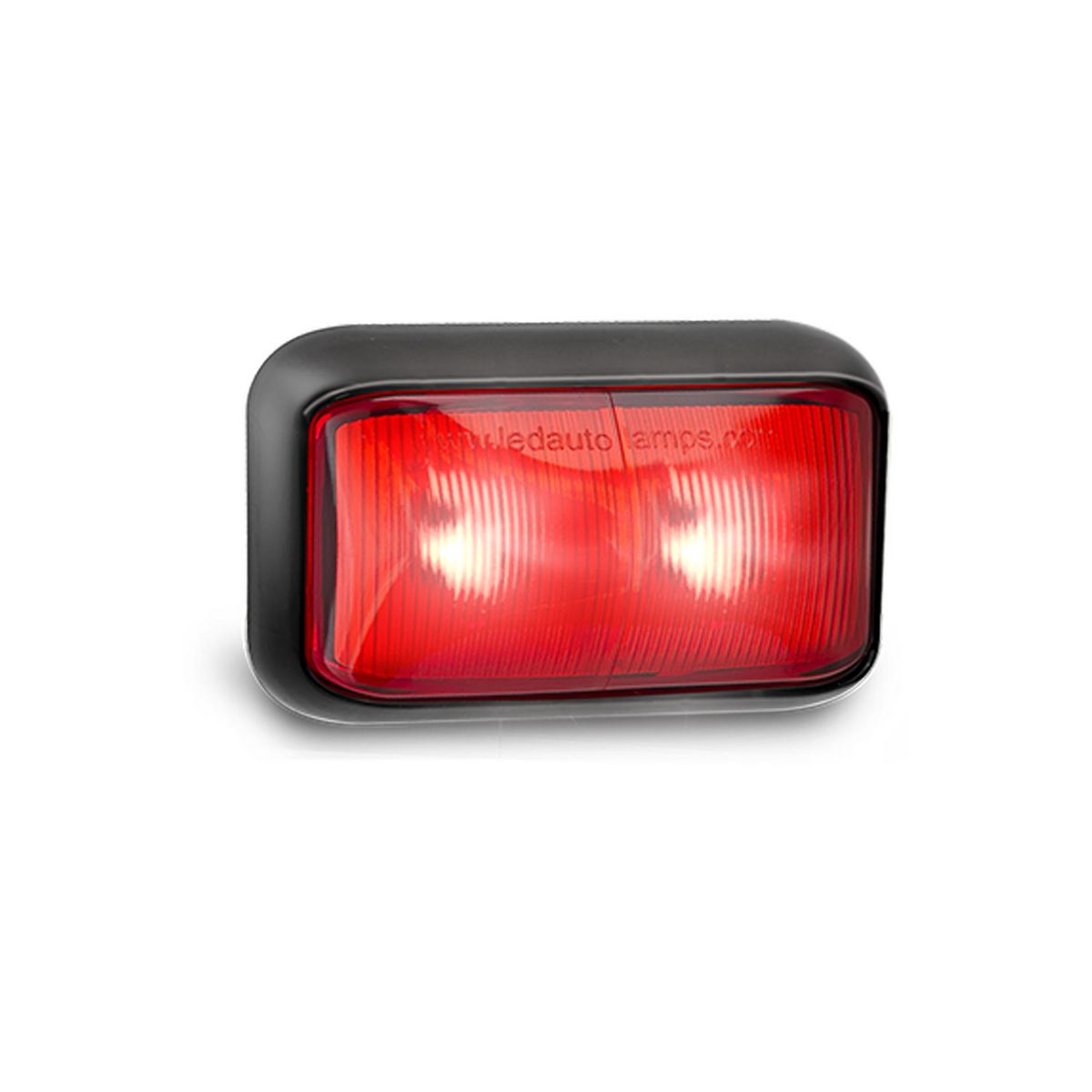

The rear end outline marker lamp restores a compact red marker light for trailer rear outline positioning on 12-24V systems. It suits low-profile surface mounting where the lens needs to stay serviceable after installation. The clip-in replaceable lens also helps workshops service damaged lenses without changing the whole bracket.

Features

• 2 LED red rear end outline marker function
• Low-profile 58 Series body with clip-in replaceable lens
• 12-24V operating range for mixed trailer fleets
• IP67 rated body with 5 year warranty

Specifications and Materials

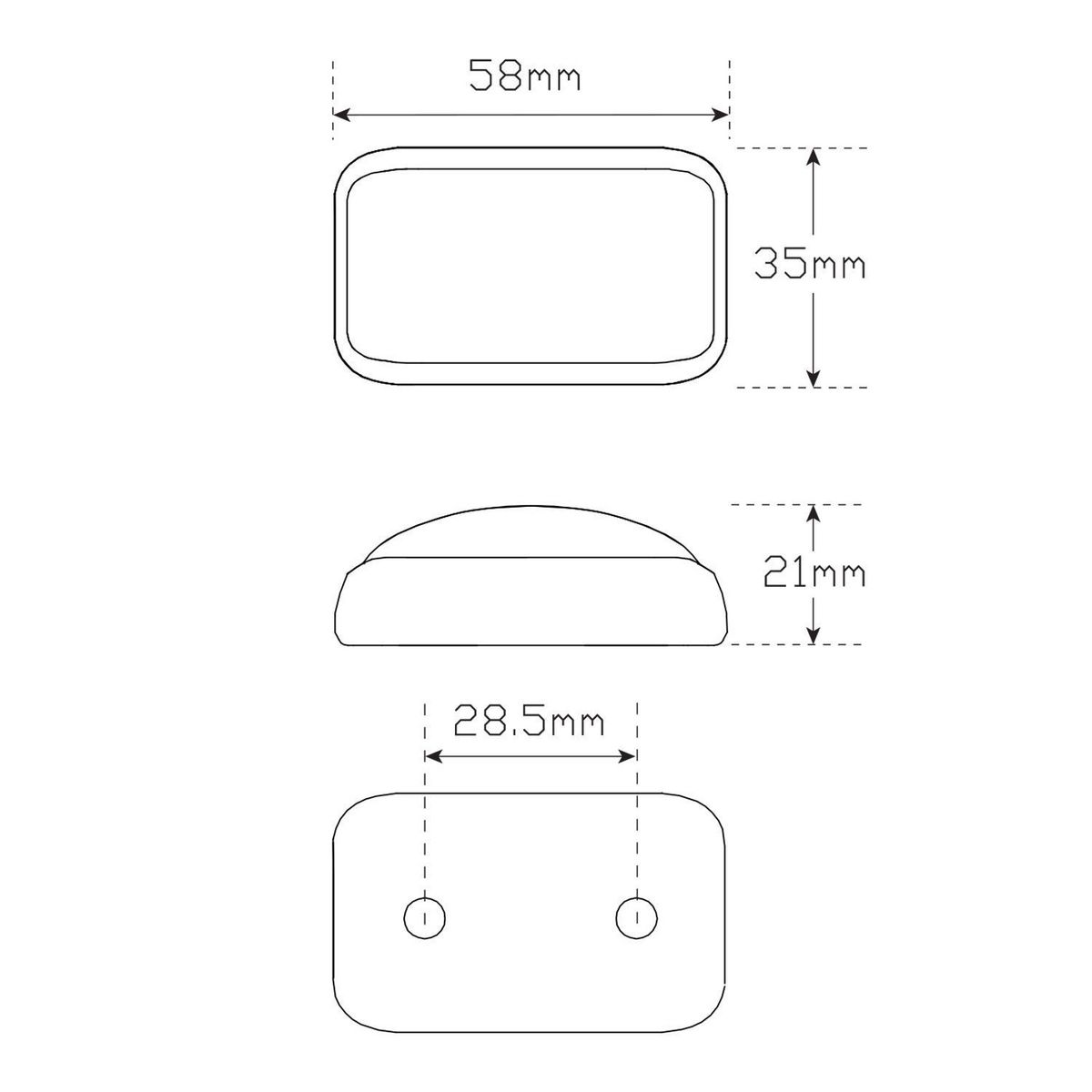

This marker lamp measures 58mm x 35mm x 21mm and uses a hardened acrylic lens with an ABS base. It runs bare wires through the rear of the surface mount bracket, with a 40cm cable on this blister single variant. Part number: 58RM. See the official 58 Series manufacturer information for product-family details. The rear end outline marker lamp draws 0.12A at 13.8V and 0.04A at 28V.

Compatibility and Fitment

Match the red rear end outline function, mounting footprint, voltage range and wiring style before ordering this lamp. It belongs on rear outline marker positions rather than amber side marker or white front marker positions, so check the existing lens colour and lamp function before replacement. If your trailer uses the heavy-duty harness version, choose the matching plug variant instead of the bare-wire unit.

Compliance and Safety

The lamp carries ADR rear end approval for rear marker use. Before energising the circuit, confirm polarity, cable routing and the mounting surface. Also, replace damaged lenses promptly because cracked marker lenses can reduce rear outline visibility and let water reach the lamp body.

Trailer Applications

Trailer workshops fit this compact red marker where a low-profile rear outline lamp suits the body edge, tray, van body or equipment trailer rear corner. Because it runs 12-24V, fleets can use the rear end outline marker lamp across mixed light and heavy trailer applications without a separate voltage-specific lamp.

Videos

This official 58 Series video shows the marker lamp family and the available lens and housing styles.
