Description

Overview

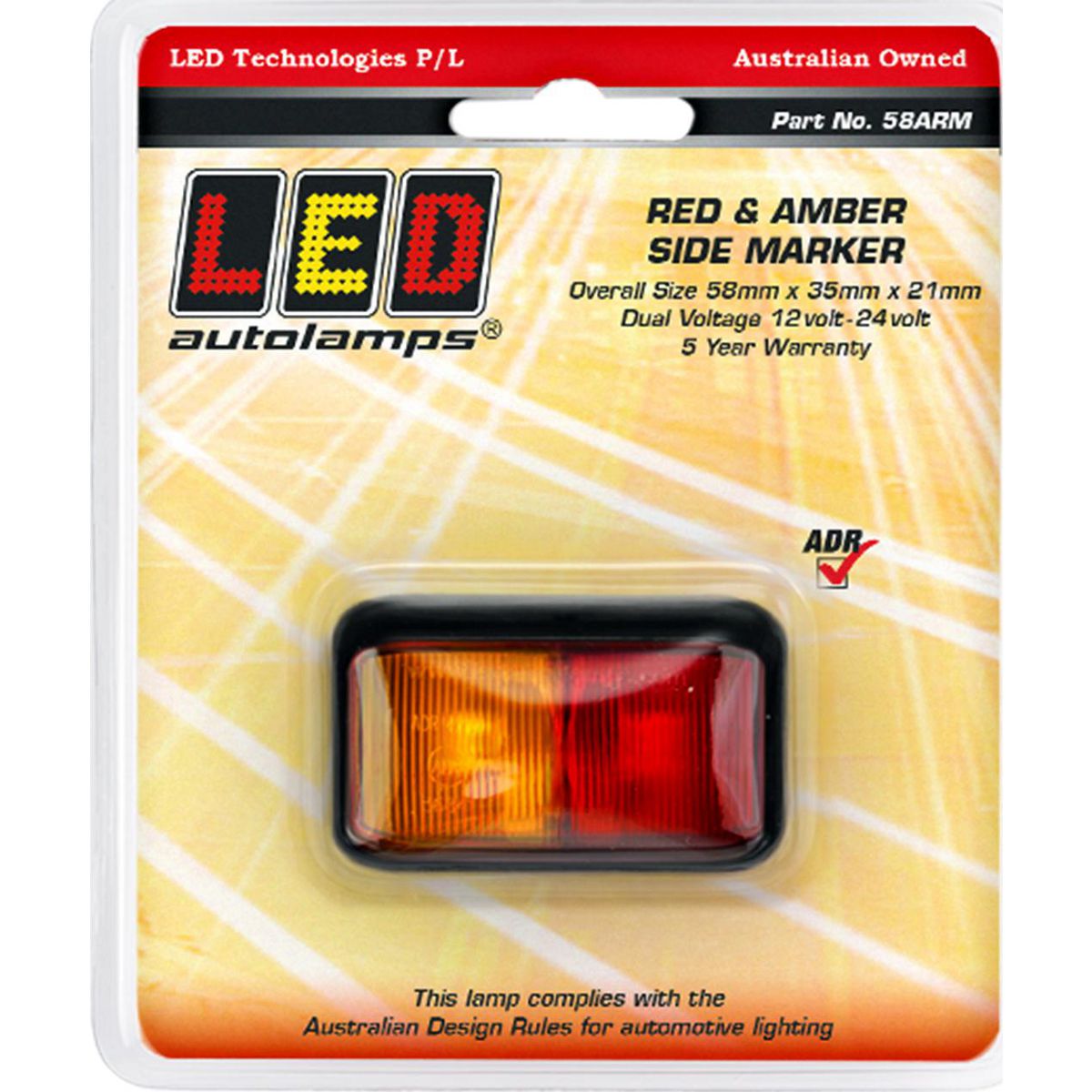

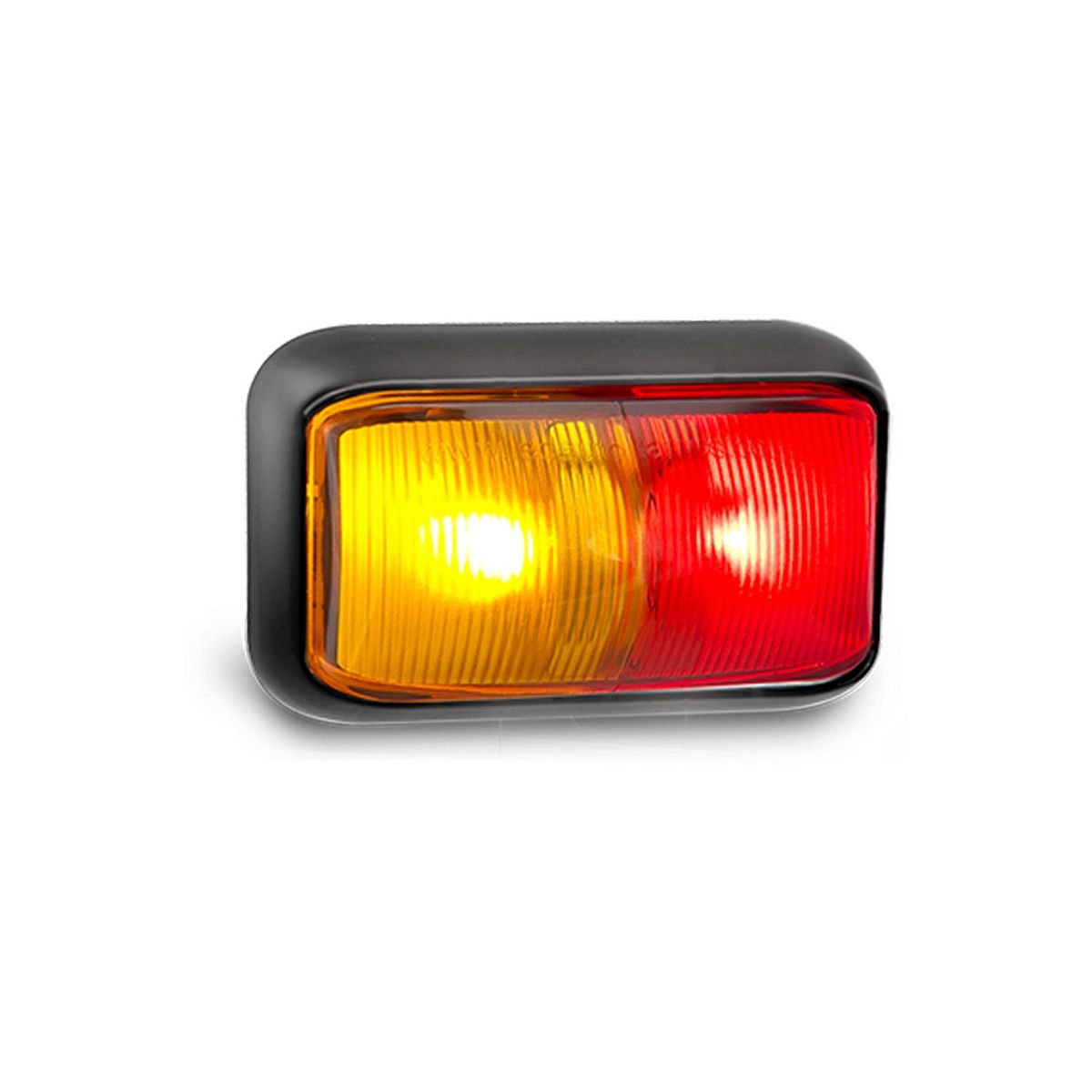

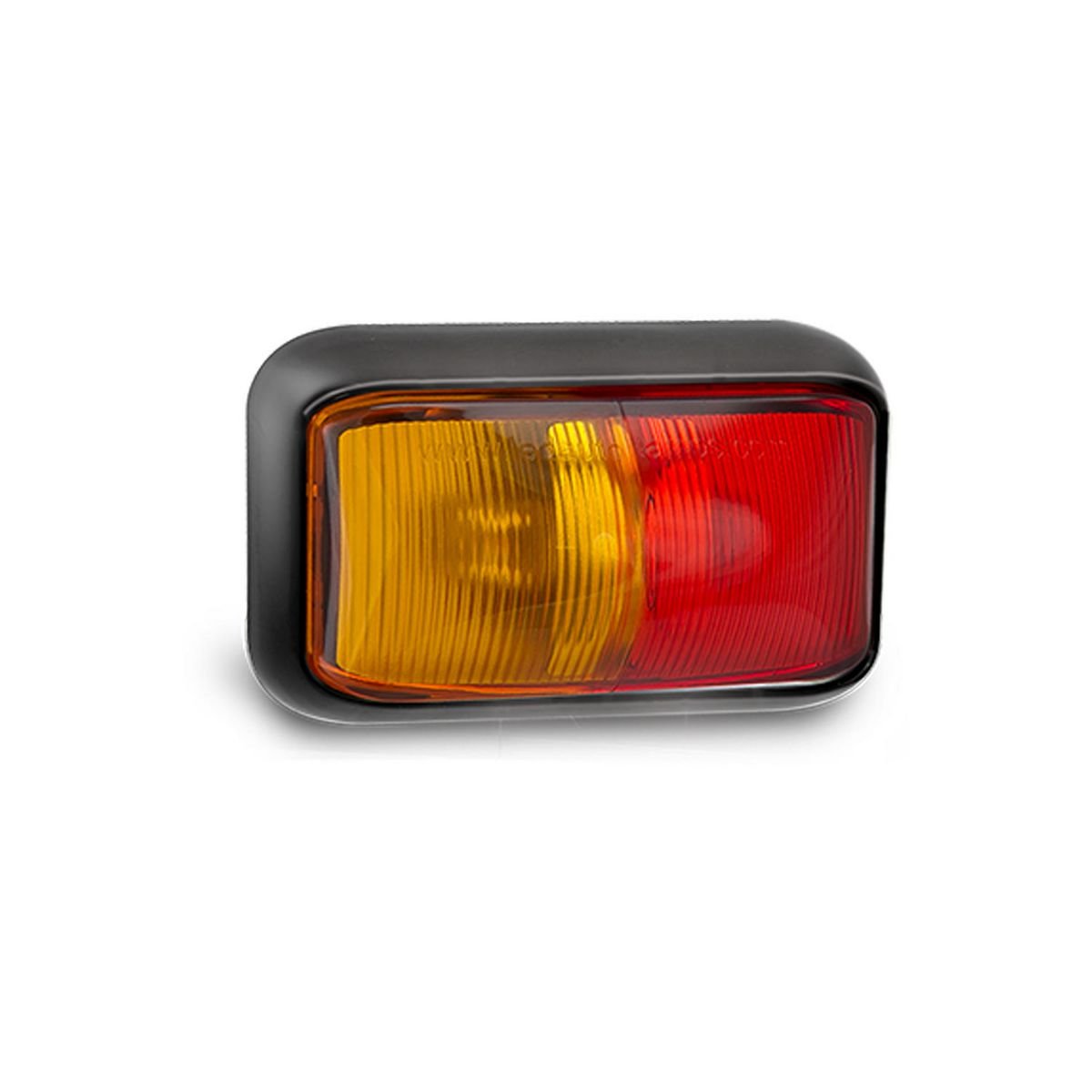

Red amber side marker lamp keeps trailer and truck side lighting visible in a compact low-profile housing that suits tight mounting positions. The split lens gives you red and amber side marker coverage in one small fitting, so it works well where space is limited on guards, chassis rails and body sides. Because the lamp runs on 12-24V systems, it suits both trailer repairs and fresh builds that need a straightforward multivolt marker light.

Features

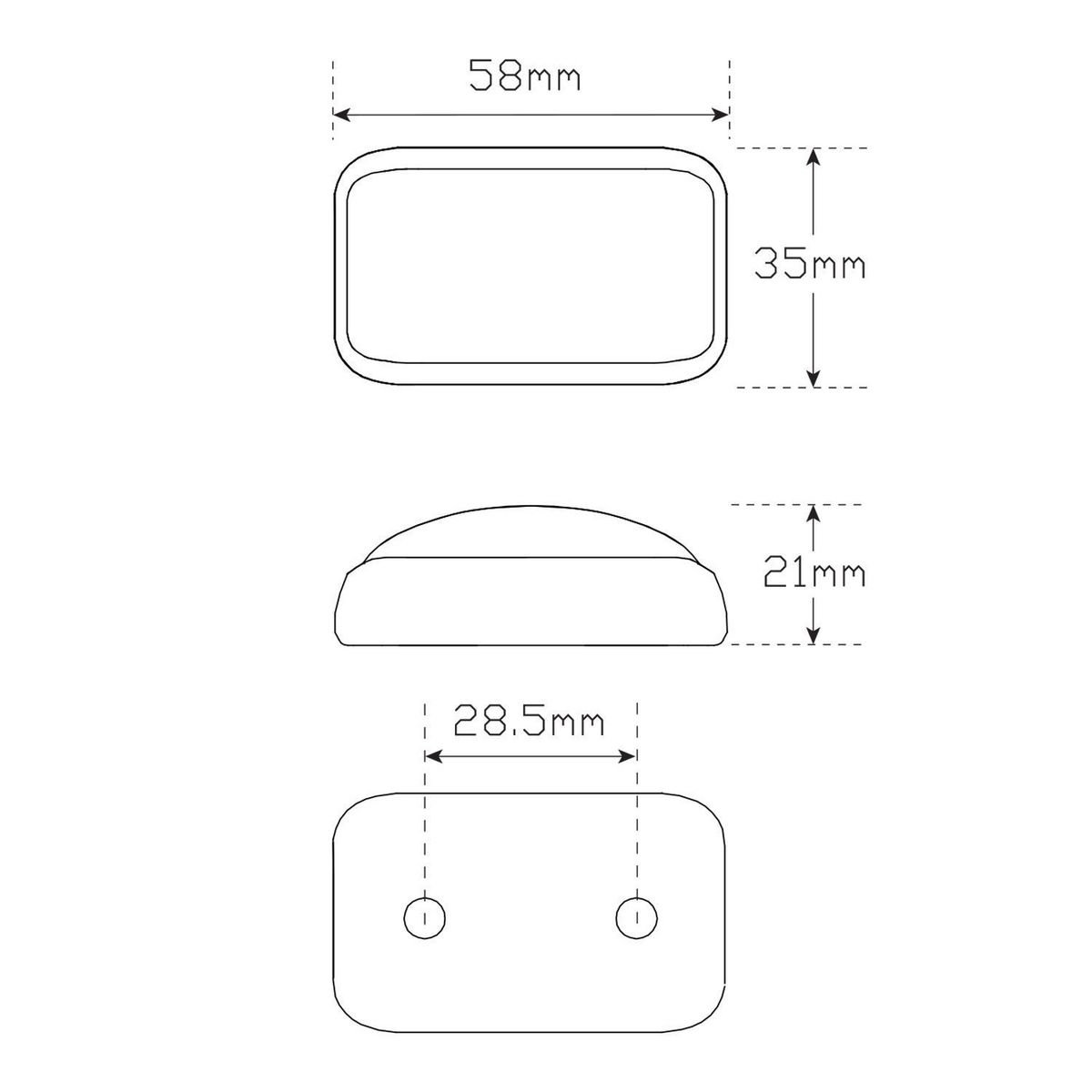

• Black housing with compact 58mm x 35mm x 21mm footprint
• 2 LED design with low current draw
• Clip-in replaceable lens for easier service work
• IP67-rated sealing with 40cm cable lead

Specifications and Materials

This red amber side marker lamp uses a hardened acrylic lens on an ABS base, and it mounts with a surface bracket for a neat low-profile finish. It runs on 12-24V, draws 0.10A at 13.8V and 0.04A at 28V, and the 40cm cable gives enough length for common trailer wiring runs. The black housing helps separate it from the chrome version in the same series, so it is easier to match the right style before ordering. Part number: 58ARM. See the official 58 Series data sheet for mounting layout and series specifications

Compatibility and Fitment

Match the housing colour, overall size and cable style before ordering. This red amber side marker lamp suits surface-mounted side marker positions where a compact body and rear cable entry matter, especially on trailers, caravans and transport equipment with limited room around the bracket area. Check the bracket position first, then run the wires through the back and clip the lens into place for a tidy finish.

Compliance and Safety

ADR approval covers the side marker function under category 45/01, and the lamp also carries CTA approval for the same function. Follow ADR 13/00 mounting guidance when positioning the lamp, because marker placement matters as much as the lamp choice itself. Inspect the bracket face, wiring path and sealing area during fitment so the lamp stays protected from water and vibration.

Trailer Applications

Workshops fit this red amber side marker lamp on trailers, caravans, service bodies and heavy vehicle equipment that need a compact side marker with separate red and amber sections. It also suits repair jobs where an older low-profile marker has cracked, leaked or faded and a like-for-like shape keeps the replacement simple. The small footprint helps when guards, rails or side panels leave very little mounting room.

Why Choose ICS Trailers

ICS Trailers supplies lighting parts that often get replaced during trailer electrical repairs, so this lamp fits naturally into service jobs that also need wiring, plugs or related hardware. Browse more LED Lights at ICS Trailers
