Description

Overview

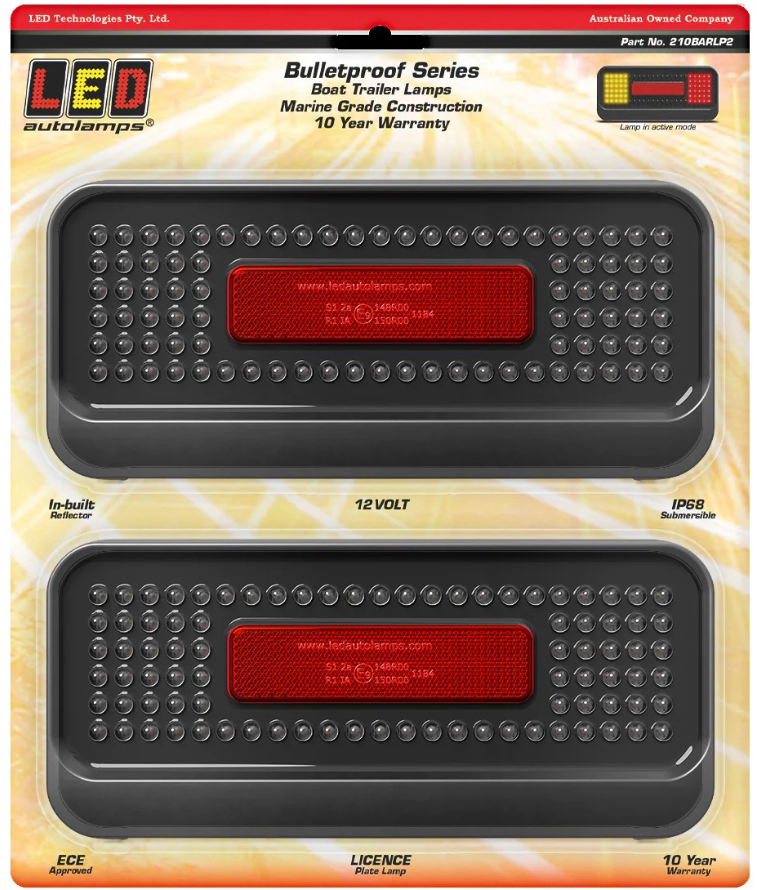

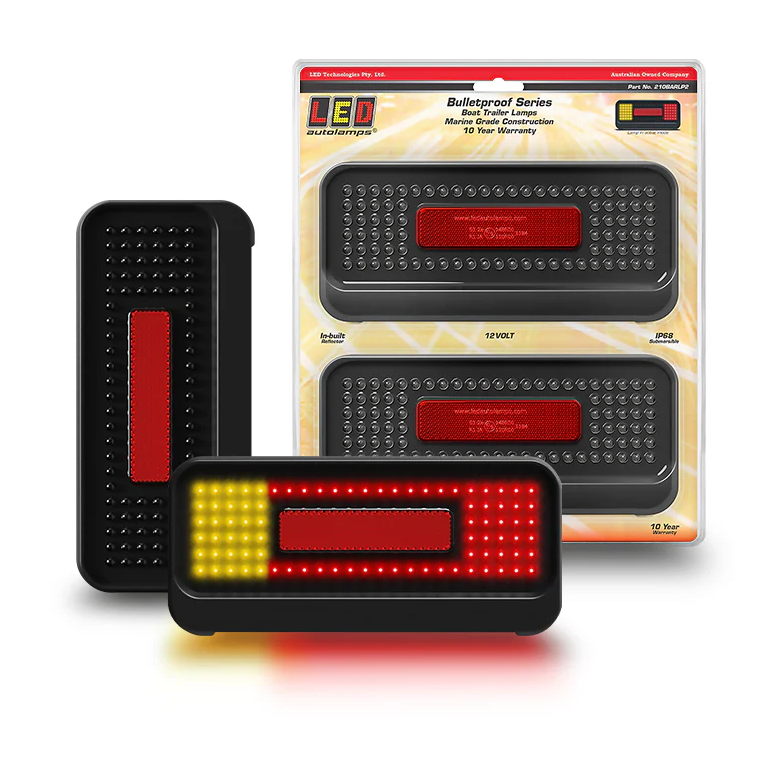

Combination LED boat trailer lamp handles stop, tail, indicator, licence plate and reflector functions in one compact rear lamp set for 12V trailers. The 210 Series lens-free face keeps the lamp low profile, while the built-in licence plate light reduces the number of separate rear lighting parts. Because the pair includes left and right side lamps with 400mm cables, it suits straightforward rear trailer lighting repairs and new fit-outs.

Features

• Stop, tail, indicator, licence plate and reflector functions in the same rear lamp pair.
• IP68 rating and fully submersible construction suit boat trailers and wet trailer environments.
• Lens-free design removes separate outer lenses from the exposed rear face.
• Stainless steel fittings support flat horizontal surface mounting.

Specifications and Materials

The combination LED boat trailer lamp measures 210mm × 96mm × 24mm per lamp and runs on 12V only. The 210 Series LED layout uses 26 tail LEDs, 30 stop LEDs, 30 indicator LEDs and 8 licence plate LEDs. At 13.5V, current draw measures 0.17A stop, 0.09A tail and 0.12A indicator. The base uses polycarbonate, and the fittings use stainless steel. Part number: 210BARLP2. See the official LED Autolamps datasheet for series electrical ratings, approvals and mounting details.

Compatibility and Fitment

Match this 12V twin pack to trailers needing rear stop, tail, indicator, licence plate and reflector functions from the 210 Series. Check the existing cable length, mounting face and rear lighting layout before ordering, because this version uses 400mm cable rather than the longer cable variant. For installation, mount the lamps horizontally on a flat surface and run cable through a 12mm hole.

Compliance and Safety

ECE approvals cover stop/tail, indicator, licence and reflector functions, and CTA approval covers stop/tail/indicator/licence/reflector use. Refer to ADR 13/00 for placement and mounting requirements, then test every lighting function before road use. Seal cable entries cleanly if the trailer sees water, salt or frequent washdowns.

Trailer Applications

Boat trailers, plant trailers, service trailers and general 12V trailers use this style of rear combination lighting when space favours one compact lamp per side. Workshops fit a combination LED boat trailer lamp twin pack when they want fewer separate housings and a cleaner rear lighting layout.

Why Choose ICS Trailers

ICS Trailers can match this lamp with wiring, plugs, marker lights and other rear lighting parts for trailer electrical repairs. If you are rebuilding a rear light board, compare the lamp size, cable run and mounting face before ordering. For related trailer lamps and lighting parts, browse LED Lights at ICS Trailers
