Description

Overview

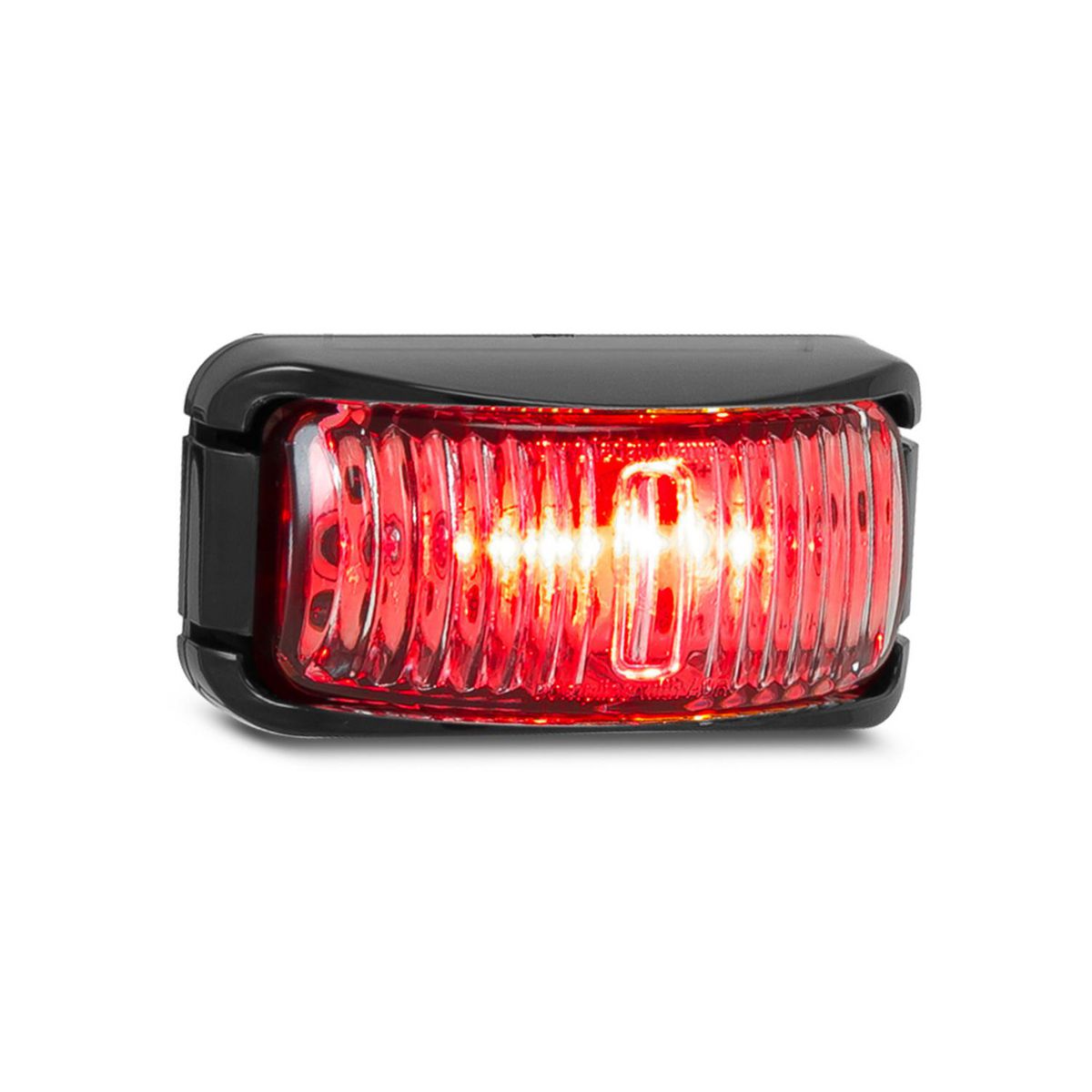

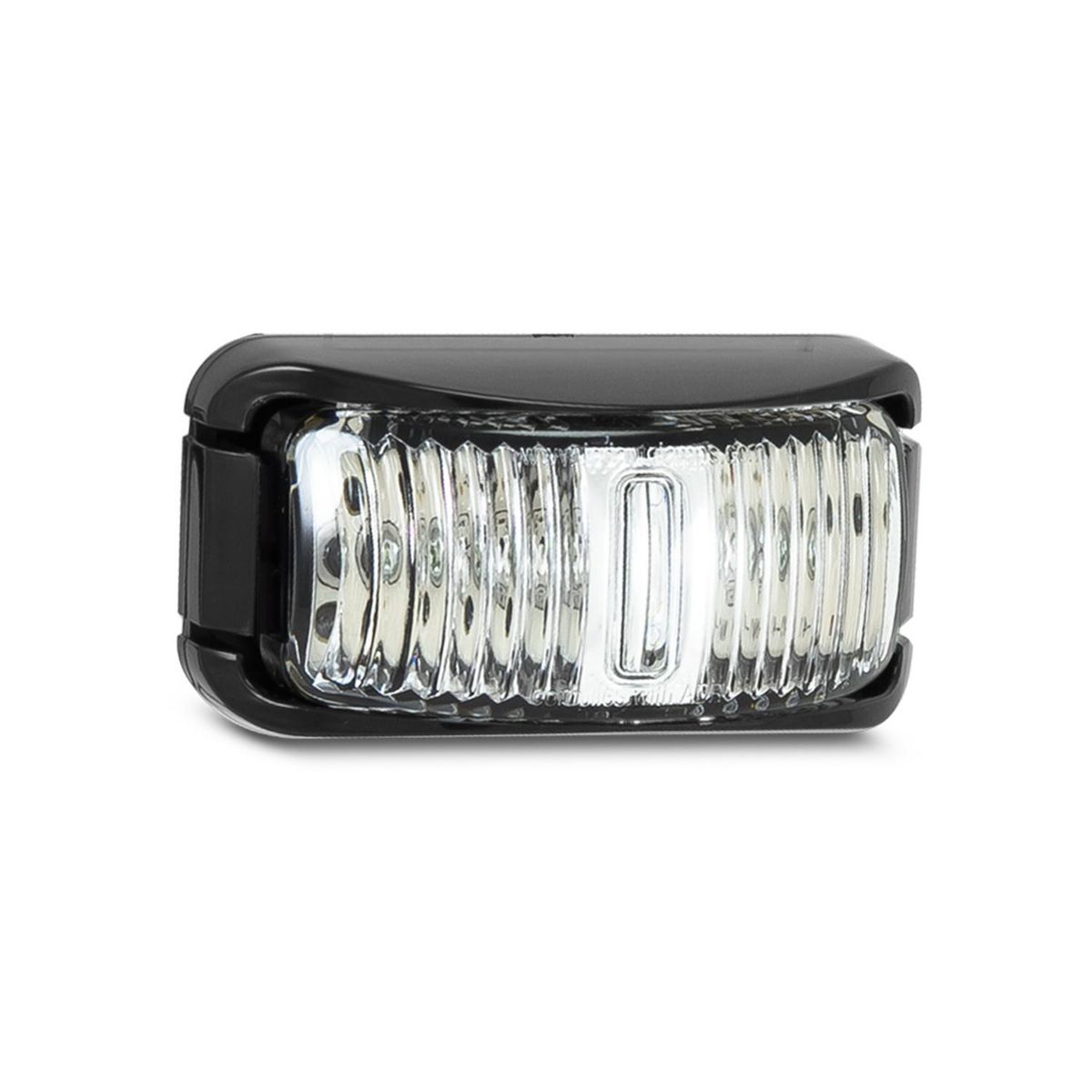

Rear end outline LED marker replaces rear outline lighting on trailers, truck bodies and heavy vehicle bodywork where a compact red marker lamp needs a black surface bracket. It gives the rear of the vehicle a clear red marker point, so other road users can read the vehicle outline more easily in low light.

Features

• Red rear end outline marker function for trailer and truck body lighting.
• 12/24V range suits common heavy vehicle electrical systems.
• Clip-in lens design helps with access during fitting and service checks.
• IP67 rated body helps protect the lamp from dust and water ingress.

Specifications and Materials

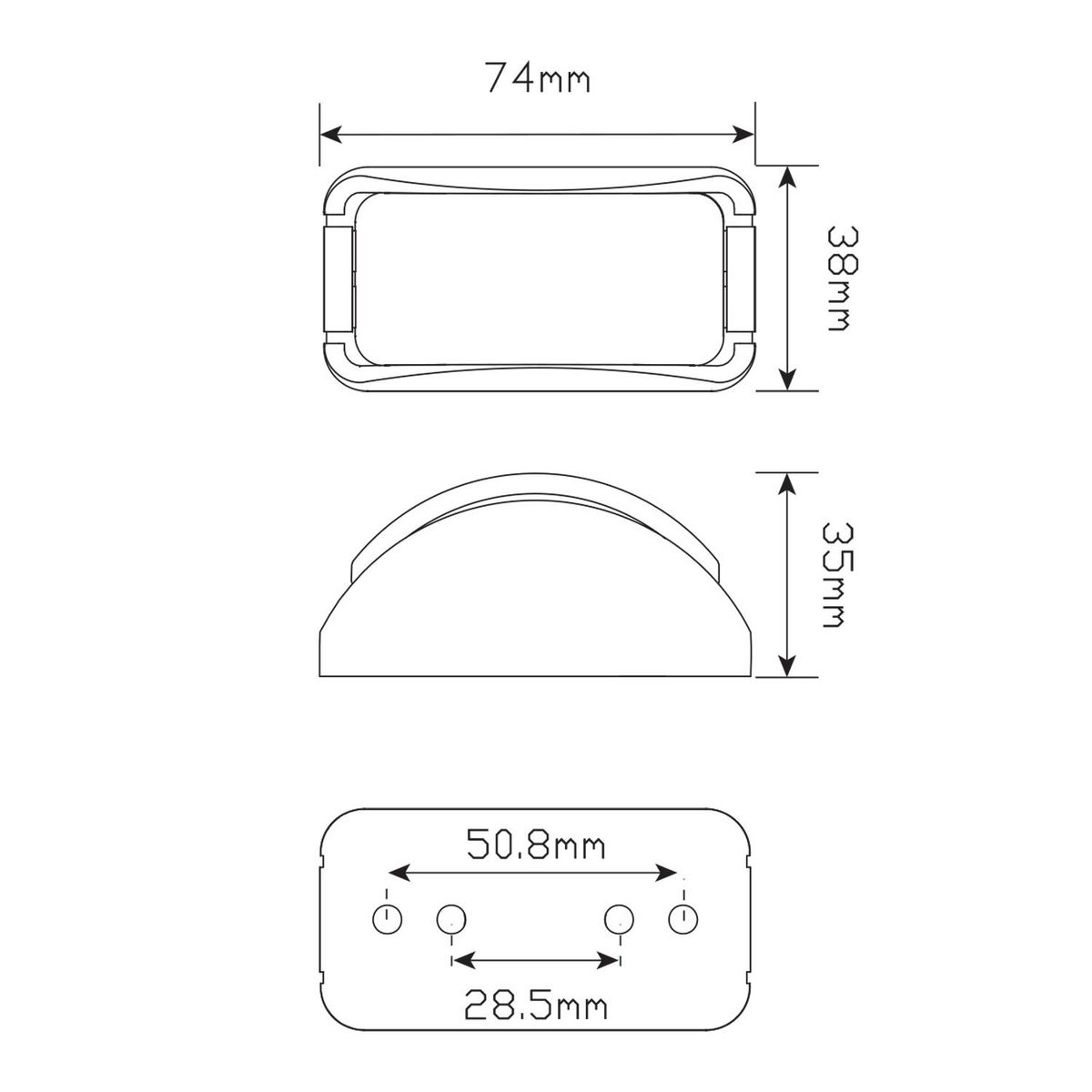

This rear end outline LED marker uses a red lens, black bracket and 16cm bare wire cable. It measures 74mm x 38mm x 35mm, carries 2 LEDs, and draws 0.05A at 13.8V or 0.06A at 28V for the rear end marker function. The lens uses polycarbonate, while the base uses hardened acrylic. Part number: 42RM. The LED Autolamps 42 Series technical page covers the matching marker lamp family.

Compatibility and Fitment

Match the lamp function, voltage range, lens colour, bracket style and cable type before ordering. For a clean fit, compare the 74mm x 38mm body size against the existing lamp footprint and confirm the mounting surface gives the bracket a flat base. When replacing an older marker, check cable condition before reconnecting the new lamp.

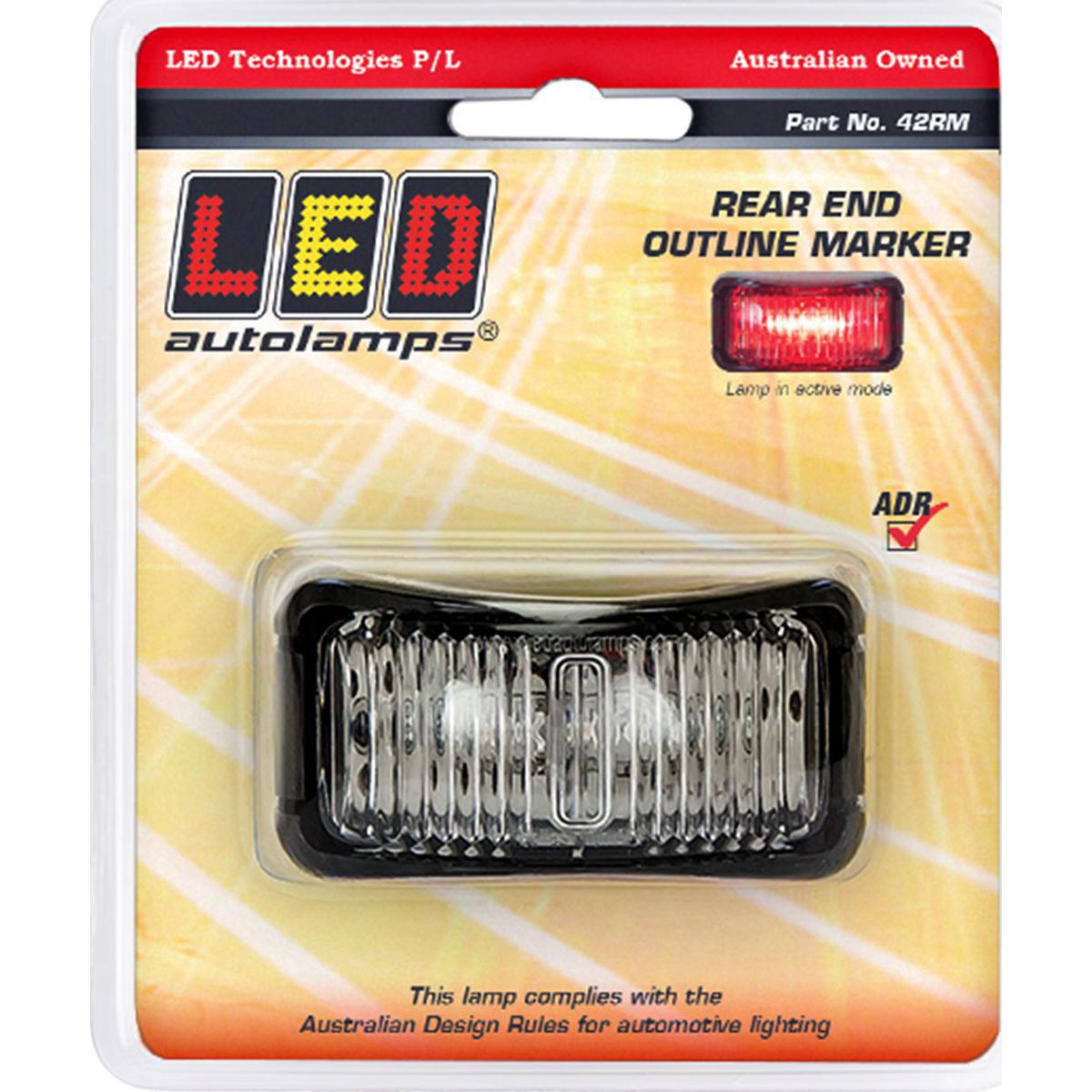

Compliance and Safety

This lamp carries ADR Australian road approval for rear end outline marker use. During fitting, mount the bracket horizontally on a flat surface, run the wires through the rear, then clip the lens into place. Also inspect the surrounding wiring, earth points and mounting screws, because poor connections can make a good lamp look faulty.

Trailer Applications

Workshops fit this style of rear end outline LED marker to trailer rears, truck body corners, rigid bodies and equipment bodies where a compact red marker lamp suits the layout. It works neatly when the job needs a small black bracket lamp rather than a larger rear combination light.
