Description

Overview

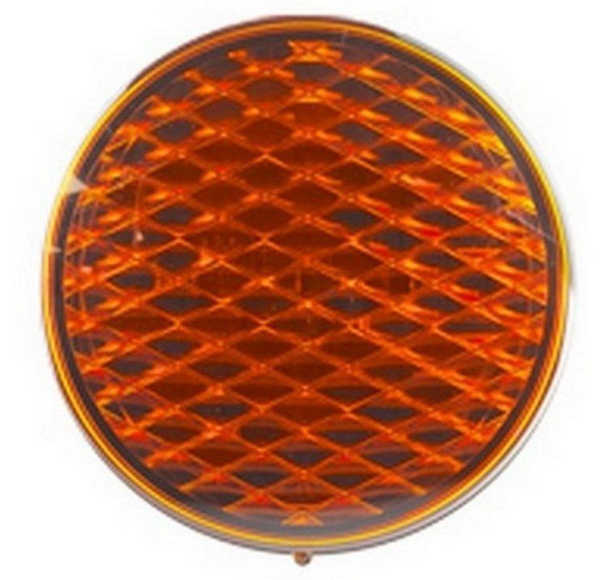

Amber round indicator lamp restores rear turn signal visibility on 12V and 24V trailer and heavy vehicle lighting systems. Its low-profile 80mm round body suits surface mounting where the lamp needs to sit close to the panel. The amber lens and 8 LED layout give the indicator function a clear, dedicated signal point.

Features

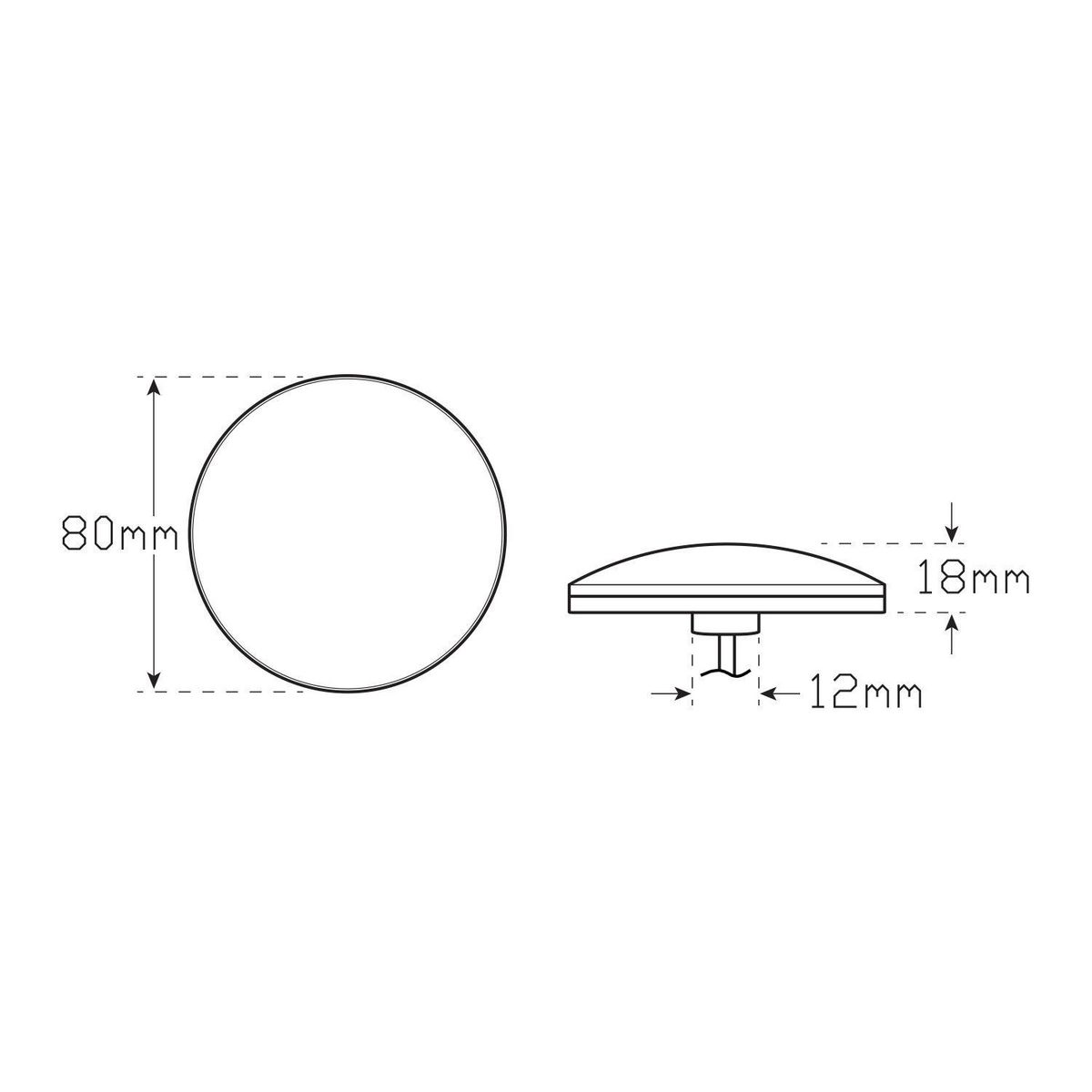

• 80mm round lamp face with 18mm depth.
• 12/24V operation suits mixed trailer and vehicle fleets.
• 3M tape mounting helps keep the fit clean and low profile.
• 30cm cable gives enough lead length for typical panel wiring.

Specifications and Materials

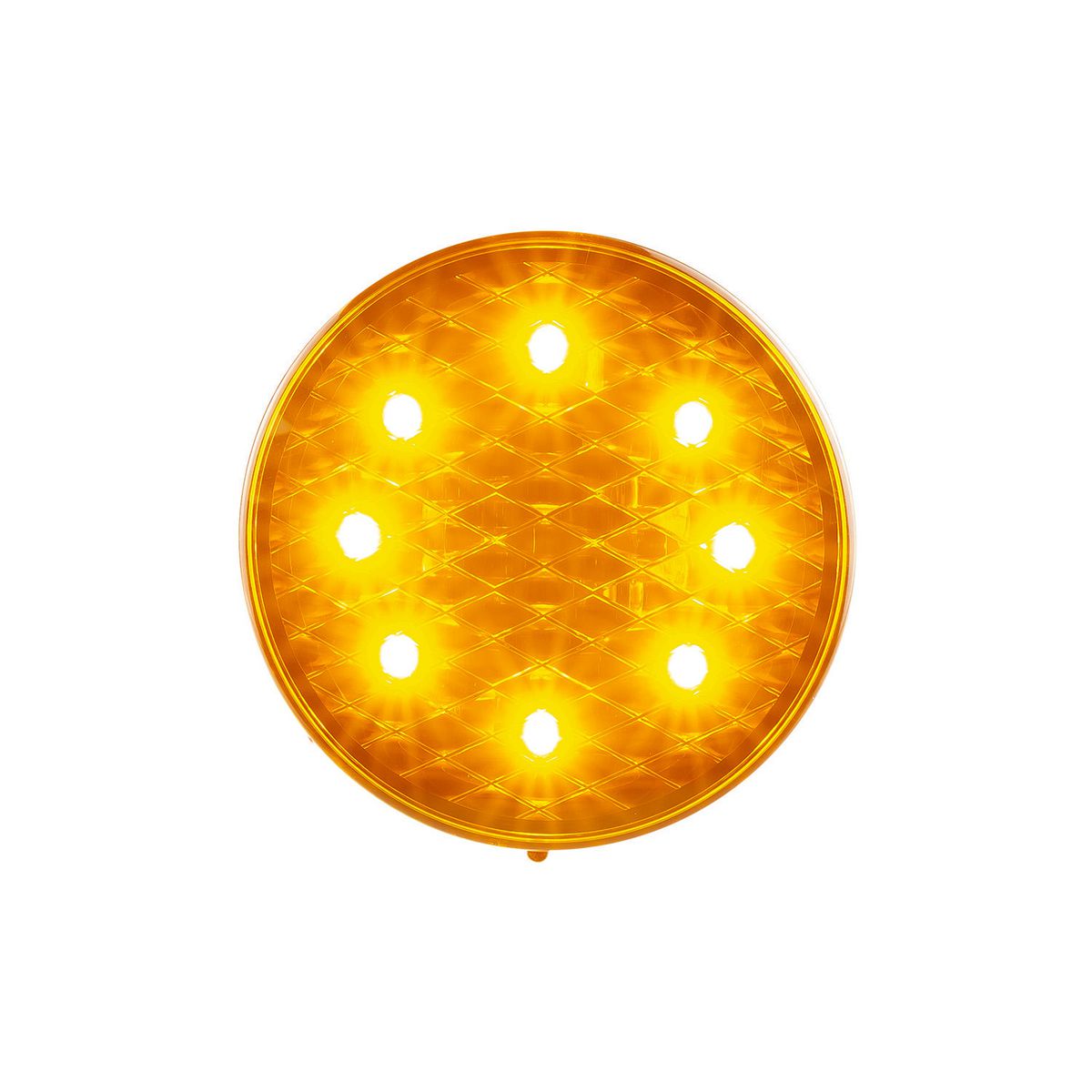

This amber round indicator lamp uses an amber PMMA lens with a diamond-pattern face. It carries 8 LEDs, draws 0.19A at 13.8V and 0.08A at 28V, and has an IP67 protection rating. Part number: 82AMB. The lamp measures 80mm round x 18mm, so match the panel space and cable path before fitting. Use the LED Autolamps 82 Series technical page for supported family details.

Compatibility and Fitment

Match this lamp to a rear indicator position requiring an amber lens, 12/24V operation and an 80mm low-profile round body. Before fitting, clean the mounting surface, run the cable through the panel opening and align the locator nodule downward. If replacing an existing lamp, compare the old lamp diameter, depth, cable exit and mounting method before final installation.

Compliance and Safety

This lamp carries ECE Indicator approval E9*6R01/29*22319*00 and CTA Indicator approval 6/00 CTA-060157. Refer to ADR 13/00 mounting guidance when positioning indicator lamps on road-going trailers and vehicles. After installation, press the 3M tape firmly onto a clean surface, check the seal around the cable entry and test the indicator circuit before service.

Trailer Applications

Trailers use an amber round indicator lamp like this on rear lighting panels, tray bodies, service trailers and heavy vehicle bodies that need a compact LED signal lamp. Fleets also choose this style when they want a simple round lamp that can suit both 12V and 24V systems. For workshop refits, the slim body helps avoid bulky lamp protrusion on flat panels.

Why Choose ICS Trailers

ICS Trailers can help match indicator lamps by voltage, lens colour, mounting style and trailer lighting position. Browse LED Lights at ICS Trailers for trailer lighting parts.
