Description

Overview

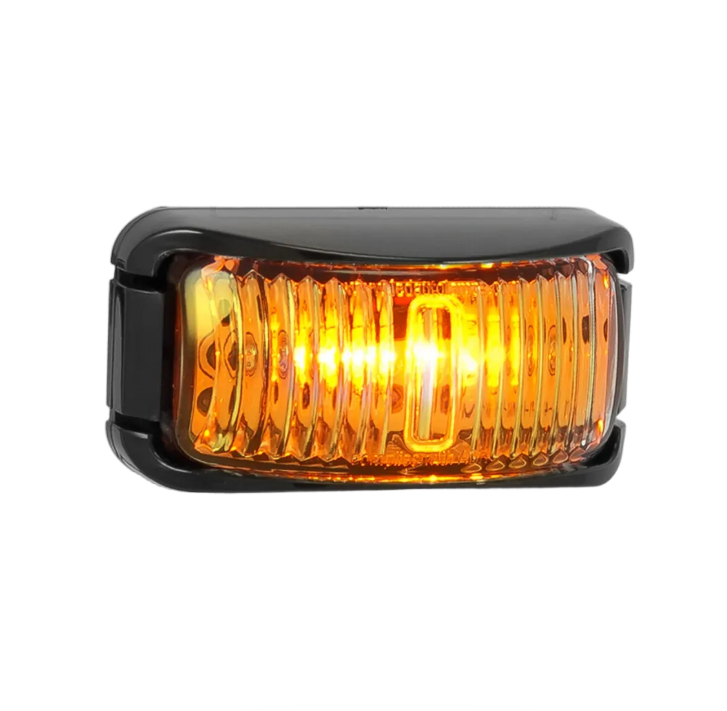

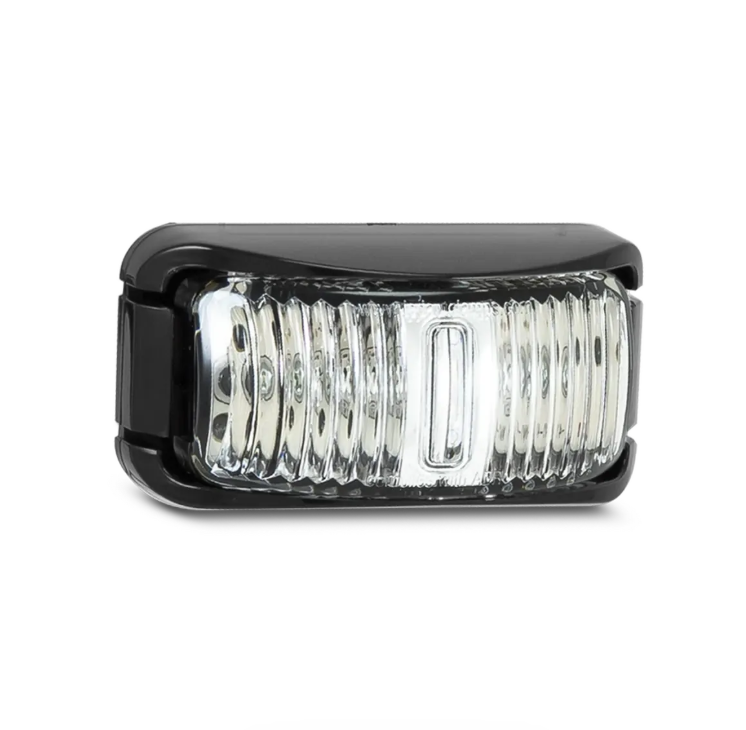

Amber side direction indicator lamp keeps trailer side signalling clear and visible in a compact classic truck-style housing. The clear lens gives the lamp a cleaner look when off, while the amber output stands out once powered. Because the body stays compact, it suits repairs and fresh installs where side space is limited around rails, guards and body panels.

Features

• Clear lens design with amber side direction output
• Classic truck style housing with clip-in lens
• Black bracket format for flat surface mounting
• IP67-rated sealing with 5 year warranty

Specifications and Materials

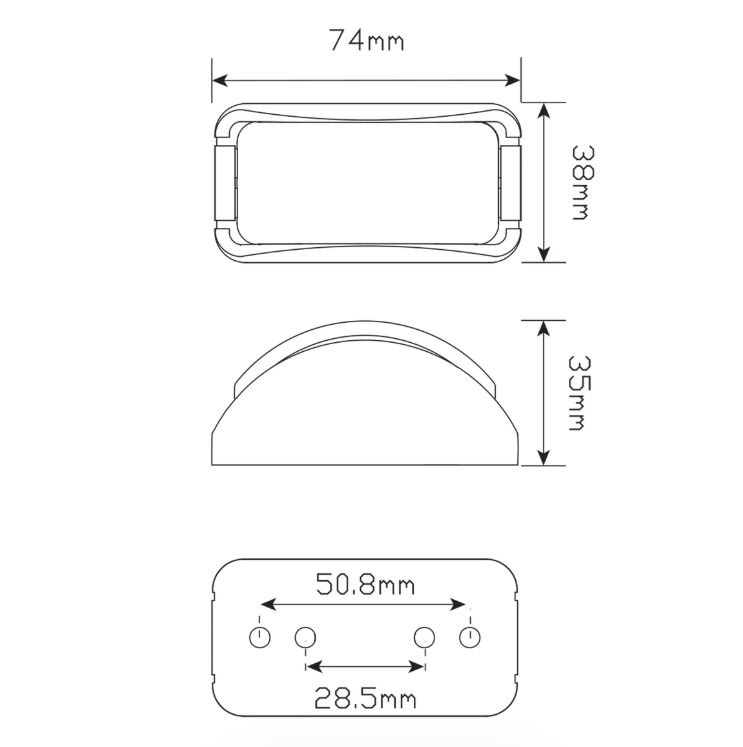

This amber side direction indicator lamp measures 74mm x 38mm x 35mm and runs on 12-24V systems, so it suits a wide range of trailer and transport lighting setups. It uses 3 LEDs, a 16cm cable, a polycarbonate lens and a hardened acrylic base, which keeps the unit compact while still handling exposed mounting positions. Current draw stays low at 0.05A at 13.8V and 0.06A at 28V, so it fits neatly into common trailer lighting circuits. Part number: 42AM. See the manufacturer technical guide

Compatibility and Fitment

Check the mounting face, lamp size and operating voltage before ordering. This amber side direction indicator lamp mounts horizontally onto a flat surface, then the wires run through the back and the lens clips into place, which helps keep the install tidy. It suits trailer and transport applications that need a compact side direction lamp with a traditional bracketed look.

Compliance and Safety

ADR and CTA approval cover the side direction indicator function under category 6/00 Cat5, so the lamp suits compliant trailer lighting work when mounted correctly. Follow ADR 13/00 mounting guidance during installation, then secure the cable away from rubbing points and sharp edges. Also make sure the bracket sits flat, because a clean mount helps protect the seal against water and vibration.

Trailer Applications

Workshops fit this amber side direction indicator lamp on trailers, transport bodies and classic-style builds that need a compact side indicator with a black bracket finish. It also suits repair work where an older lamp has cracked, leaked or lost brightness and a like-for-like footprint keeps the job straightforward. Because the lens clips in, service access stays simpler when the lamp needs attention later.

Why Choose ICS Trailers

ICS Trailers supplies lighting parts that fit real trailer repair and retrofit work, so this lamp sits naturally alongside the wiring and mounting hardware often needed during side lighting jobs. Browse LED Lights at ICS Trailers
