Description

Overview

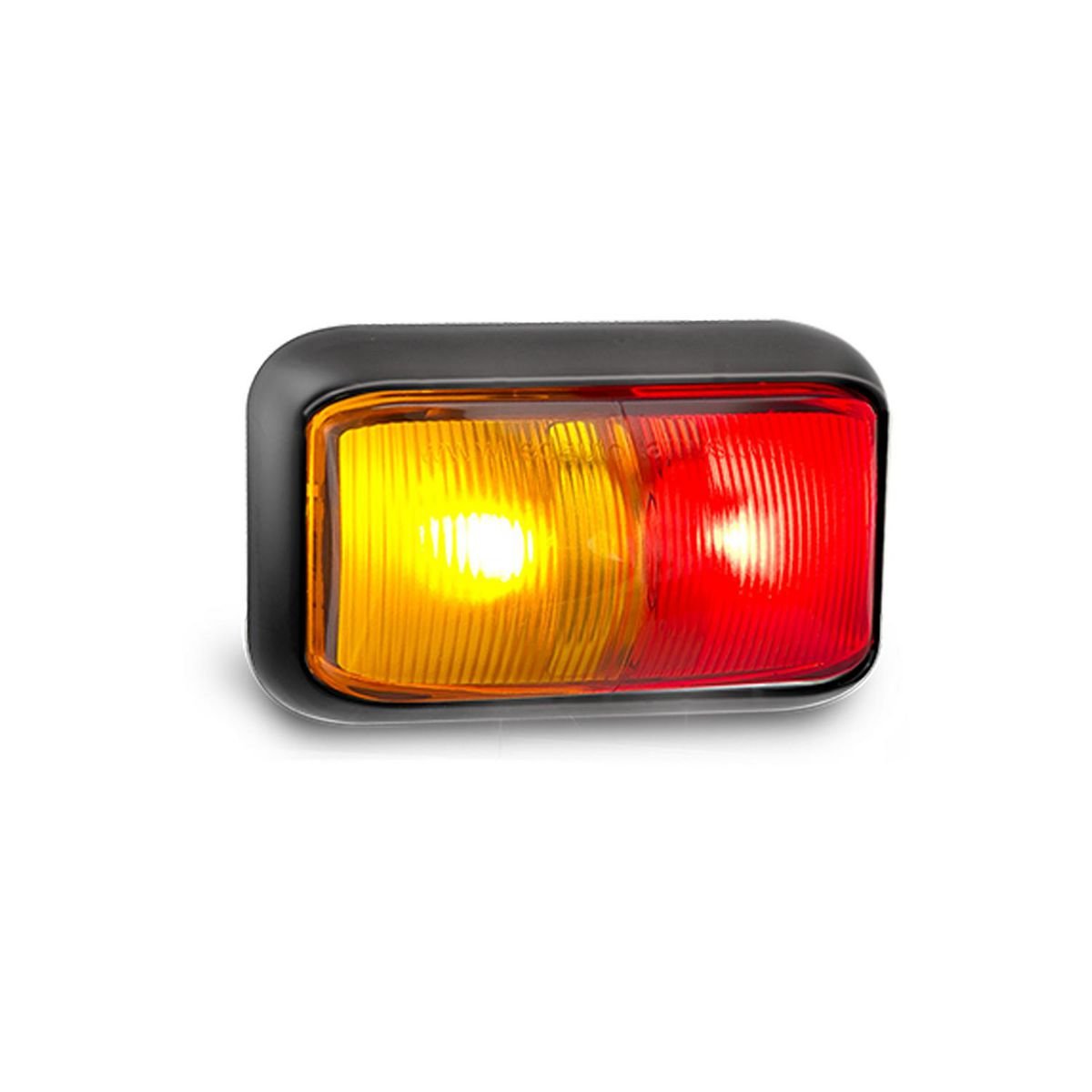

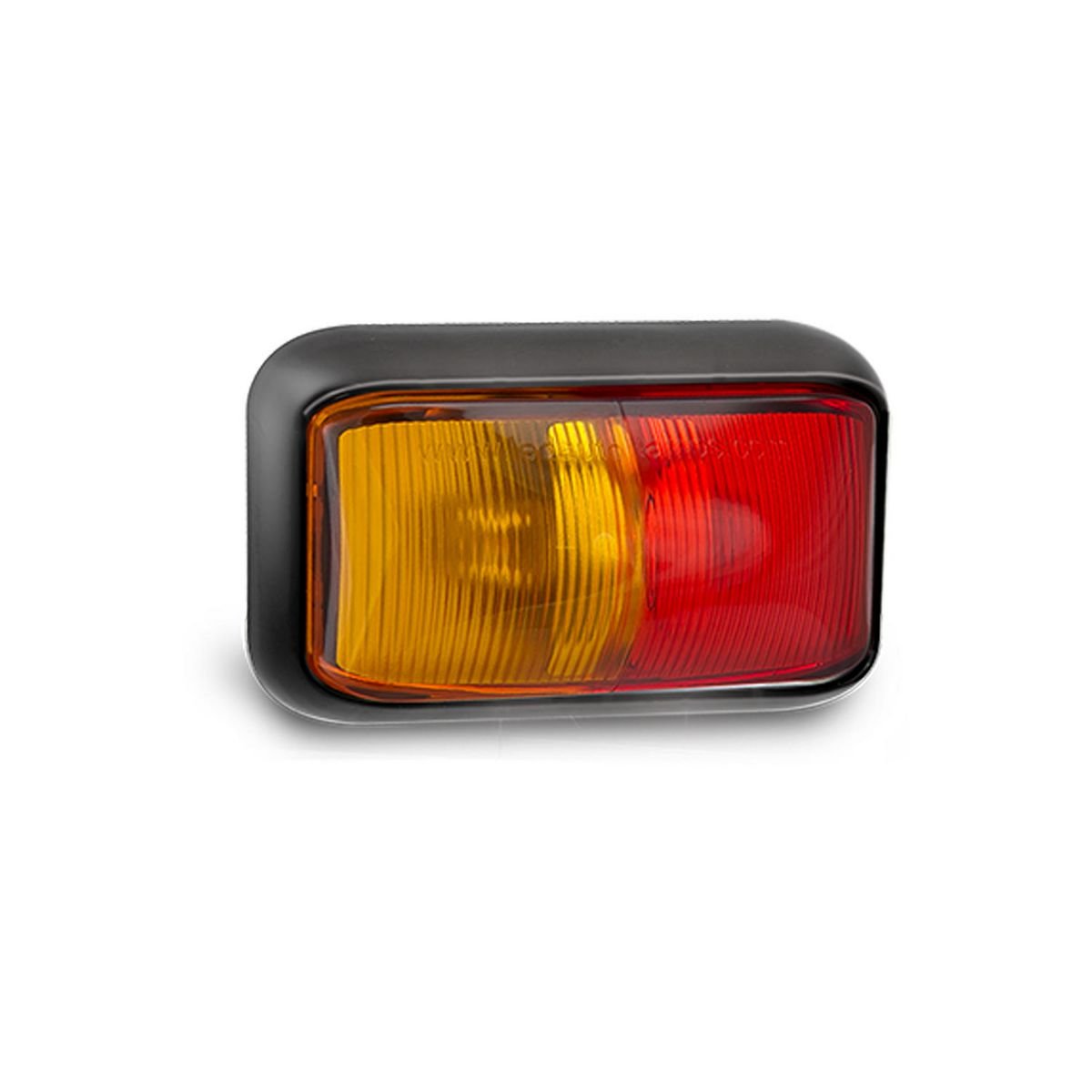

Red amber side marker lamp 10 pack keeps trailer and truck side lighting visible with a compact low-profile fitting that suits tight mounting positions. The split lens gives you red and amber side marker coverage in one small lamp, so it suits builds and repairs where bracket space is limited. Because this SKU is a boxed 10-pack, it also makes sense for workshop stock, fleet service work and multi-trailer lighting jobs.

Features

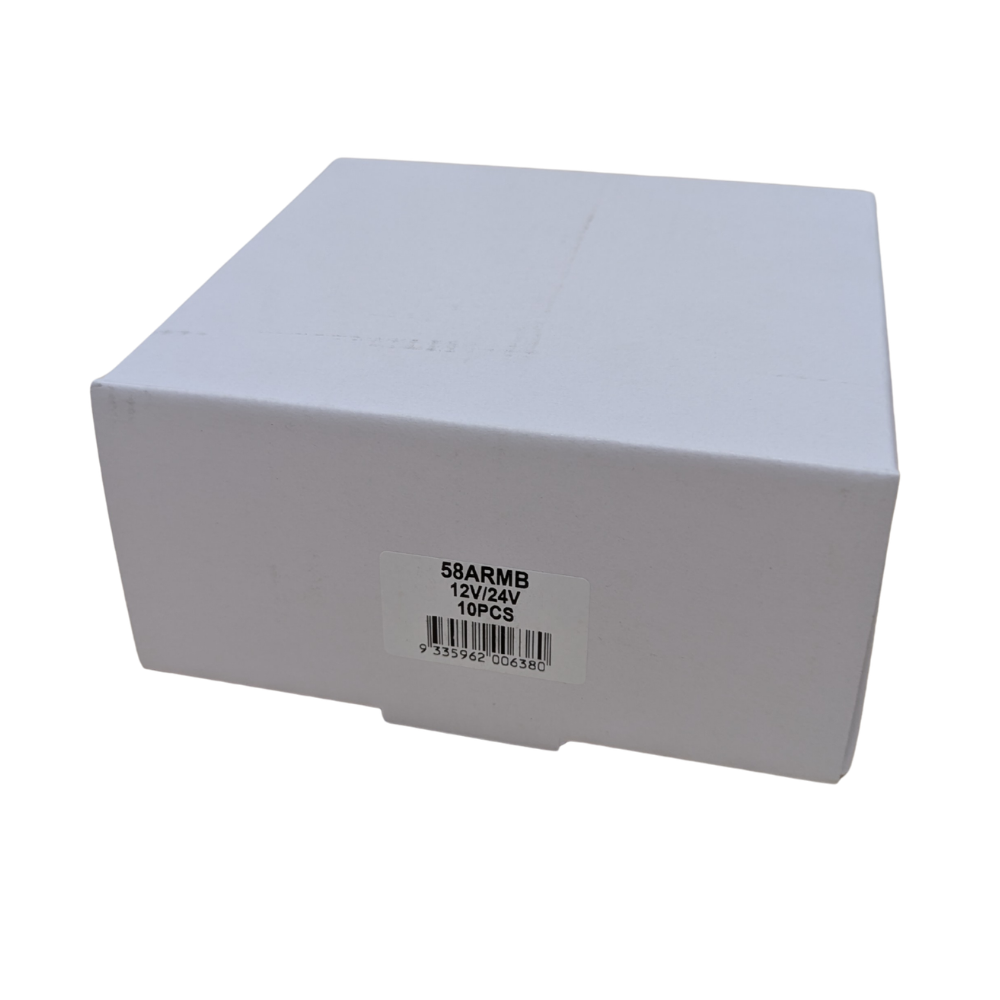

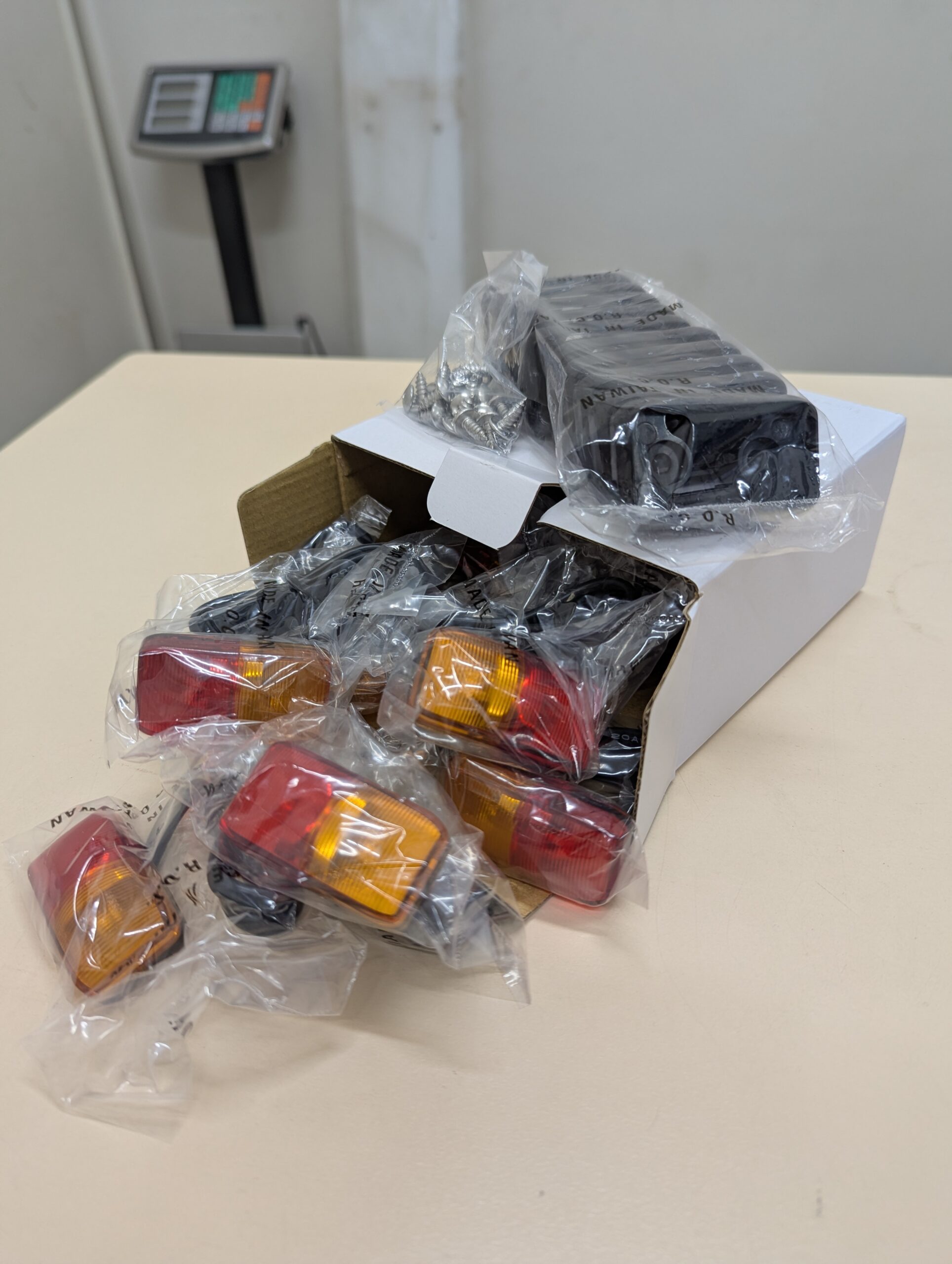

• Boxed 10-pack for workshop stock and repeat service work

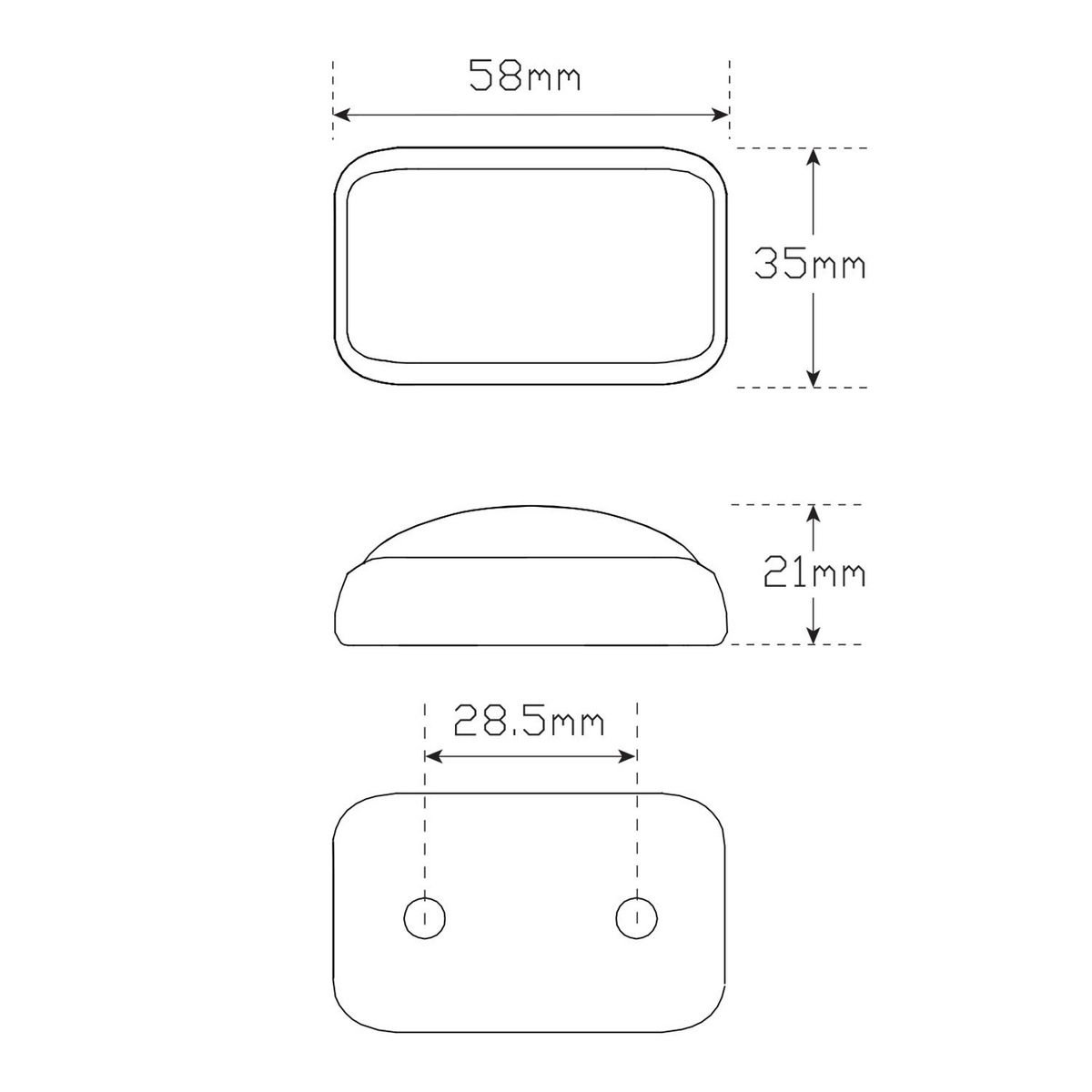

• Black housing with compact 58mm x 35mm x 21mm body
• Clip-in replaceable lens for quicker lamp servicing
• IP67-rated sealing with 40cm bare wire lead on each lamp

Specifications and Materials

This red amber side marker lamp 10 pack uses hardened acrylic lenses on ABS bases, and each lamp runs on a 12-24V system with a 40cm cable lead. Each unit carries 2 LEDs and draws 0.10A at 13.8V and 0.04A at 28V, so the load stays low across common trailer lighting circuits. The black housing helps match existing low-profile marker setups, and the boxed format keeps ten identical lamps together for service work. Part number: 58ARMB. See the official 58 Series data sheet

Compatibility and Fitment

Match the housing style, overall size and wiring format before ordering. This red amber side marker lamp 10 pack suits surface-mounted side marker positions on trailers, caravans and transport equipment where a compact body and rear cable entry matter. Mount the bracket to a flat surface, then run the wires through the back and clip the lens into place for a neat finish.

Compliance and Safety

ADR approval covers the side marker function under category 45/01, and CTA approval also applies to the same side marker function. Follow ADR 13/00 mounting guidance when positioning the lamps, because marker placement matters as much as lamp choice. During fitment, inspect the bracket face, wiring path and sealing area so the lamp stays protected from water, vibration and rubbing.

Trailer Applications

Workshops fit this red amber side marker lamp 10 pack on trailers, service bodies and transport equipment that need multiple low-profile side markers replaced in one job. It also suits preventive service work when fleets want matching lamps kept on hand for fast turnaround. The compact size helps when guards, rails or side panels leave very little mounting room.

Why Choose ICS Trailers

ICS Trailers supplies lighting parts that often get replaced during trailer electrical repairs, so this boxed set fits naturally into jobs that also need wiring, plugs or related hardware. Browse more LED Lights at ICS Trailers
