Description

Overview

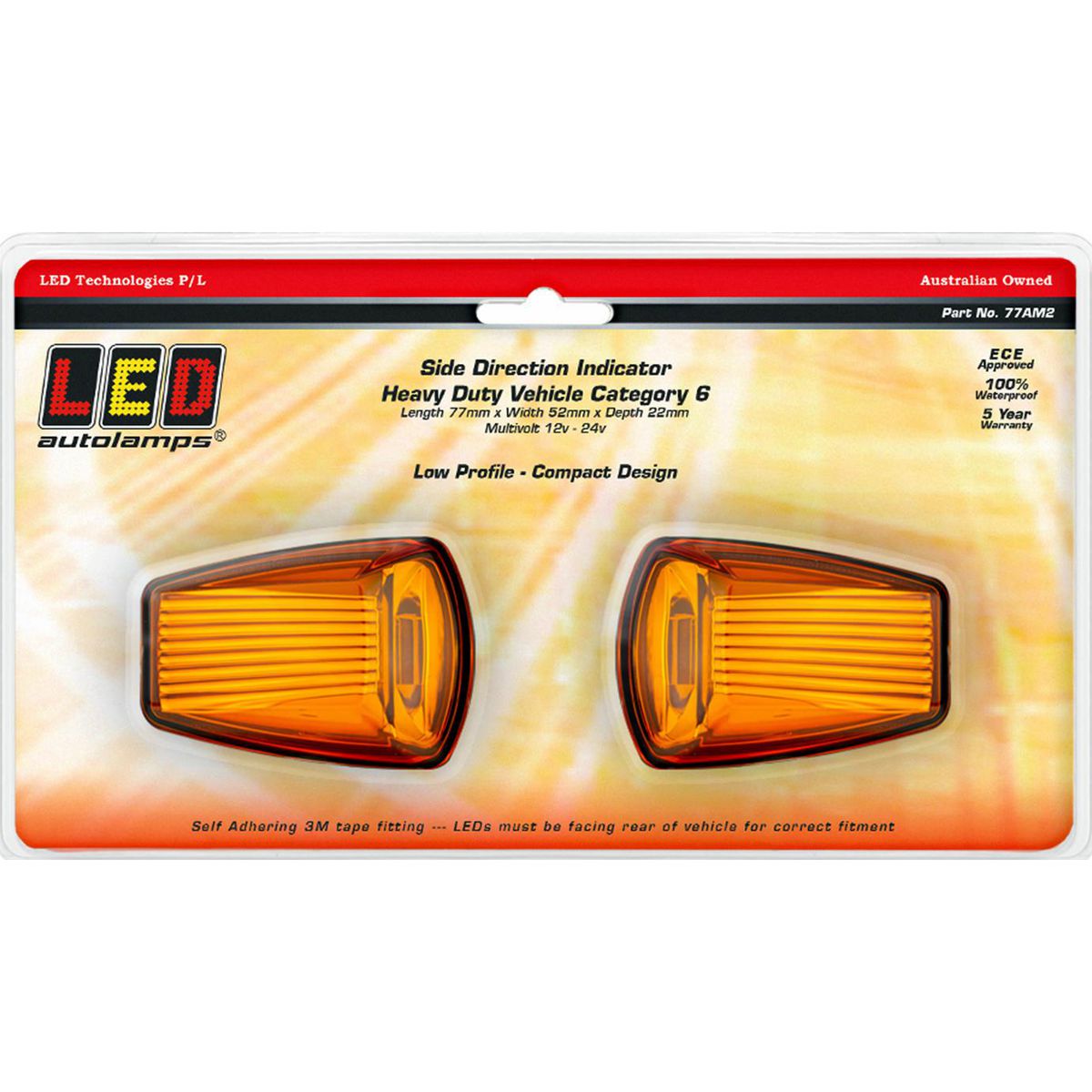

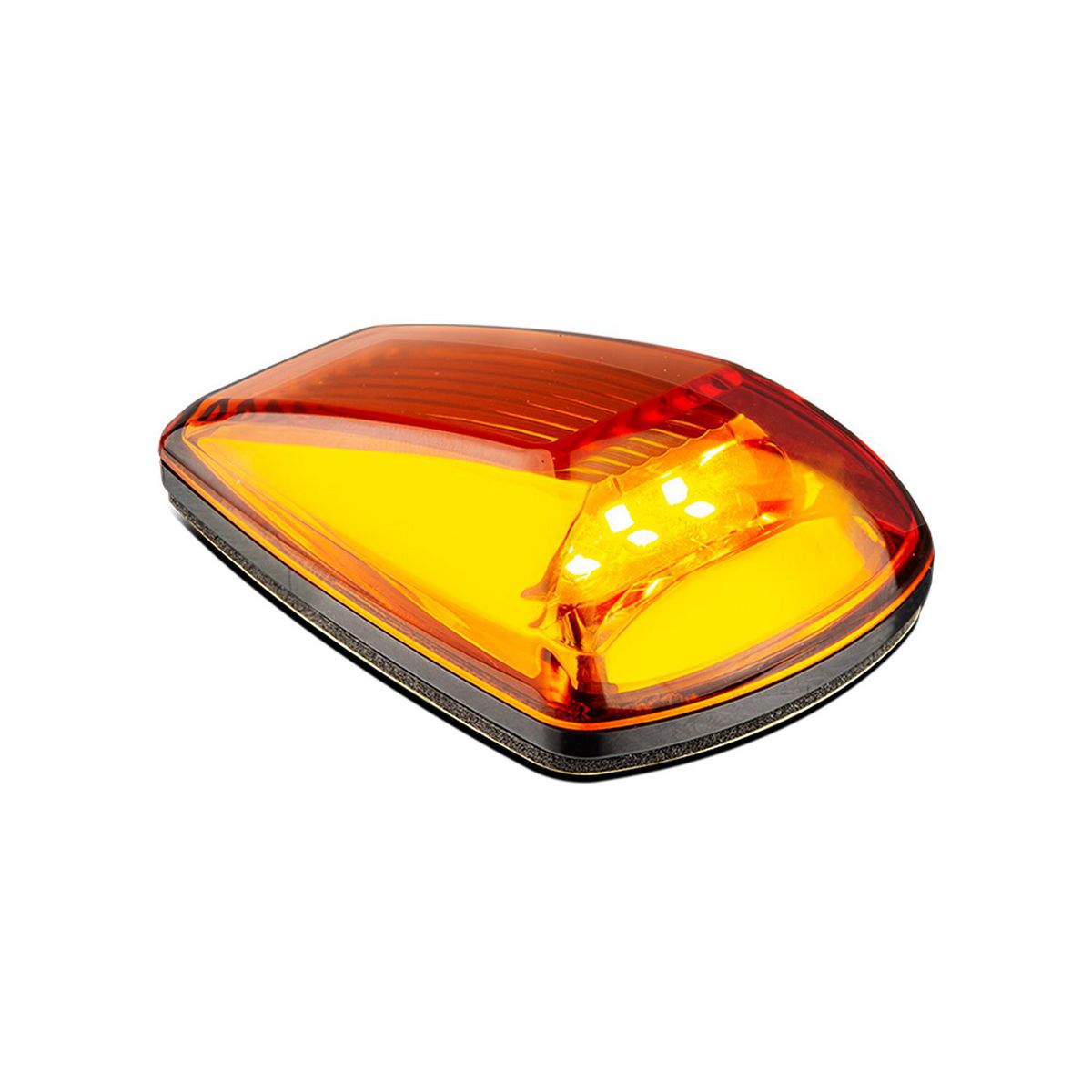

CAT6 LED side direction indicator supports vehicle and trailer side signalling where Category 6 side direction lighting suits the build. The amber lens, low-profile body and 9-32V operating range make it useful across 12V and 24V electrical systems. Because this twin blister includes two lamps, it suits left and right side fitment during vehicle upgrades, body builds and lighting repairs.

Features

• Amber Category 6 side direction indicator lamp pair.
• 9-32V voltage range suits 12V and 24V systems.
• IP67 sealing supports exposed side body mounting positions.
• 3M tape and serrated plug design helps keep installation compact.

Specifications and Materials

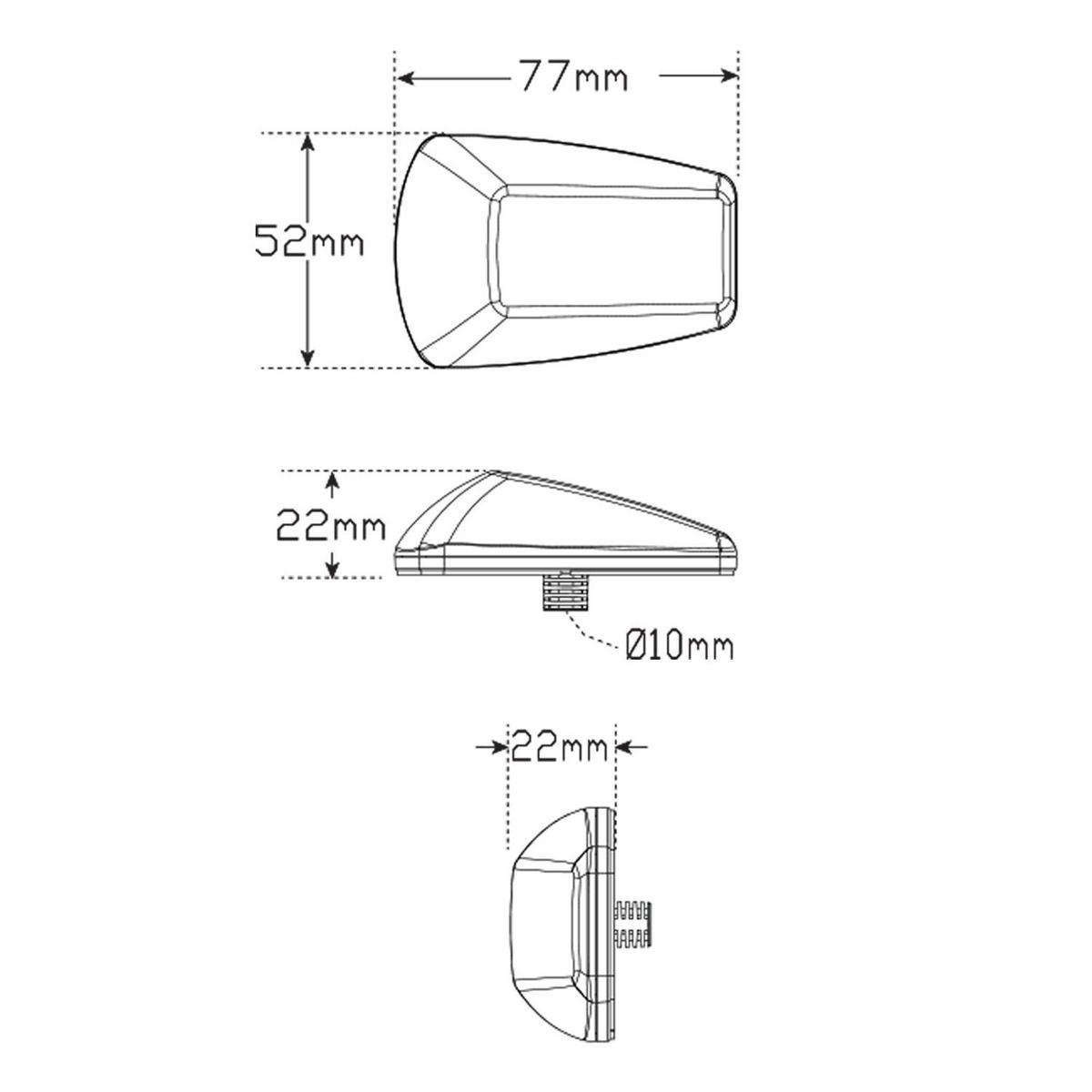

This CAT6 LED side direction indicator uses 3 LEDs per lamp, a 30cm cable and polycarbonate lens and base construction. Each lamp measures 77mm × 52mm × 22mm, with a 10mm hole required for the serrated plug. Current draw measures 0.12A at 13.8V and 0.08A at 28V. Part number: 77AM2. Technical ratings and mounting details are covered in the official LED Autolamps 77 Series datasheet

Compatibility and Fitment

Match this amber twin pack to side direction indicator positions that need Category 6 lighting. The lamps mount left or right, but the LEDs must face the rear of the vehicle. Drill a 10mm hole into a flat surface, then mount each lamp horizontally to the ground using the tape and serrated plug. Also check cable reach before fitting, because each lamp uses a 30cm cable.

Compliance and Safety

The lamp carries ECE approval for side direction use under approval number E9*6R01/29*22383*00, with CTA side direction approval CTA-060137. Follow ADR 13/00 mounting guidance during installation. After fitting, test indicator operation from both sides and check that the lamp angle, wiring path and plug entry stay secure.

Trailer Applications

Workshops use a CAT6 LED side direction indicator on vehicle GVM upgrade work, trailer body builds and side lighting repairs where compact amber side signalling matters. It suits flat side panels, guards and body sections where a low-profile lamp needs to avoid bulky brackets or deep cut-outs.
