Description

Overview

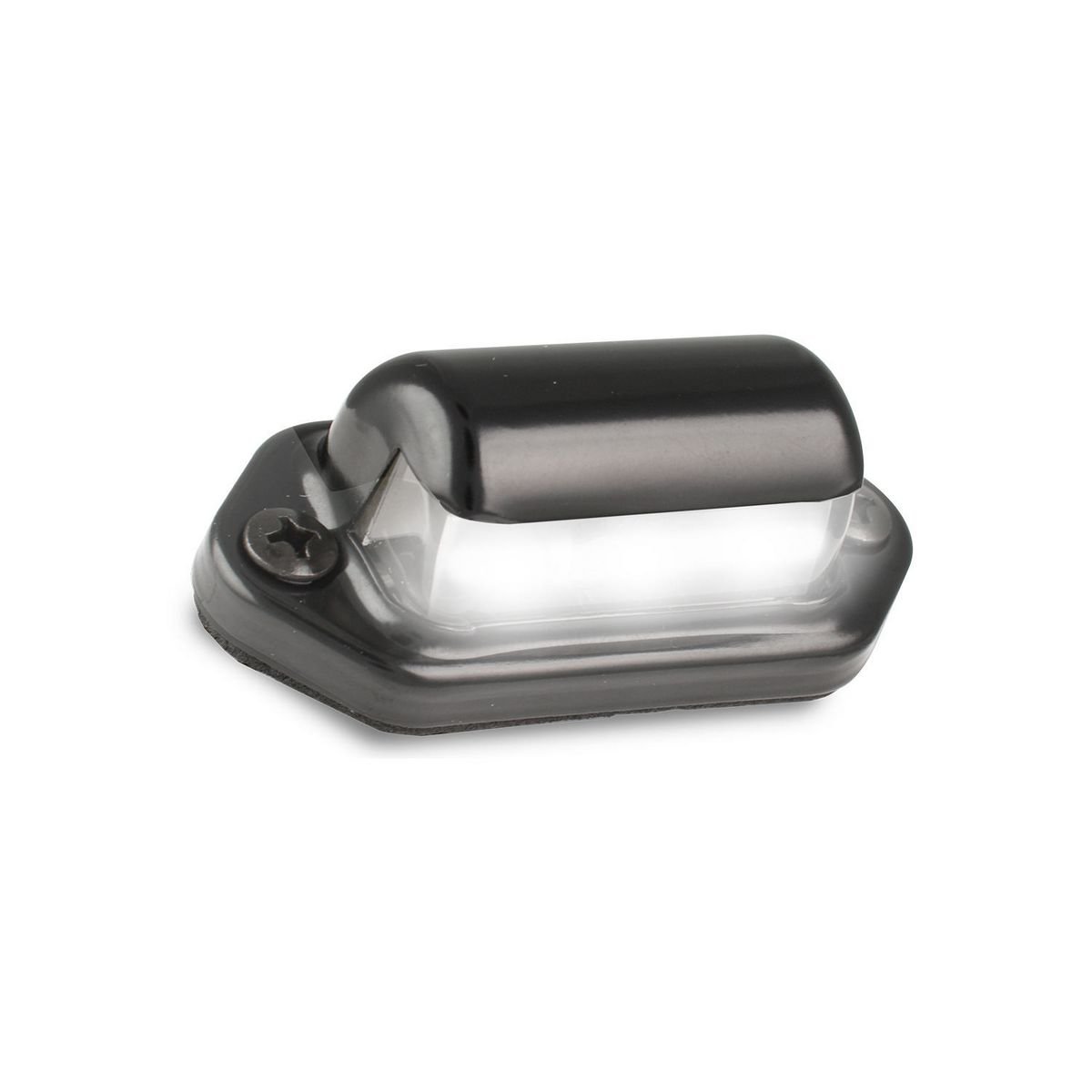

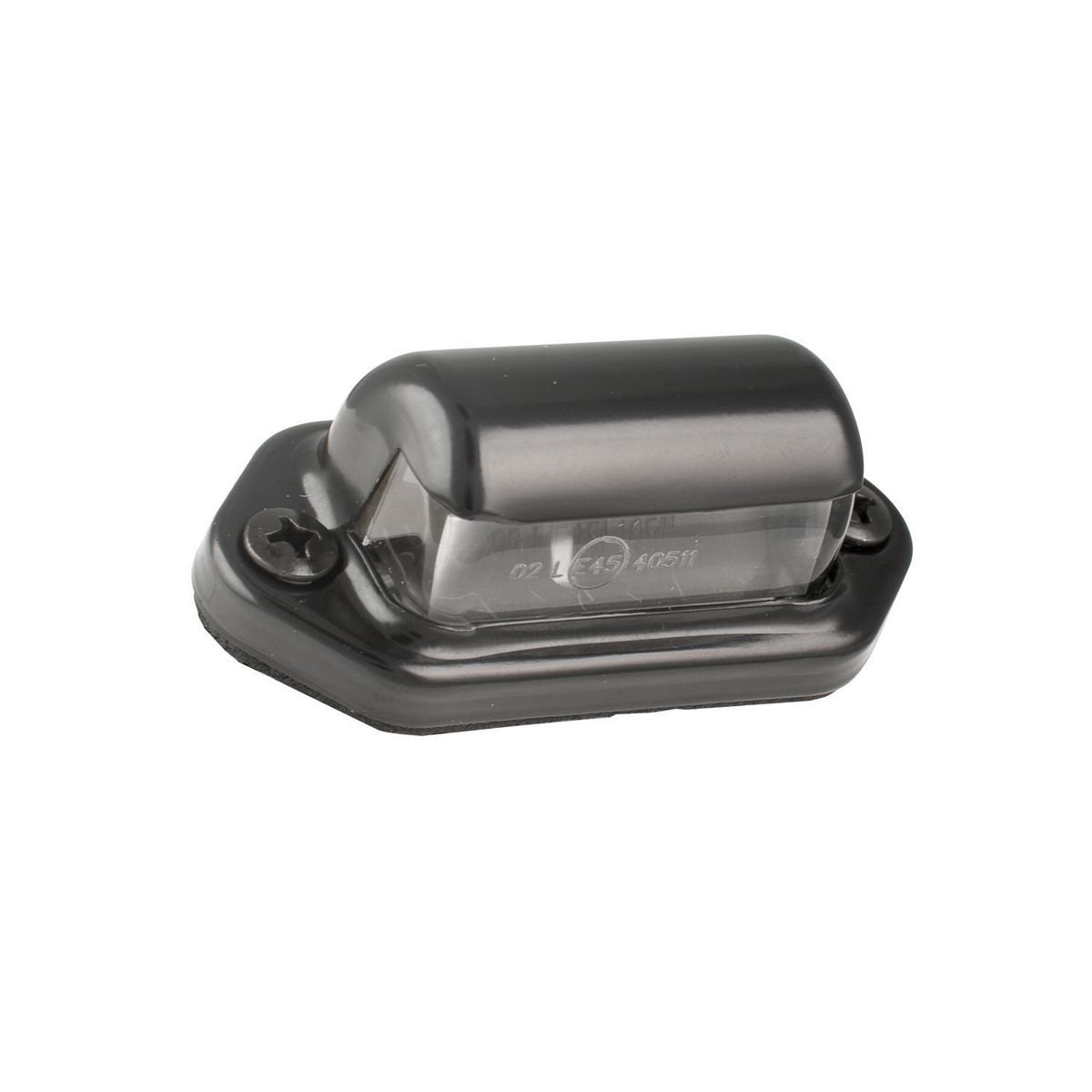

LED licence plate lamp keeps rear plate illumination working on trailers and heavy vehicles with a compact steel-housed fitting built for 12-24V systems. This twin-pack black housing version suits full left-and-right replacements, and it also works well when a damaged lamp needs both sides refreshed at once. The small footprint helps when the plate area leaves little room for a larger housing.

Features

• Black steel housing in a compact 65mm x 30mm x 24mm body
• 3 LEDs for clear plate lighting across 12-24V systems
• IP67-rated sealing for exposed rear mounting positions

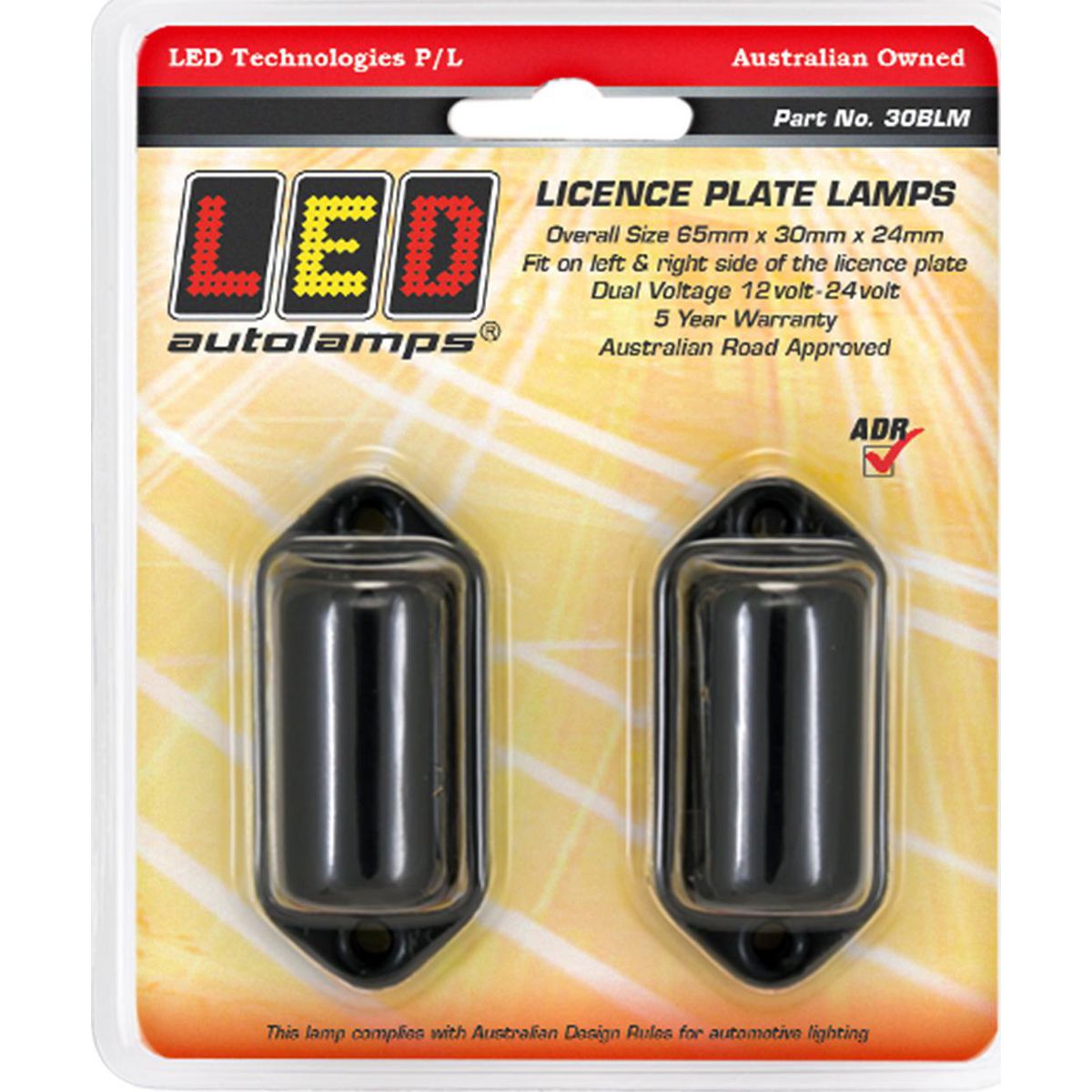

• Twin blister pack with 14cm bare wire leads

Specifications and Materials

Each lamp uses a PMMA lens over a steel housing, so the assembly stays compact while still handling exposed rear mounting positions. Current draw stays low at 0.02A at 13.8V and 0.03A at 28V, and the 14cm bare wire lead suits straightforward hard-wired installs. It carries a 5 year warranty, which makes this LED licence plate lamp a practical replacement for worn or failed rear plate lights. Part number: 30BLM. For fitment details, see the LED Autolamps technical guide

Compatibility and Fitment

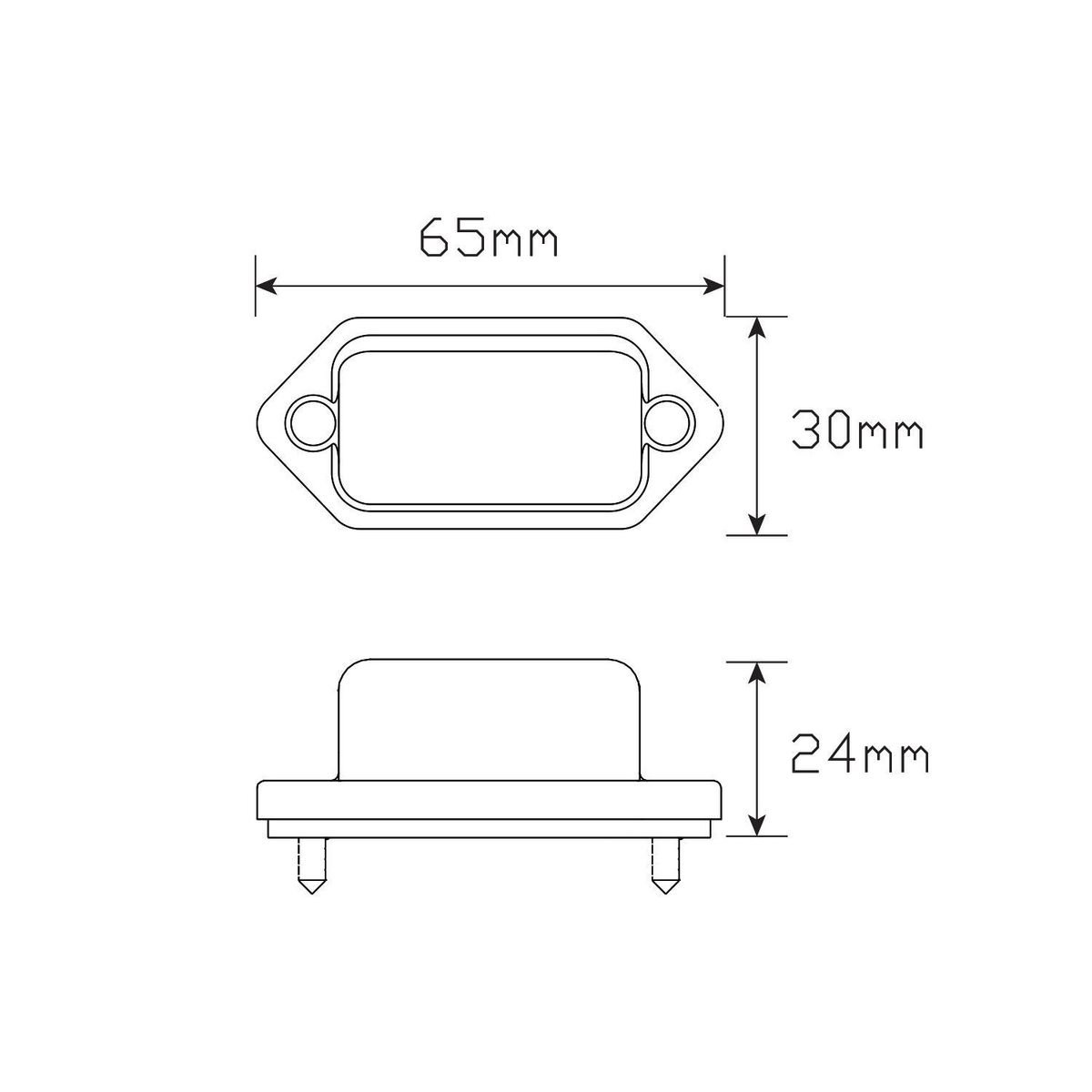

Match the black housing, 12-24V rating and bare wire configuration before ordering. The lamp mounts to a flat surface with screws and a foam gasket, so it suits compact rear plate positions where a surface-screw fitting is needed. Check your available mounting space first, because each lamp measures 65mm x 30mm x 24mm. You need one lamp on each side of the licence plate, and this twin-pack format covers that setup in one box.

Compliance and Safety

ADR approval covers the licence lamp function under category 48/00. Inspect the gasket and mounting face before fitment, then secure the wiring away from sharp edges and likely water entry points. Brown is power and white is earth, so final wiring checks stay simple during installation.

Trailer Applications

Workshops fit this LED licence plate lamp on trailers and other 12-24V vehicle builds that use separate number plate lamps instead of a combined rear lamp assembly. It suits repair work on rear bars, plate brackets and compact mounting panels where space is limited. The twin-pack format also makes sense when both old lamps are cracked, corroded or no longer lighting the plate evenly.

Why Choose ICS Trailers

ICS Trailers focuses on trailer parts, so this lamp sits alongside the wiring and lighting gear commonly replaced during rear-end electrical repairs. That makes it easier to order matching service items in the same job when plate lighting needs attention. For matching options, browse LED Lights at ICS Trailers
