Description

Overview

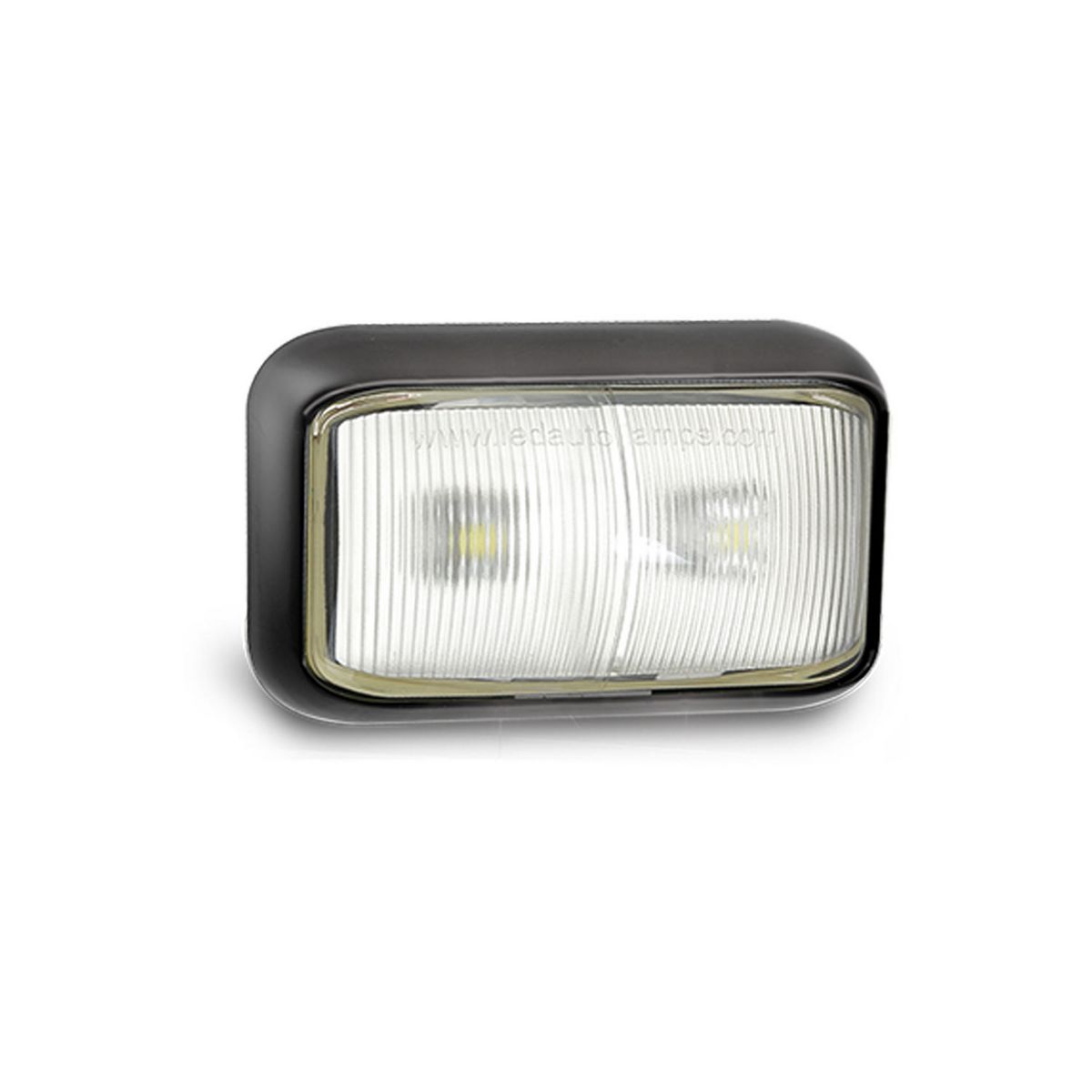

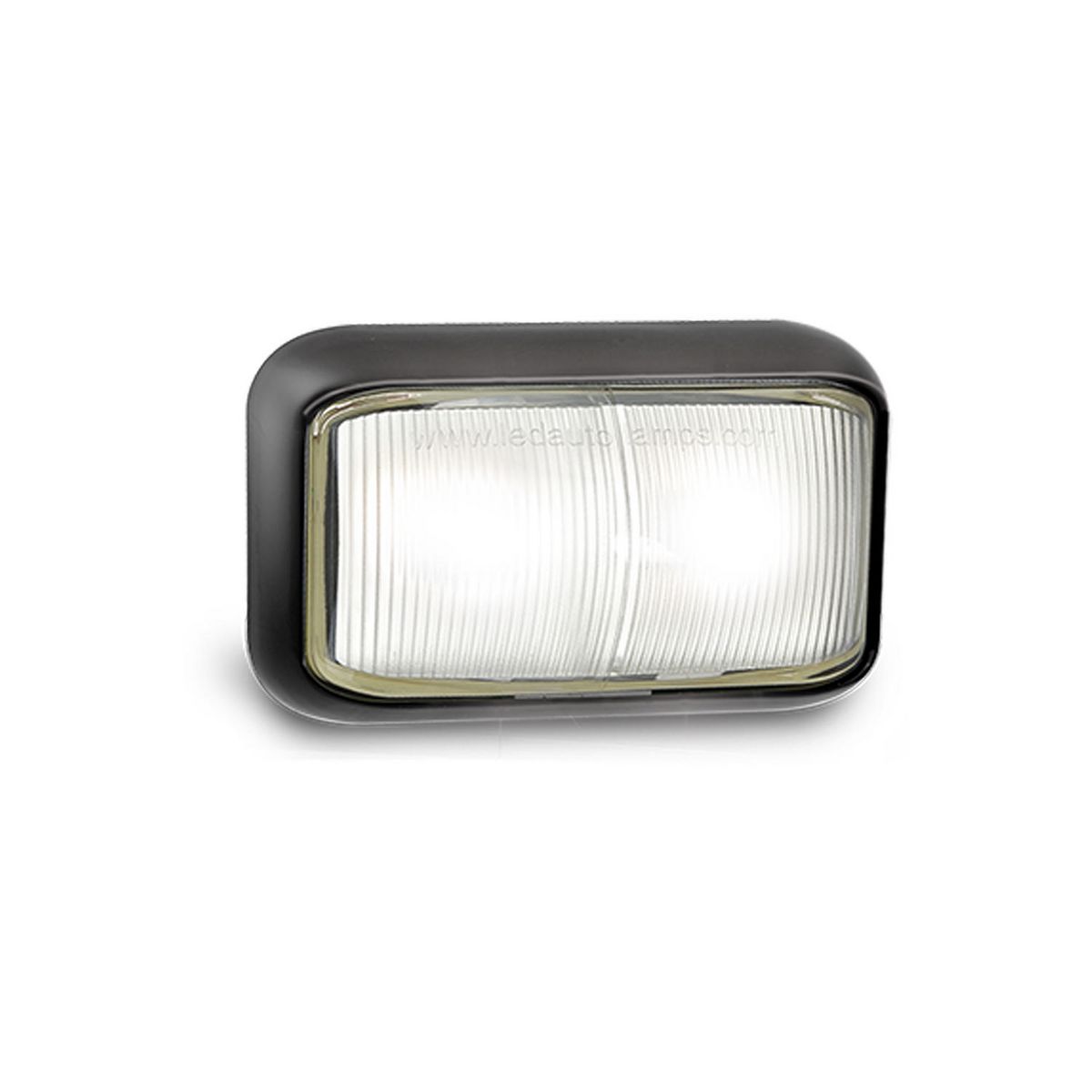

The front end outline marker lamp restores white front outline visibility on 12-24V trailer lighting systems. Its compact 58 Series body suits tight mounting spots where a low-profile lamp matters. The clip-in replaceable lens also lets workshops service lens damage without replacing the whole marker assembly.

Features

• White front end outline marker function
• 2 LED output in a compact low-profile housing
• 12-24V operating range for mixed trailer fleets
• IP67 rated body with clip-in replaceable lens

Specifications and Materials

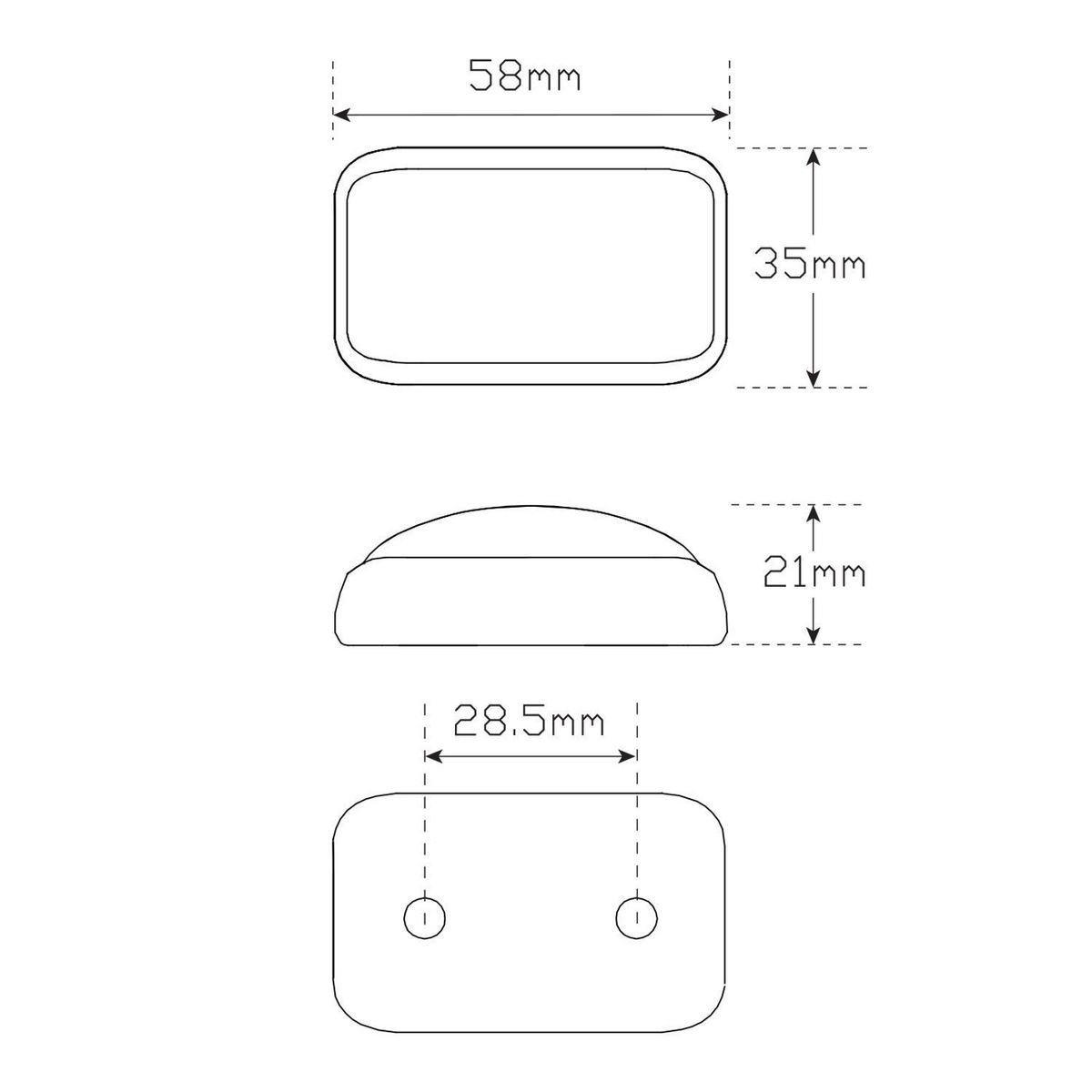

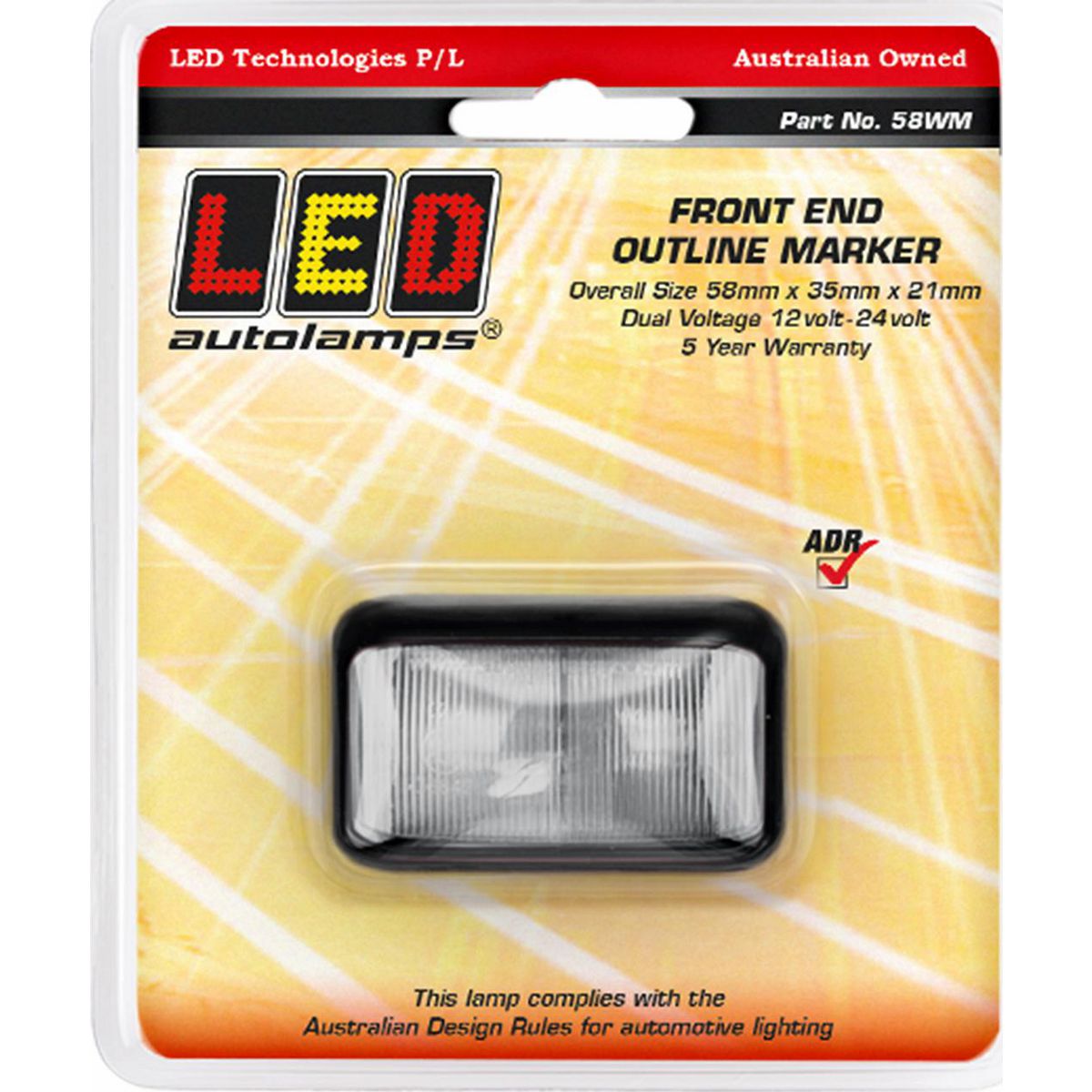

This lamp measures 58mm x 35mm x 21mm and uses a hardened acrylic lens with an ABS base. It carries a white lens, bare-wire connection and blister single pack format for front marker replacement work. Part number: 58WM. Use the LED Autolamps 58 Series technical sheet when comparing lamp dimensions and current draw. The front end outline marker lamp draws 0.05A at 13.8V and 0.03A at 28V.

Compatibility and Fitment

Match the white front marker function, lamp size, voltage range and wiring style before ordering. This unit suits front outline positions, so do not substitute it for amber side markers or red rear markers. Also check the existing bracket style, because CSB plug and bulk cable variants use different ordering details.

Compliance and Safety

The lamp carries ADR front end approval for road trailer lighting use. Mount it horizontally on a flat surface, run the wires through the rear, then clip the lens into place. Before returning the trailer to service, confirm polarity, sealing, cable protection and clear front visibility.

Trailer Applications

Workshops fit this front end outline marker lamp to trailer bodies, trays, vans and equipment trailers that need a compact white front marker. Because the body stays low-profile, it helps reduce snag points around exposed corners and body edges. Fleets also benefit from the 12-24V range when the same lamp style needs to suit different trailer electrical systems.

Videos

This official 58 Series video shows the marker lamp family and lens style.
