Description

Overview

Clear lens rear indicator lamp delivers a slim rear signalling solution for trailers and transport builds where a bulky housing will not fit. The low-profile body sits only 8mm deep, so it suits tight mounting areas on rear bars, trays and custom panels. While inactive the lens stays clear, and once powered it throws a bright amber indicator signal for clean modern rear lighting.

Features

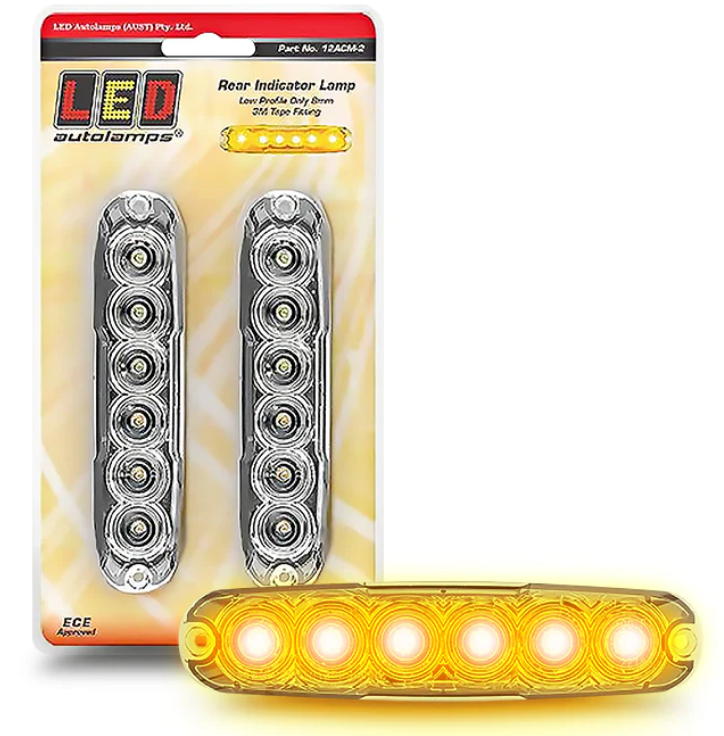

• Twin blister pack with two rear indicator lamps
• Low-profile 8mm body for tight rear mounting positions
• 3M tape and screw fitting options for flexible installation
• Dual-voltage 12-24V design with IP67 sealing

Specifications and Materials

Each lamp measures 131mm x 30mm x 8mm and carries 6 SMD LEDs for rear indicator duty. The lamp runs on 12-24V systems, uses a 250mm cable lead and supports horizontal or vertical mounting for amber and red functions. The lens uses polycarbonate, while the base uses aluminium, so the lamp keeps a light footprint without losing rigidity. Part number: 12ACM-2. See the official 12 Series data sheet

Compatibility and Fitment

Check the available mounting length, cable path and operating voltage before ordering. This lamp mounts to a clean flat surface with 3M tape and or screws, so it suits rear sections where drilling options vary from one trailer build to the next. It also helps when a fabricated rear panel leaves very little clearance behind the lamp body.

Compliance and Safety

ECE approval covers the rear indicator function, and the lamp also carries Australian road approval within the series. Follow ADR 13/00 mounting guidance when positioning the lamp, because rear indicator placement matters as much as lamp output. Before final fitment, clean the mounting face, secure the cable away from rubbing points and confirm the sealing face sits flat.

Applications

Workshops fit this clear lens rear indicator lamp on trailers, service bodies and transport builds that need a compact rear indicator without a deep housing. It also suits repair work where an older lamp has cracked, leaked or dated the rear finish. Because the pair comes in one pack, left and right rear indicator replacements stay matched in shape and light output.
