Description

Overview

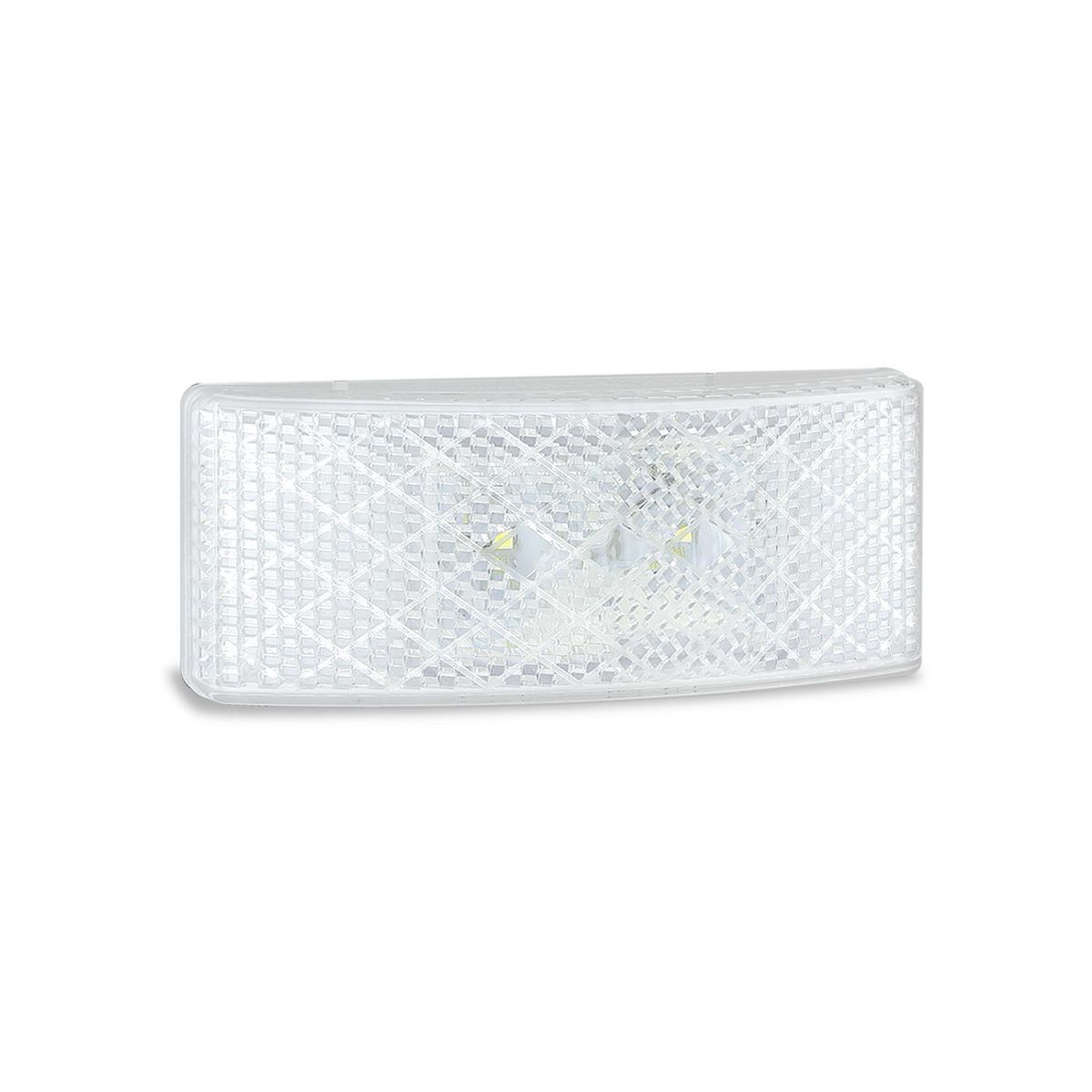

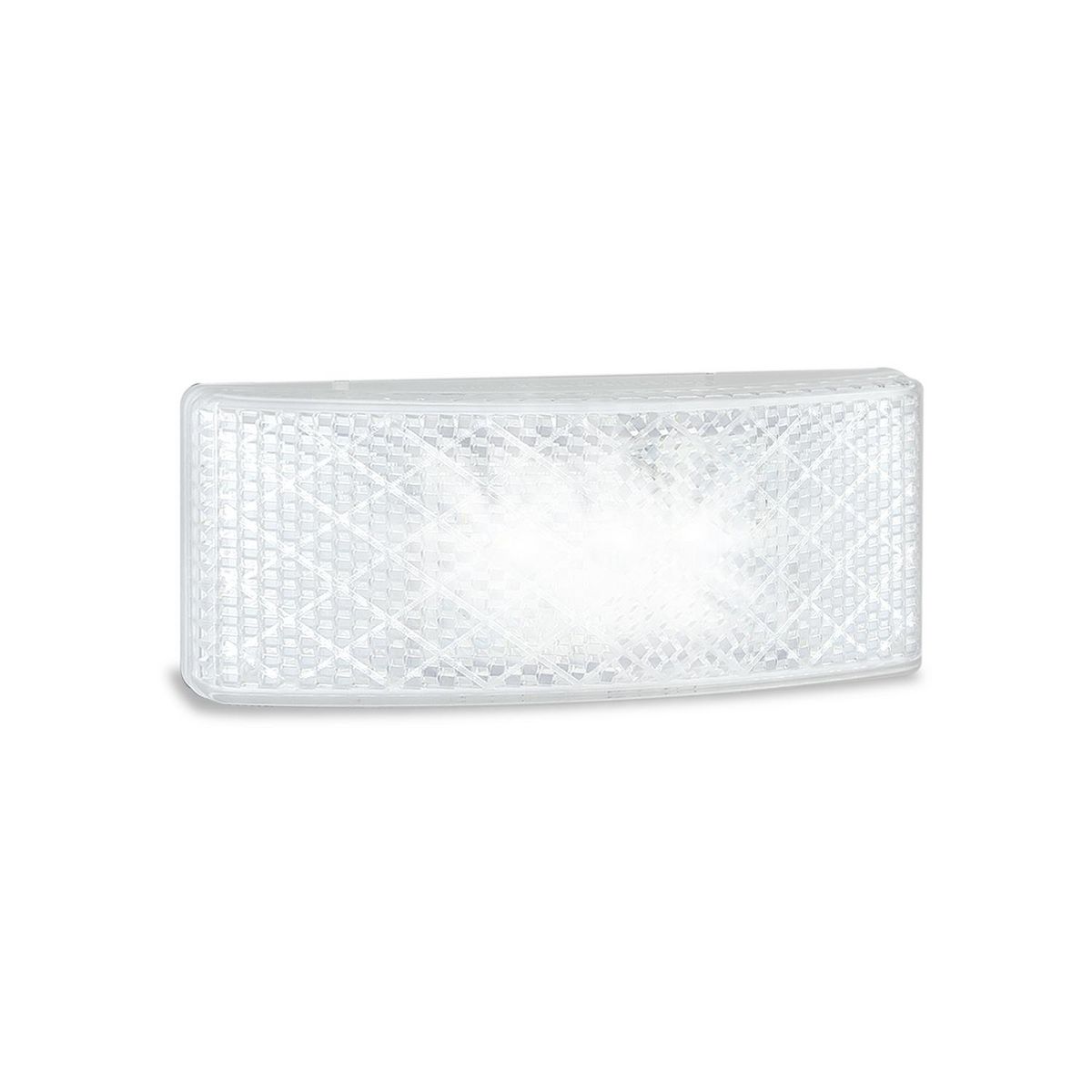

The front end outline marker lamp adds white front marker visibility with an inbuilt reflector for 12-24V trailer lighting systems. Its low-profile body suits trailer edges, body corners and tight mounting areas where a raised lamp can catch or get damaged. The heavy-duty 3M tape mount also keeps fitting clean because the lamp only needs a cable outlet hole.

Features

• White front end outline function with inbuilt reflector

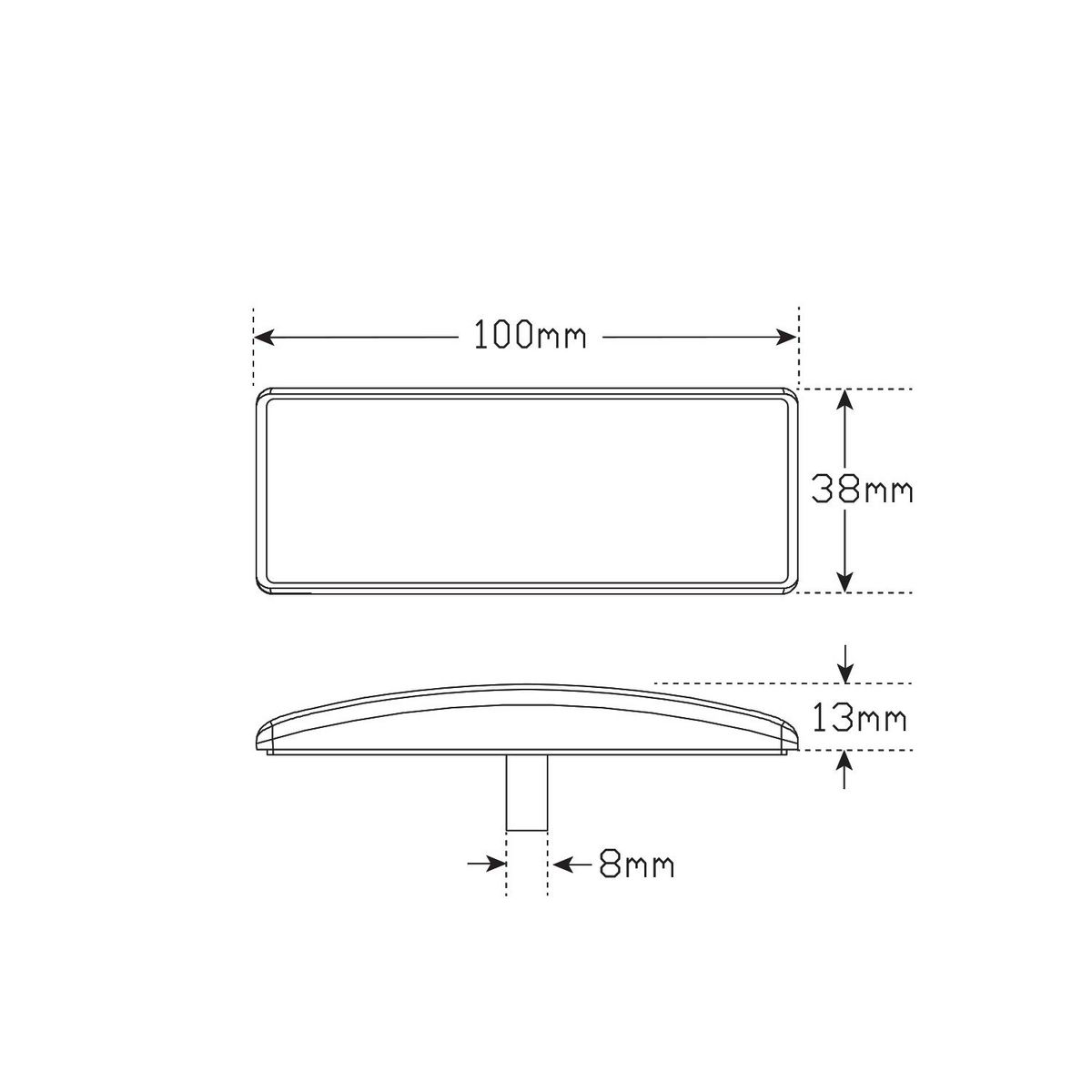

• Low-profile 100mm x 38mm x 13mm body
• 12-24V operating range for mixed trailer fleets
• IP67 rated with 5 year warranty

Specifications and Materials

This marker lamp uses a PMMA acrylic lens and ABS base, with 3 LEDs behind the white front marker lens. It mounts with heavy-duty 3M tape and suits horizontal or vertical mounting where the position meets the trailer lighting layout. Part number: EU38WMHD. Use the official EU38 Series technical sheet when comparing dimensions, approvals and current draw. The front end outline marker lamp draws 0.10A at 13.8V and 0.01A at 28V.

Compatibility and Fitment

Match the white front marker function, reflector requirement, 100mm body length, voltage range and mounting style before ordering. This lamp suits front end outline positions, so do not substitute it for amber side markers or red rear markers. Also check the cable outlet position before peeling the tape backing, because the adhesive mount needs a clean, flat surface.

Compliance and Safety

The lamp carries ECE front end outline and white reflector approvals, plus CTA approval for Australian trailer lighting use. Clean the mounting surface before fitting, then press the lamp firmly into position after feeding the cable through the outlet hole. After installation, confirm the lamp faces the correct direction and remains clearly visible from the front.

Trailer Applications

Trailer builders and repairers fit this front end outline marker lamp to vans, trays, plant trailers and equipment trailers that need a compact white front marker with reflector coverage. Because it combines the lamp and reflector in one low-profile body, it keeps the front corner lighting tidy without adding a separate reflector nearby.
