Overview

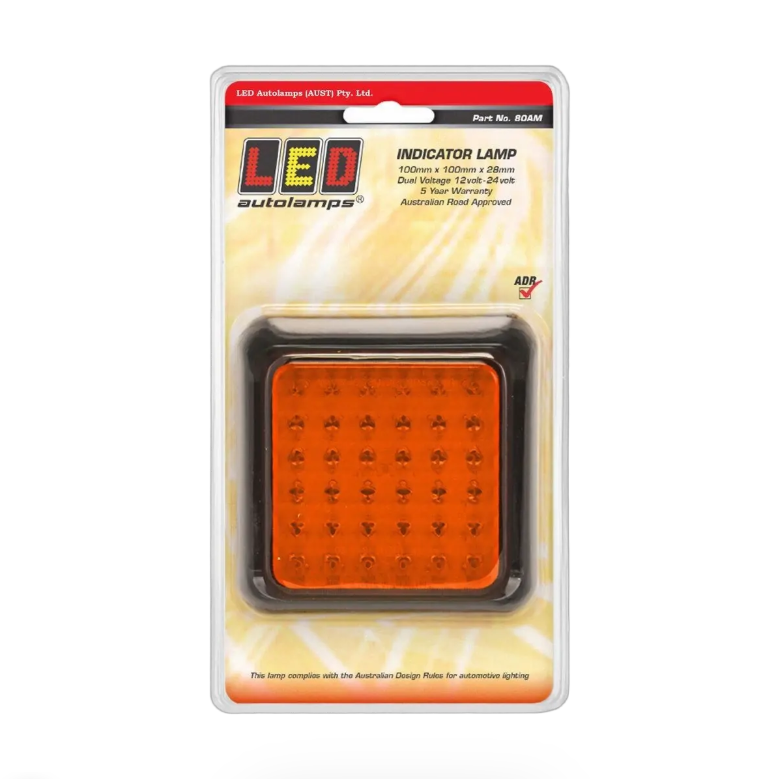

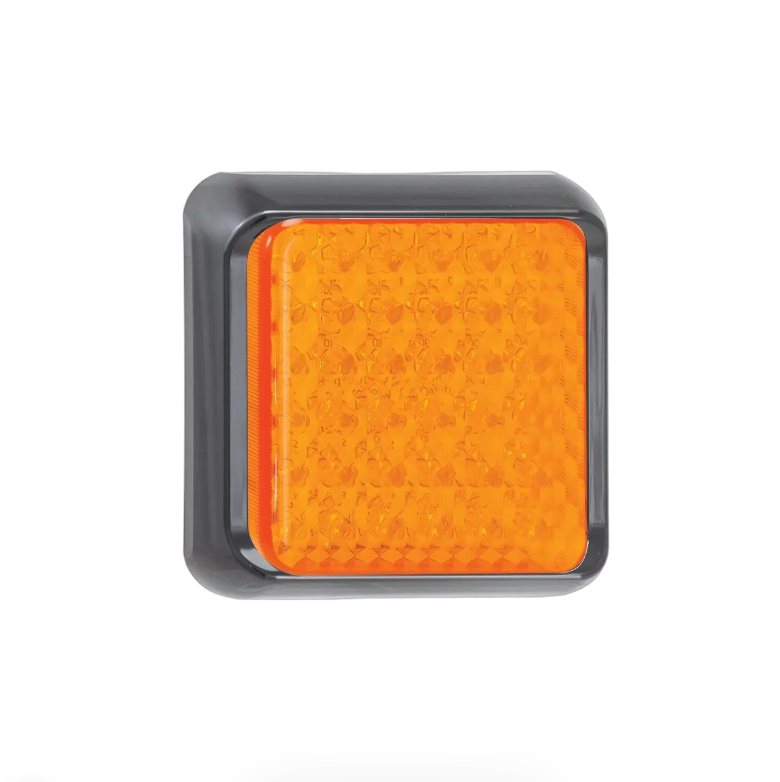

12/24V indicator lamp delivers clear trailer direction signalling in a compact square housing built for surface mounting. It suits repair work, trailer rewires, and lamp replacements where you want a sealed LED unit with a replaceable lens and straightforward wiring. Because the lamp carries 36 LEDs and a low-profile bracketed body, it keeps indicator output bright without adding bulk.

Features

• 36 LED indicator lamp for trailer signalling duties
• Clip-in replaceable lens for simpler service work
• IP67 waterproof construction for exposed trailer use
• 40cm pre-wired cable with 12-24V multivolt operation

Specifications and Materials

This lamp measures 100mm x 100mm x 28mm, so it suits square single-function lamp positions on trailers and rigid bodies. It runs on 12-24V systems, carries 36 LEDs, and uses a 40cm cable for direct wiring. The lens uses PMMA and the bracket uses ABS, which keeps the unit light while still handling day-to-day trailer service conditions. Current draw measures 0.31A at 13.8V and 0.22A at 28V. The lamp also carries ADR approval for indicator function under category 6/00 2a with CRN 33098. Part number: 80AM. For technical data, see the official 80 Series specification sheet

Compatibility and Fitment

Check the lamp size, system voltage, and indicator function before ordering. This lamp mounts to a surface bracket, runs its wires through the back, and then clips the lens into place, so it suits trailer builds and repairs that need a square single-function indicator lamp rather than a combination light. If you are replacing an existing unit, compare housing size, cable entry, and mounting style first.

Compliance and Safety

Follow ADR 13/00 mounting instructions, then confirm the lamp sits securely and remains clearly visible in the required position. Because the wiring runs through the back of the bracket, protect the cable path from rub points and test the indicator circuit before the trailer returns to service.

Trailer Applications

Workshops fit this 12/24V indicator lamp to trailers, plant bodies, and equipment where a square surface-mount indicator suits the rear lighting layout. It also works well for replacement jobs where you want a tidy housing, low maintenance LED output, and a lens that clips in without changing the whole lamp body.
