Description

Overview

Multivolt load module corrects fast flashing in LED indicator circuits and helps resolve light-failure warnings on late model vehicles. It suits lighting conversions where LED lamps replace incandescent globes and the circuit then needs added load. Because it runs across 9-32V systems, the same module suits common trailer, truck, and heavy-vehicle electrical setups.

Features

• Detects vehicle ohm requirements for warning-sensitive circuits
• Corrects fast flashing indicators after LED conversions
• IP67 rated steel housing for exposed electrical installations
• 18AWG leads with 100mm cable each side for direct wiring

Specifications and Materials

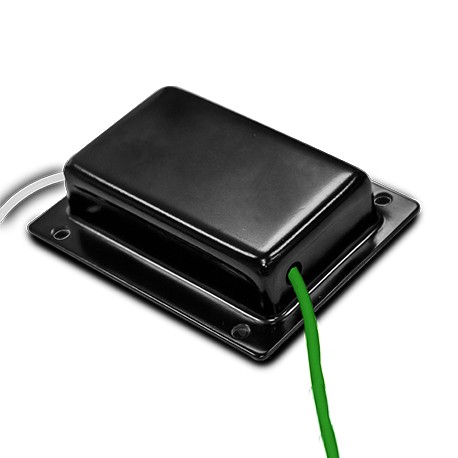

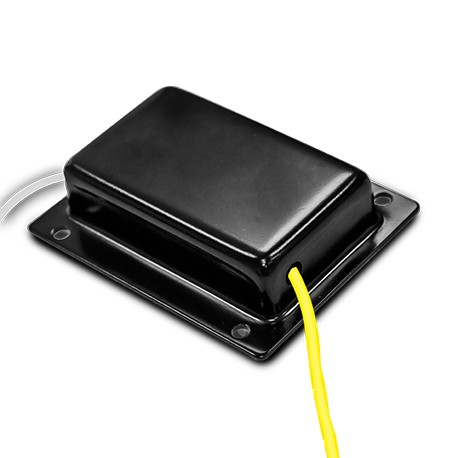

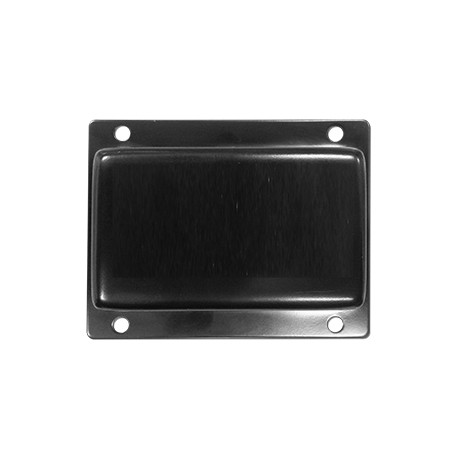

This multivolt load module measures 82mm x 64mm x 19mm and carries a steel housing that transfers heat when mounted correctly. It runs on 9-32V, uses 18AWG leads with 100mm cable each side, and draws 14.5W at 12.8V plus 16.68W at 28V. Resistance measures 11.3 ohms at 12.8V and 47 ohms at 28V, so the module adds load for circuits that need it. Part number: LRM-2.

Official LED Autolamps load module spec sheet sets out the technical data and wiring layout for this module.

Compatibility and Fitment

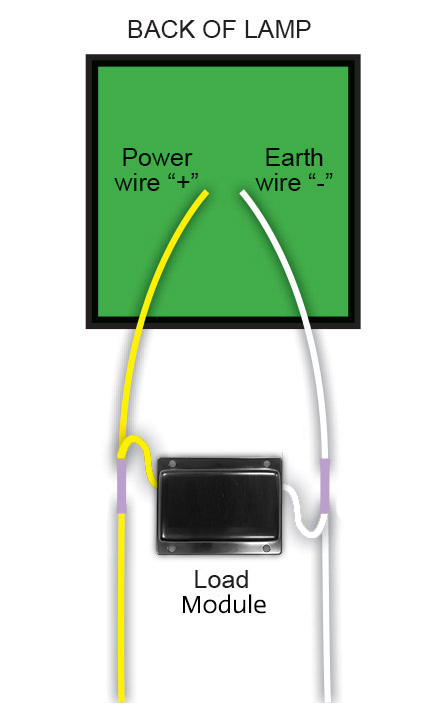

Check the system voltage, confirm the fault is fast flashing or a light-failure warning, and wire the module into the lamp input wires before ordering. Join the white wire to earth and the coloured wire to the lamp power wire, then mount the body to metal so it can shed heat properly. You may need one module per function on each side, so count each indicator circuit before you buy.

Compliance and Safety

Mount this module on a metal surface because it can exceed 100°C in operation. Keep it clear of plastics, loom tape, and other heat-sensitive materials, and wire it between the lamp input wires rather than to the chassis. If the earth path is poor, lighting problems can continue, so test the circuit before the vehicle or trailer returns to service.

Trailer Applications

Workshops fit this multivolt load module when LED indicator upgrades on trailers or towing vehicles trigger fast flashing or warning messages. It also suits repair jobs where a sealed module and direct wiring matter more than a larger resistor assembly. When a trailer lighting circuit needs a compact load solution, this part keeps the install neat and easy to route.
