Description

Overview

12V rear indicator strip lamp handles rear direction indication on trailer and heavy-vehicle lighting setups where a slim surface-mount lamp is needed. The clear lens keeps the lamp tidy when inactive, while the amber LED output gives the rear indicator function once powered. Its low 10mm profile also helps when the lamp needs to sit neatly on a flat rear panel, toolbox, body frame or light bar.

Features

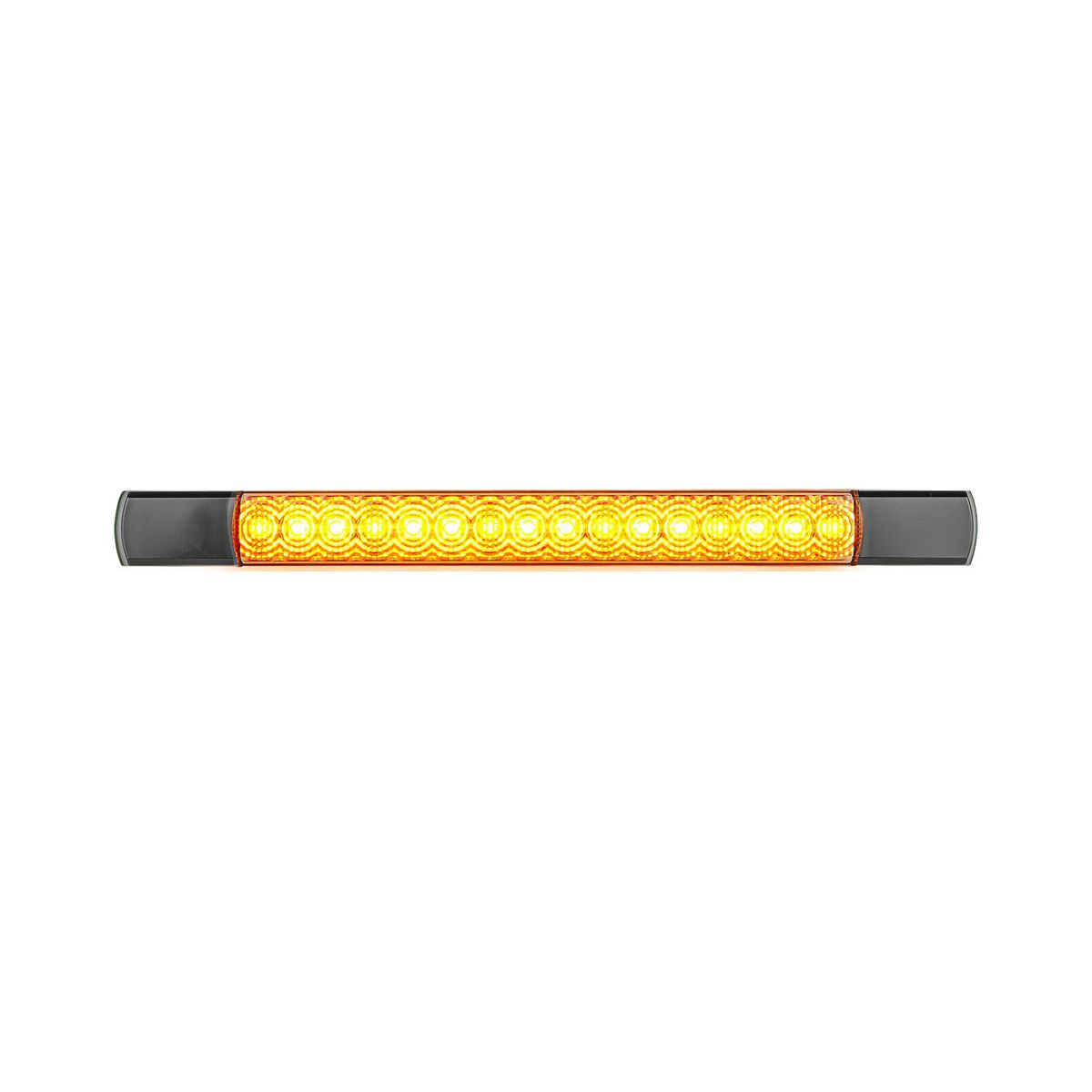

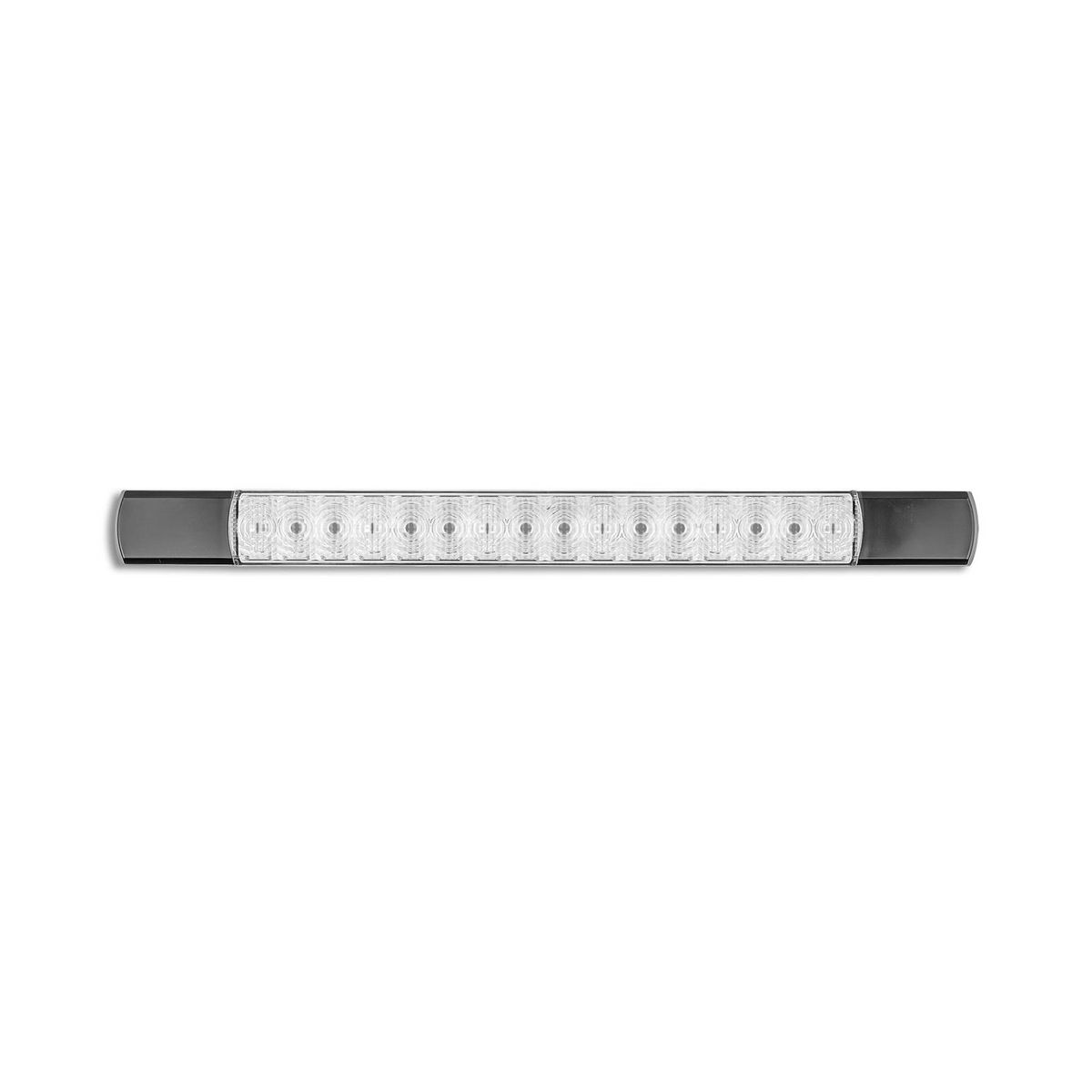

• 16 LED rear indicator function with clear lens when inactive.
• 12V-only operation with 0.20A draw at 13.8V.
• Surface-mount body with 266mm fixing centres and 85mm cable.
• IP67 rated slimline body with black end caps.

Specifications and Materials

Part number: 285BA12.

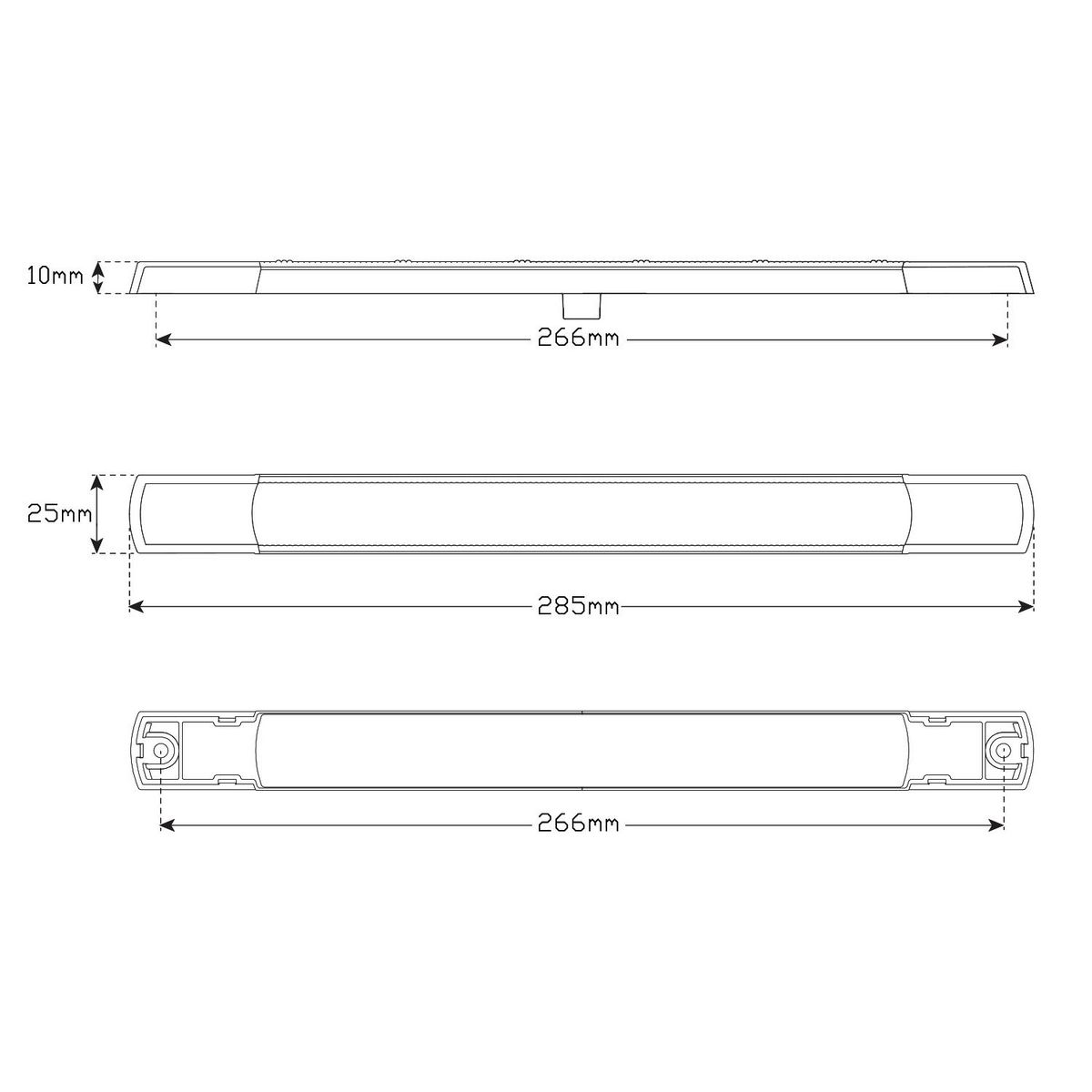

This lamp measures 285 x 25 x 10mm, so check the available panel space before replacing a longer or deeper lamp. The surface-mount design lets the installer remove the end caps, screw the lamp to a flat surface, then refit the end caps for a clean finish.

The manufacturer technical guide covers the 285 Series lamp family.

Compatibility and Fitment

Match the rear indicator function, 12V supply, surface-mount space, 266mm fixing centres and 85mm cable length before ordering. This 12V rear indicator strip lamp can mount horizontally or vertically, so it suits flat rear lighting positions where the installation still meets the trailer’s road-lighting layout.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm indicator colour, lamp position, mounting direction and wiring polarity before road use. Also check the trailer’s lighting layout against ADR 13/00 mounting requirements, because the lamp position matters as much as the lamp approval.

Trailer Applications

Trailers use this style of slim rear indicator where a standard block lamp takes up too much depth or looks untidy on a narrow mounting face. The 12V rear indicator strip lamp suits replacement work on enclosed trailers, service bodies, equipment trailers and light commercial trailer builds where a clean amber rear indicator is required.

Why Choose ICS Trailers

ICS Trailers keeps trailer lighting grouped for practical repair work, so matching rear lamps, marker lamps and wiring parts stays straightforward when a trailer comes in for service.

Browse more trailer lighting parts in LED Lights
