Description

Overview

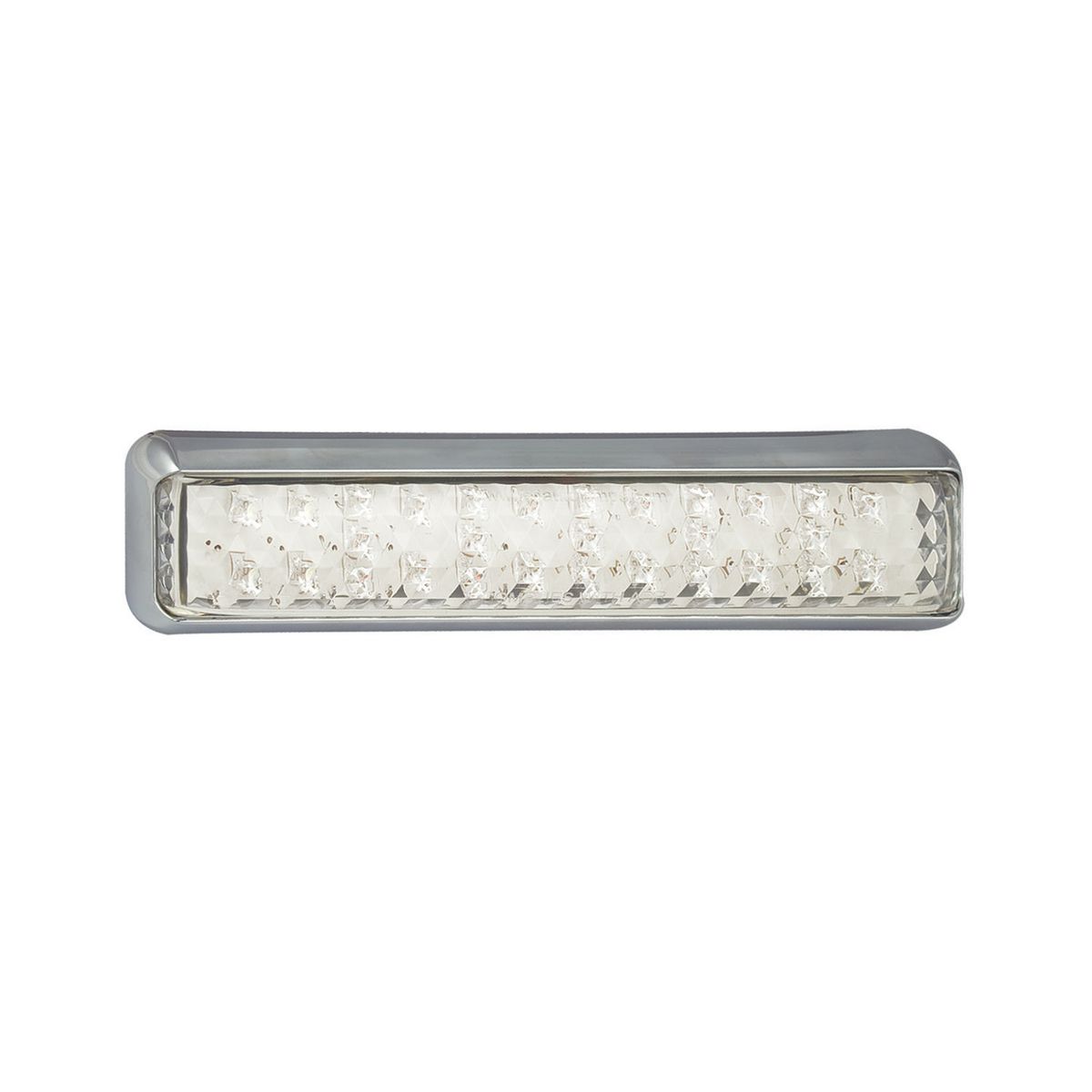

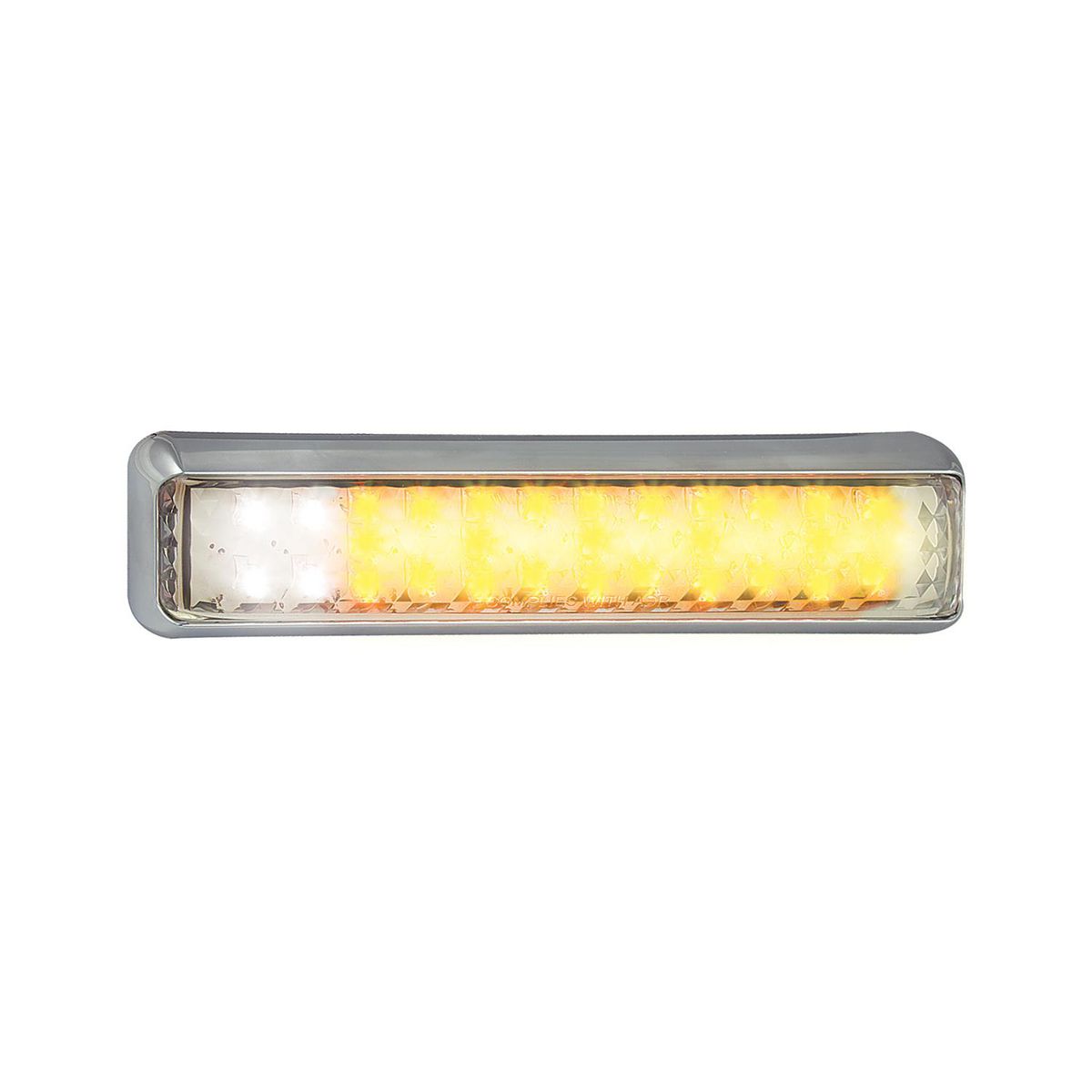

24V front indicator position lamp handles front direction indication and front position lighting on trailers, trucks and heavy-vehicle bodywork. The rectangular lamp combines amber indicator output with white position lighting in one low-profile surface-mount body, so it suits front corner lighting where the panel has limited depth. The chrome bracket also gives the lamp a clean finish on exposed bodywork, bull bars or fabricated mounting panels.

Features

• Front indicator and front position marker functions in one lamp.
• 29 LED layout with 40cm hard-wired cable.

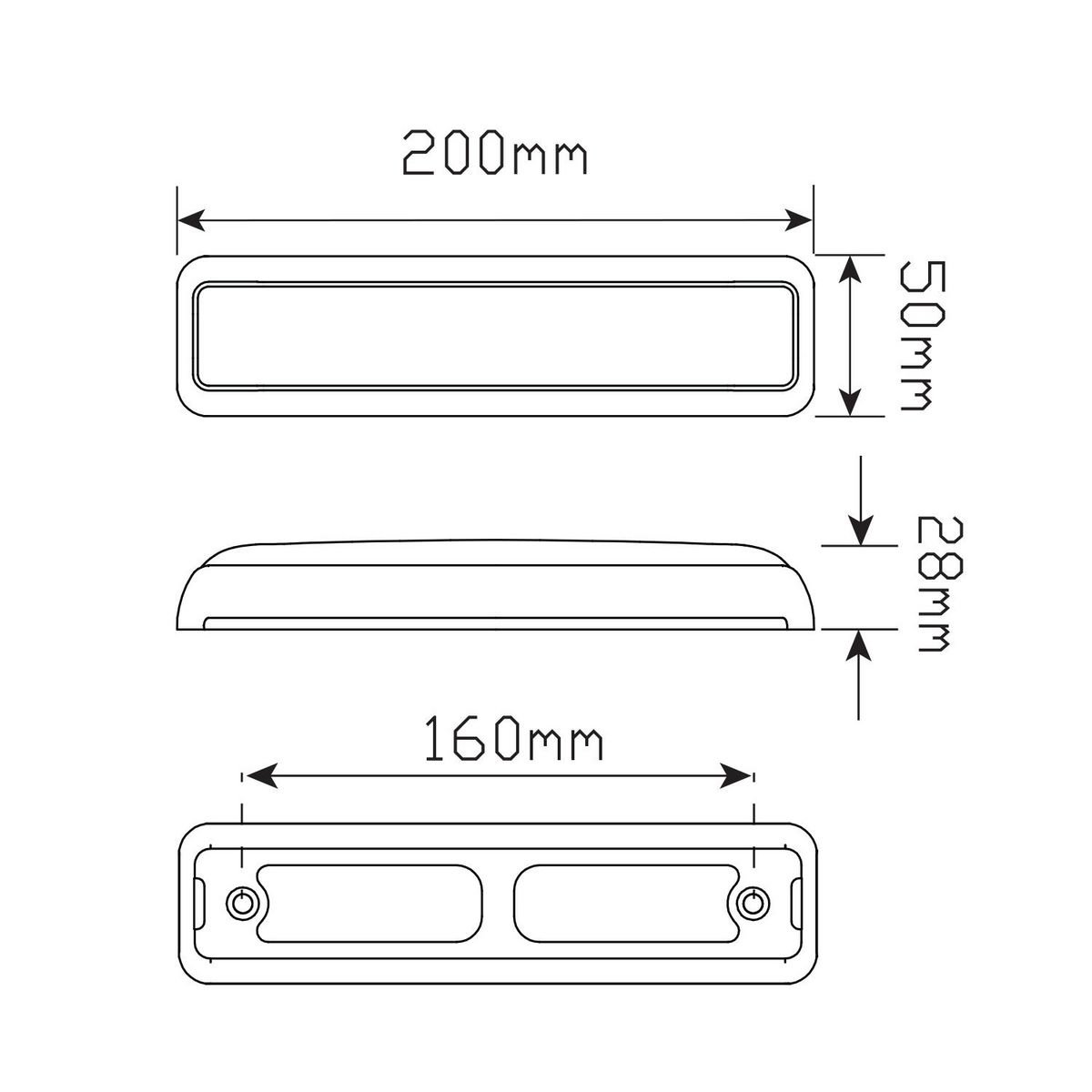

• Low-profile 200mm x 50mm x 28mm surface-mount body.
• IP67 rated body with ADR indicator and position approvals.

Specifications and Materials

Part number: 200CAW/24.

This 24V front indicator position lamp uses a hardened acrylic lens and ABS bracket. The lamp draws 0.08A for the indicator function and 0.02A for the position function at 28V, so check the trailer wiring and voltage before fitting.

The manufacturer technical guide covers the matching 200 Series front indicator and marker lamp family.

Compatibility and Fitment

Match the 24V supply, front indicator function, front position marker function, chrome bracket style and 200mm x 50mm mounting footprint before ordering. The lamp mounts horizontally onto a flat surface, then the lens clips into place after the body has been secured.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm lamp position, mounting direction, wiring polarity and front lighting layout before road use. Also check the trailer setup against ADR 13/00 mounting requirements, because a compliant lamp still needs the correct mounting location and orientation.

Trailer Applications

Workshops fit this style of rectangular front combination lamp on truck bodies, trailers and equipment builds that run a 24V lighting system. The 24V front indicator position lamp suits front corner replacement work where one compact lamp needs to cover both indicator and front position functions.

Why Choose ICS Trailers

ICS Trailers keeps lighting parts grouped around trailer repair work, so front lamps, marker lamps, brackets and wiring parts can be matched during service instead of treated as isolated items.

Browse more trailer lighting parts in LED Lights
