Description

Overview

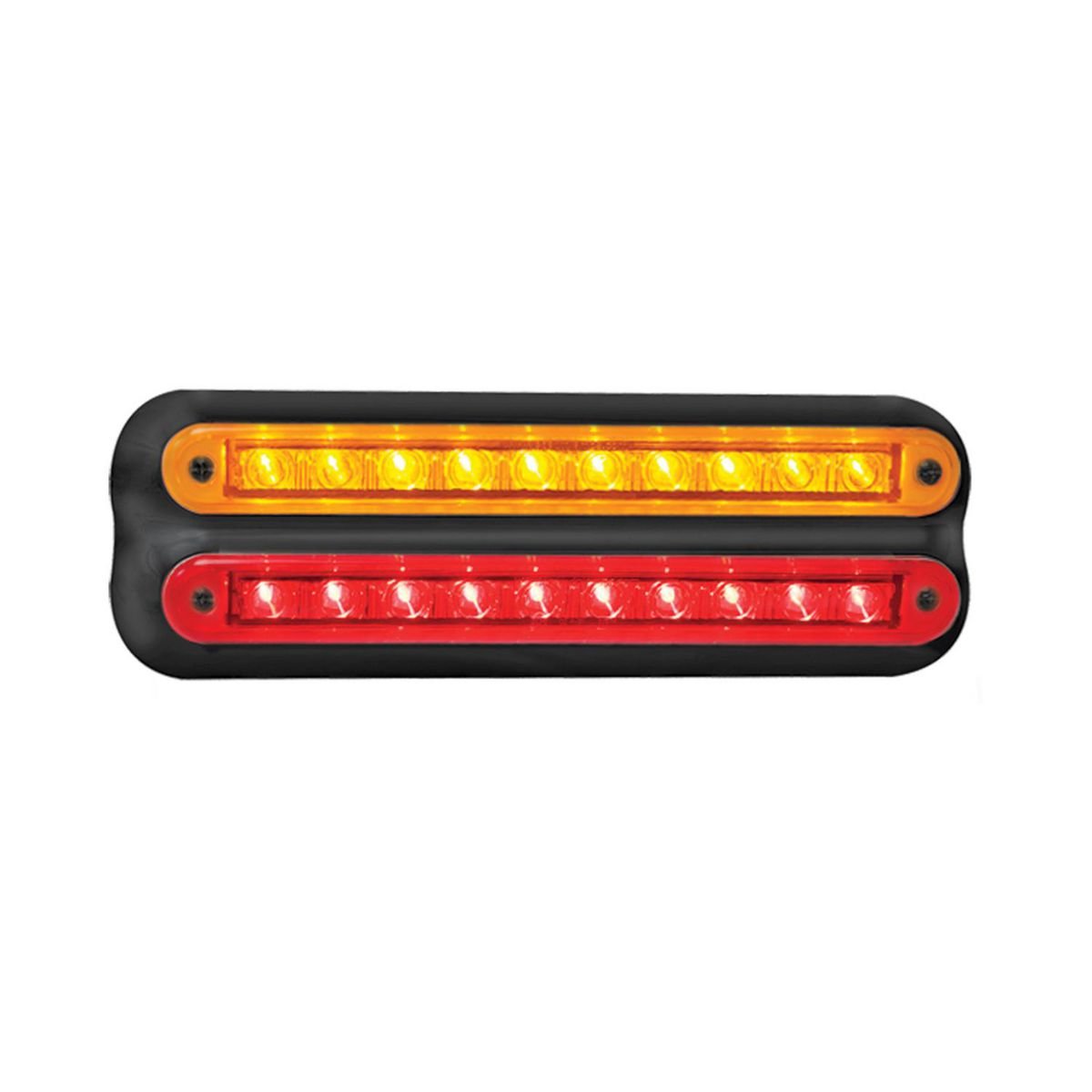

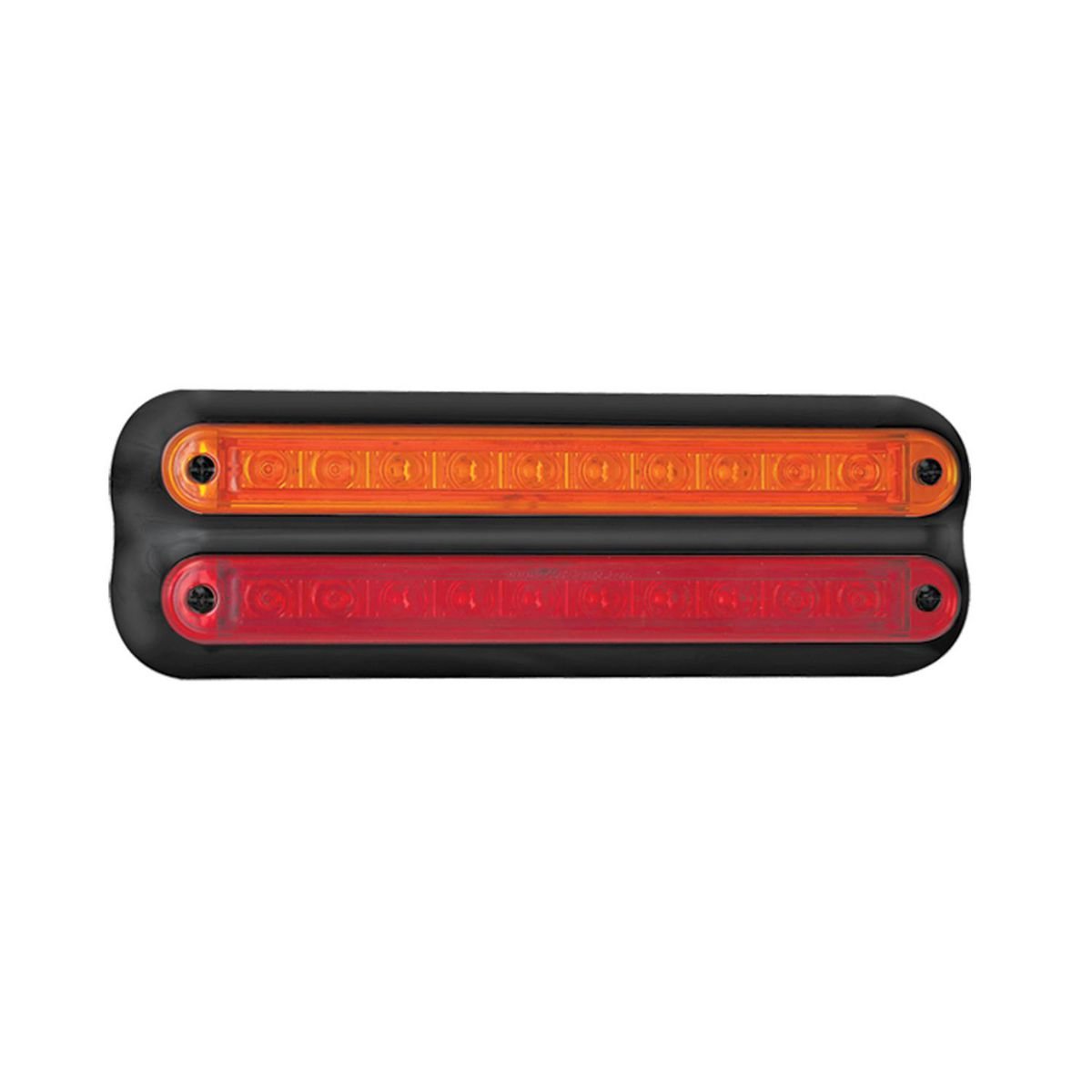

LED stop tail indicator strip lamp combines rear stop, tail and indicator functions in one low-profile 12V surface-mount lamp for trailers and commercial vehicles. The slim body keeps the rear lighting layout tidy, while the separate red and amber lens sections help make the lamp easy to identify during replacement.

Features

• Combines stop, tail and indicator lighting in one rear strip lamp.
• Surface-mount bracket suits flat rear mounting positions.
• IP67 rating helps protect the lamp against water and dust ingress.
• ADR approved for stop/tail and indicator functions.

Specifications and Materials

Part number: 235BAR12.

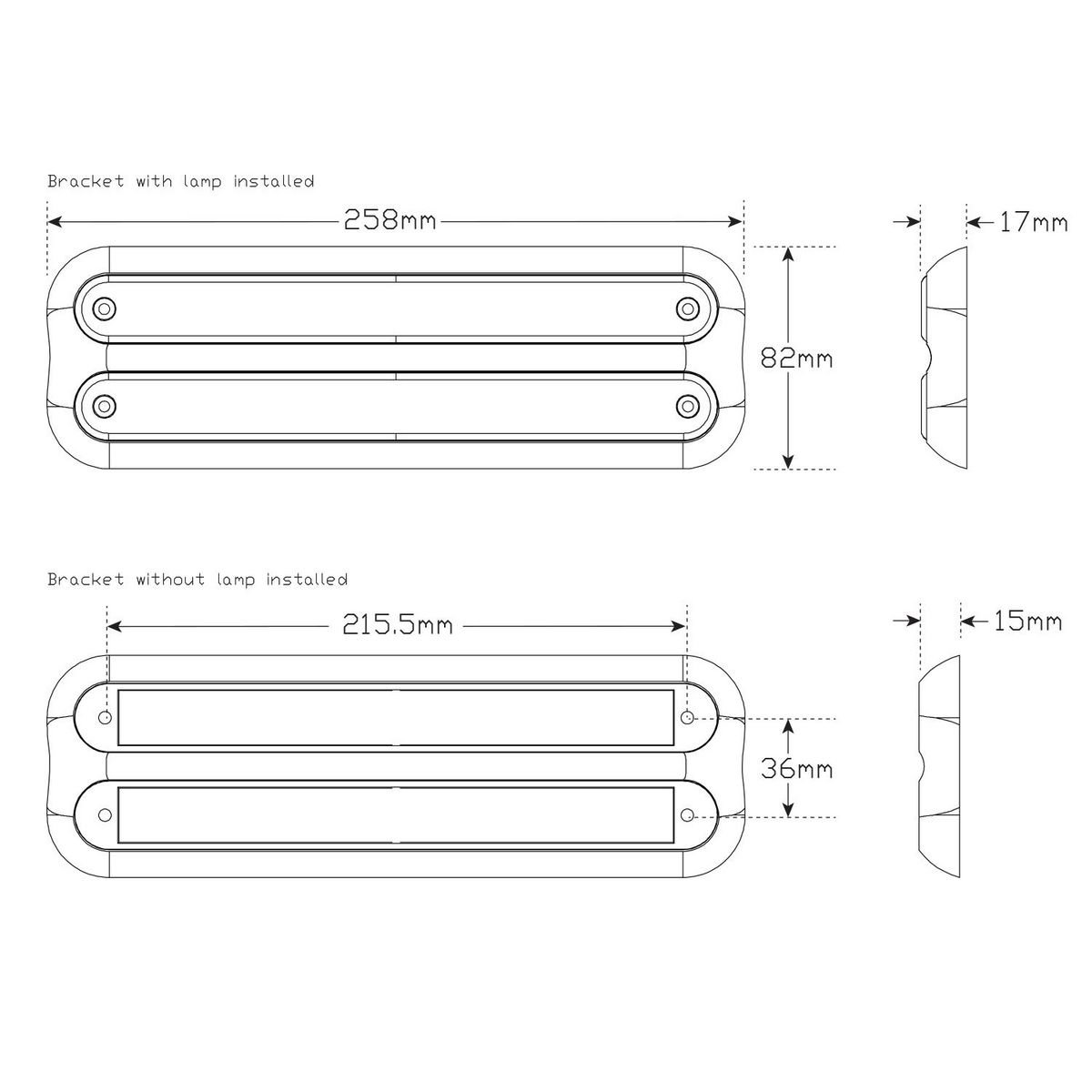

This LED stop tail indicator strip lamp measures 258mm x 82mm x 17mm and runs on 12V systems only. It uses 20 LEDs with a 40cm cable, polycarbonate lens and ABS base. Current draw at 13.8V measures 0.14A for stop, 0.04A for tail and 0.16A for indicator.

See the LED Autolamps 235 Series technical page

Compatibility and Fitment

Match the voltage, rear lamp function, mounting space and cable setup before ordering. This lamp suits horizontal mounting on a flat surface, with wiring run through the fixing surface. Wire colours are brown for tail, red for stop, yellow for indicator and white for earth.

Compliance and Safety

Confirm the rear lamp position against the trailer lighting layout before fitting. Also check the mounting face, wiring condition and earth connection, because poor contact or water-damaged wiring can cause dim or intermittent rear lighting.

Trailer Applications

Workshops fit this LED stop tail indicator strip lamp when replacing compact rear combination lighting on trailers, caravans, utes and commercial vehicle bodies. The 258mm strip format suits setups where a low-profile rear lamp gives enough function without using separate stop, tail and indicator units.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting for repair work, fleet maintenance and workshop fit-outs, with practical parts support for matching rear lamp function, voltage and mounting style. Browse more products in LED Lights
