Description

Overview

Ringfeder 50mm Coupling Repair Kit restores key wear components inside Ringfeder automatic trailer couplings, so the coupling closes and locks with the correct feel. It suits workshop major services on 50mm couplings where guide bushes, wear pads and locking hardware have started to loosen or bind. Because these parts work together, replacing them as a set helps you avoid chasing recurring play or uneven wear.

Features

• Refreshes internal wear points that influence coupling bolt alignment and smooth operation
• Targets common service items during major repair on 50mm Ringfeder coupling bodies
• Helps reduce rattle and inconsistent engagement that can develop as bushes wear
• Practical kit format so you can service and return the coupling to duty sooner

Specifications and Materials

Part number: TC7503G.

• Coupling size: 50mm drawbar eye couplings
• Suits coupling types: Ringfeder 303 AUS, 202 AUS, 101 AUS

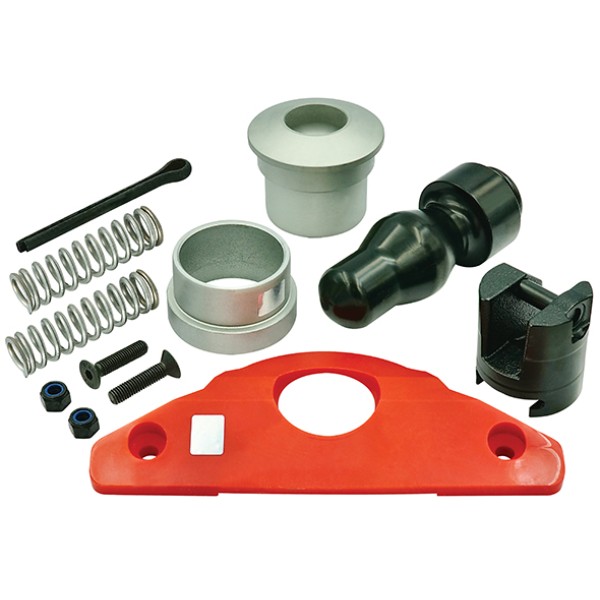

• Kit contents: top and bottom guide bushes
• Kit contents: nylon wear pad with mounting hardware, coupling bolt, two locking springs, split pin 8mm x 125mm

Use the Ringfeder repair kit technical specifications for the latest fitment and service information.

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 101AUSKIT, 14991632

Compliance and Safety

A coupling repair affects a primary safety connection, so only service it if you have the correct tooling and procedures for heavy trailer coupling hardware. Also check the coupling body for cracking, elongated holes, or damaged retainers before you fit new parts, because fresh bushes will not fix a worn housing. After assembly, verify positive locking and safe release function, then re-check after the first period of use.

Trailer Applications

Ringfeder 50mm Coupling Repair Kit suits dog trailers and drawbar combinations that use Ringfeder 50mm automatic couplings in Australian road service. It also suits fleets that schedule preventative maintenance, because the kit supports repeatable servicing across common coupling models. If you are unsure which coupling you have, confirm the coupling type plate or casting marks first, then match the service items to the correct maintenance routine.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Confirm the coupling model and service scope before ordering.
