Description

Overview

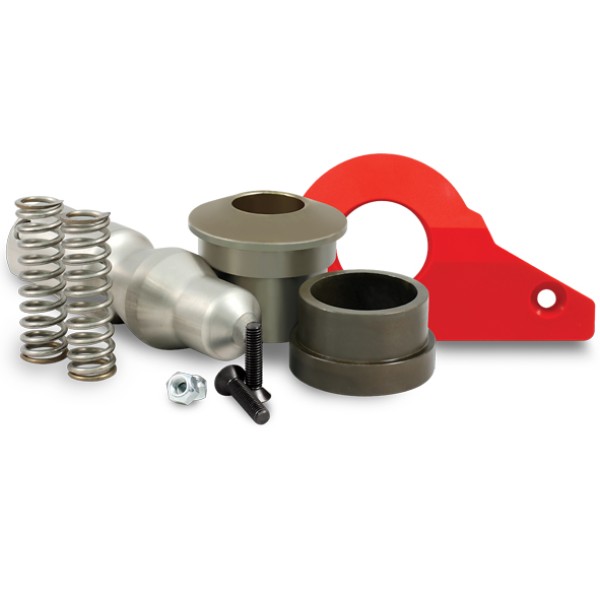

Ringfeder Major Repair Kit 50mm restores wear parts in Ringfeder Model 96G trailer tow couplings so the lock closes cleanly and holds the drawbar eye with less free play. Because coupling internals wear gradually, fitting a full major kit helps you bring the coupling back to a predictable feel during inspections and scheduled servicing.

Features

• Refreshes the main wear components used in 96G tow coupling service
• Helps tighten coupling operation when jaw, pins or bushes have developed play
• Supports planned maintenance so you can avoid partial repairs and repeat strip downs
• Suits common 50mm drawbar eye applications where the coupling model matches

Specifications and Materials

This kit is a major service pack intended for Ringfeder Model 96G couplings, so it targets the parts that control jaw movement, locking engagement and guided rotation. Use Ringfeder Major Repair Kit 50mm when you want to renew the locking wear parts in one service event. It typically includes bushes, pins, springs and fasteners used during an overhaul, however you should confirm the contents against your coupling version before you start. Part number: TC7501G.
For inspection intervals and service checks, use the Ringfeder coupling inspection and servicing guide when you service tow couplings.

Compatibility and Fitment

Check the coupling identification plate and confirm you have a Ringfeder 96G body and a 50mm drawbar eye arrangement before ordering, because similar couplings can use different repair kits. If you find uneven wear, also inspect the drawbar eye and mounting hardware so the repaired coupling runs true after reassembly.
This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 13994277, 81G5KIT, 81G5kit, 131024, 095.985, 095985

Compliance and Safety

Follow the OEM repair steps and torque settings, because tow coupling hardware carries high loads and small mistakes can cause a bad latch condition. After assembly, confirm the lock indicator shows a fully closed position and then test coupling operation at low speed before returning to service. If any jaw or latch surfaces show cracks, heavy pitting, or abnormal deformation, replace the coupling body instead of rebuilding it.

Trailer Applications

Use Ringfeder Major Repair Kit 50mm during servicing of drawbar trailers, dog trailers and converter dollies that run Ringfeder 96G couplings on a 50mm drawbar eye. It also suits plant and equipment trailers where frequent coupling cycles accelerate bush and pin wear, so a complete kit helps reduce downtime.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

You get a repair kit that suits common Australian trailer coupling service work, so you can plan maintenance without hunting separate pieces. If you are unsure about coupling identification, ask and we will help you confirm fitment before you order. Browse Tow Couplings at ICS Trailers using Browse Tow Couplings at ICS Trailers
