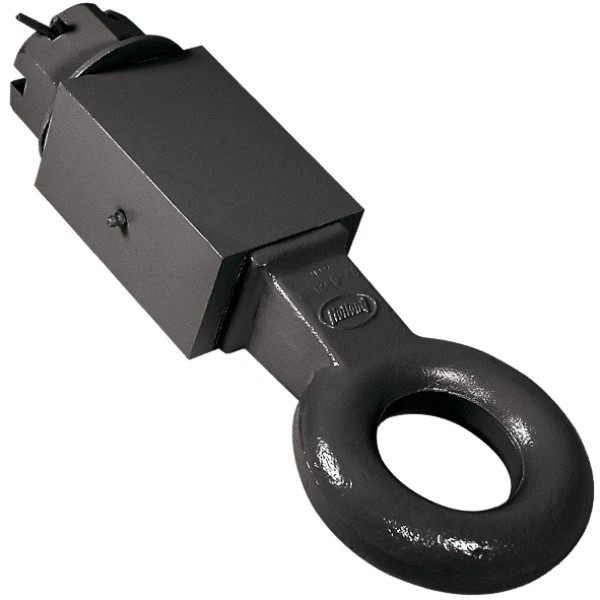

SAF Holland swivel drawbar assembly carries heavy trailer towing loads through a weld-on swivel housing and 3″ drawbar eye. It suits on-road hinged drawbar trailer applications where the coupling hardware, eye size, D-value and load rating must match the trailer setup before service.

Features

• 3″ (76mm) drawbar eye with 1.63″ (41mm) diameter section.
• 150 kN D-value rating for approved heavy trailer towing setups.
• Robust steel block sleeve with grease fitting for swivel drawbar service.
• Forged, heat treated one-piece steel eye and shaft with hardened eye I.D.

Specifications and Materials

Part number: TC3490.

The SAF Holland swivel drawbar assembly uses a weld-on 3″ housing block and a 152mm x 51mm shaft. The drawbar eye measures 3″ I.D. with a 1.63″ section, while the rated maximum gross trailer weight is 20,412 kg and the rated maximum vertical load is 4,086 kg.

For severe off-road applications, reduce the published capacity before use and check the complete towing setup against the coupling and trailer design.

SAF-HOLLAND DB-610-30 product information

Compatibility and Fitment

Match the 3″ eye, 1.63″ section, 150 kN D-value, housing block and shaft size before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DB-610-30, DB61030, DB-61030S, DB61030S

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the eye profile, shaft, sleeve, nut, washer, cotter pin and grease fitting during service. If the coupling parts show wear, damage or missing hardware, replace the affected components before the trailer returns to work.

Trailer Applications

Trailer builders and repairers use the SAF Holland swivel drawbar assembly on hinged drawbar towing setups where a 3″ eye and swivel mount suit the coupling arrangement. Also, check the mating pintle hook or coupling jaw for wear so both sides of the towing connection share load correctly.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies tow coupling parts for heavy trailer repairs, drawbar service and fleet maintenance. When a drawbar eye or swivel housing needs replacement, check the matching service hardware at the same time so the towing connection remains secure.
