5 Spoke TN GP Trailer Axle 1820 Track
5 Spoke TN GP Trailer Axle 1820 Track
$1,924.00
5 spoke TN GP trailer axle for 22.5″ dual wheel trailer applications, with 1820mm track, 11.5 tonne capacity, grease lubrication and 3/4 x 2 1/2 – 10UNC studs. Match it against the axle code, hub style and brake setup before ordering.
Part number KF22AG14J1820N30S.
Description
Overview

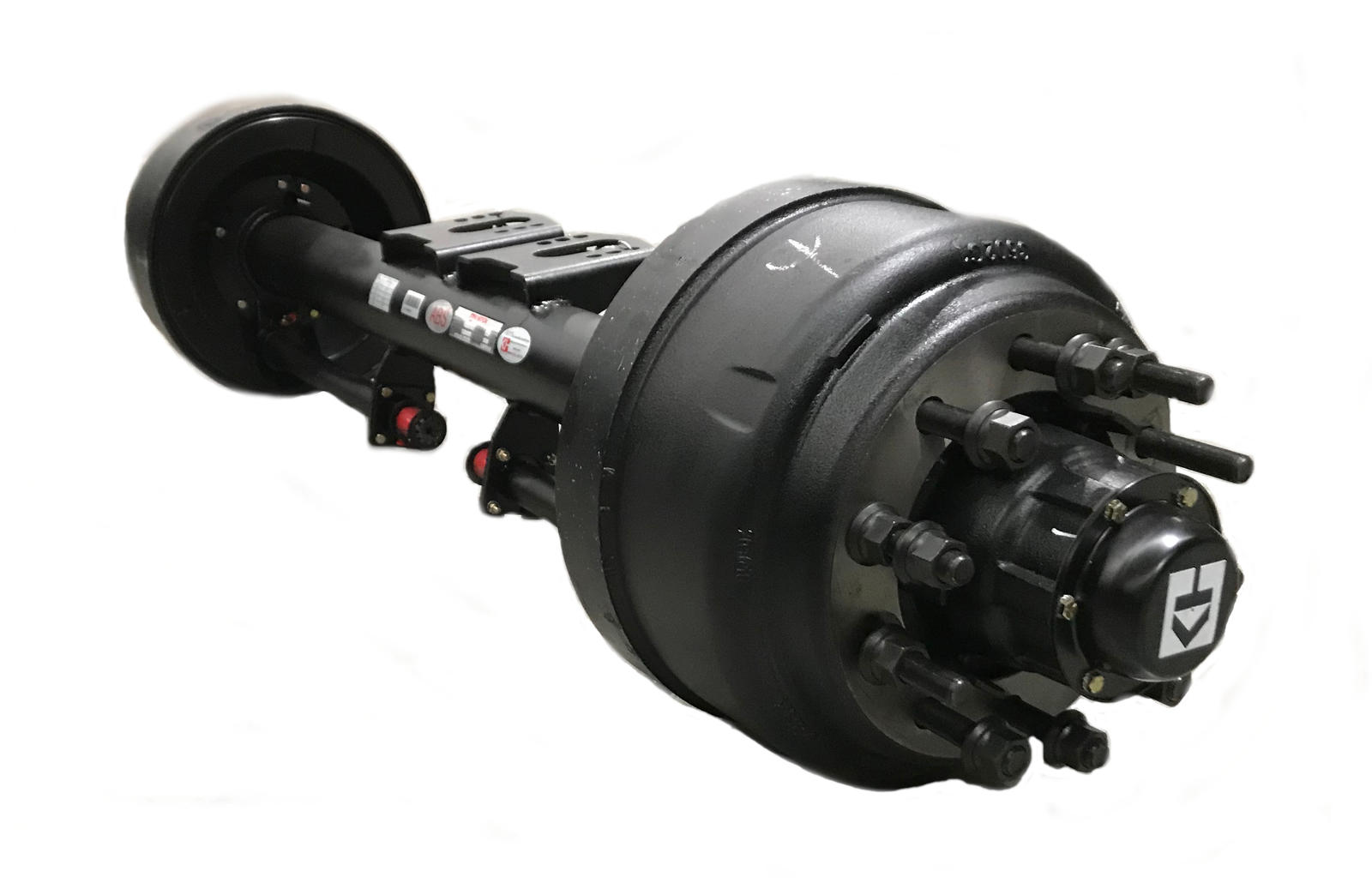

5 spoke TN GP trailer axle carries 22.5″ dual wheel trailer wheel ends with a 5 spoke hub setup, 1820mm track and GP drum brake hardware.
This axle suits heavy trailer builds and axle replacements where the existing setup matches a TN tapered spindle, grease-lubricated wheel end, 5 spoke mounting and 11.5 tonne axle rating.
Features
- 11.5 tonne rigid drum brake axle for heavy trailer applications
- 1820mm track with round 127 x 15mm axle beam
- 5 spoke wheel-end setup with 3/4 x 2 1/2 – 10UNC studs
- Manual slack adjuster configuration with ABS-ready axle setup
Specifications and Materials
This 5 spoke TN GP trailer axle uses a 420 x 180mm GP brake setup, also known as 16.5″ x 7″. It runs a one piece forged brake spider, enclosed 1 1/2″ 10 spline camshaft and grease lubrication.
Part number: KF22AG14J1820N30S.
The TN configuration uses a tapered spindle, so match the hub, drum, bearing, stud and brake setup before ordering.
Use the manufacturer KF22 axle information when checking axle-series context
Compatibility and Fitment
Check the axle model, track length, brake size, spindle type, wheel-end type, stud size and lubrication type against the removed axle. Also confirm the slack adjuster setup, ABS requirement and brake chamber position before fitting.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Hub and drum to suit | KH3600/GF | 5 spoke hub/drum assembly |
| Hub to suit | KH3601/GF | 5 spoke hub assembly |
| Drum to suit | KH3602/GF | 5 spoke brake drum |
| Stud to suit | KH800106 | 3/4″ NC wheel stud |
| Nut to suit | KH800098 | 3/4″ NC wheel nut |
| Rim clamp to suit | KH800146 | 5 spoke rim clamp |
| Brake service kit | D20-020101K | Brake shoe kit |
| Manual slack adjuster | 278323EF | Positive lock slack adjuster |
| Cam tube kit to suit | C30-0201-604K | Cam tube kit |
Compliance and Safety
Confirm the axle rating, brake specification, suspension layout and wheel equipment before installation. If the trailer has mixed axle history, compare both sides carefully because hub, stud, clamp and cap details can change across service life.
After fitting, complete normal brake adjustment, wheel-end checks and workshop sign-off before the trailer returns to service.
Trailer Applications
Workshops fit this axle to heavy trailer setups running 22.5″ dual wheels, 5 spoke hubs and GP drum brakes. A 5 spoke TN GP trailer axle suits service jobs where the trailer needs a complete axle replacement rather than only a hub, drum, bearing or brake shoe repair.
Why Choose ICS Trailers
ICS Trailers can help match axle parts by the measurements that matter at the parts counter: track, brake size, spindle type, wheel-end style, stud size and related service hardware.
