SAF Intradrum Hub 10 Stud 285 PCD

Allan Davis on 03/06/2026

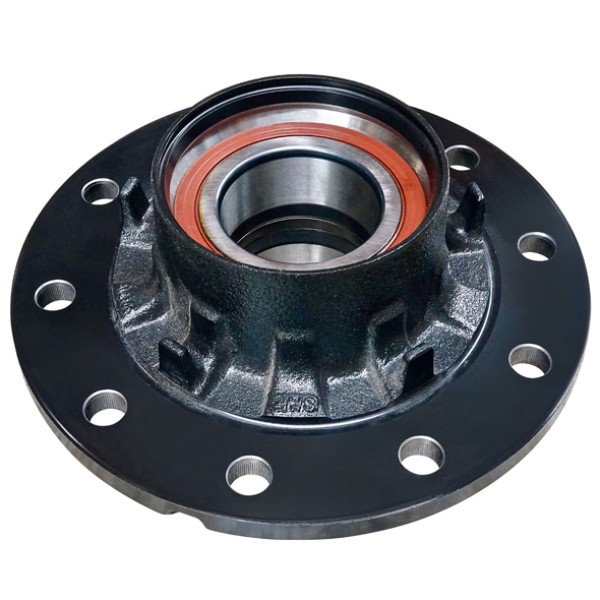

SAF Intradrum hub 10 stud 285 PCD long stud

SAF Intradrum Hub 10 Stud 285 PCD

$1,170.00

SAF Intradrum hub for heavy trailer wheel-end service, with 10 stud, 285.75mm PCD and long-stud configuration to suit matching SAF Intradrum axle and brake drum setups.

Part number AP3451.

Out of stock

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: AP3451 Category: Tags: , , , , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

SAF Intradrum hub supports the wheel-end assembly on SAF Intradrum trailer axles with a 10 stud, 285.75mm PCD setup. The long-stud configuration helps suit matching wheel and drum arrangements where the trailer runs the SAF Z9-4218 NG Intradrum brake layout.

Features

  • 10 stud hub unit for SAF Intradrum axle applications.
  • 285.75mm PCD helps match 10 / 285 wheel-end setups.
  • Long-stud configuration suits matching SAF Intradrum service arrangements.
  • Matches 420mm x 180mm brake assemblies when the hub and drum setup is confirmed.

Specifications and Materials

This SAF Intradrum hub suits 10 stud wheel-end setups with 285.75mm PCD. Match it against the axle model, brake size, hub nut, brake drum and existing hub identification before ordering. Part number: AP3451.

The hub unit belongs to the SAF Intradrum wheel-end layout and pairs with the matching 420mm x 180mm brake drum, hub nuts, hub cap, wheel studs and wheel nuts listed for that assembly.

See the SAF-Holland trailer spare parts catalogue

Compatibility and Fitment

Check the existing hub number, PCD, stud count and axle family before ordering. Also confirm whether the trailer uses the 10 x 285.75mm SAF Intradrum hub layout rather than the 10 x 335mm version.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 3 307 3057 00, 3307305700

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Brake drum to suit AP0908G 10 x 285PCD brake drum
Hub nut LH AP6138 M75 x 1.5 axle nut
Hub nut RH AP6139 M75 x 1.5 axle nut
Wheel stud to suit AP7513 M22 x 1.5 x 112 wheel stud
Wheel nut to suit AP6083 M22 x 1.5 wheel nut
Hub cap to suit AP7578 Large SAF hub cap
O-ring to suit AP7577 92 x 4mm hub cap O-ring



Compliance and Safety

Inspect the spindle, bearing areas, hub cap seal face, studs and nuts before refitting the wheel end. Replace worn or damaged hardware, then tighten hub and wheel fasteners to the correct workshop procedure for the axle. If the hub has been removed with the drum, clean the mating surfaces before reassembly.

Trailer Applications

Workshops use this SAF Intradrum hub on heavy trailer wheel ends with the SAF Z9-4218 NG Intradrum axle and 420mm x 180mm brake setup. Fleets should compare the existing hub, brake drum and PCD before ordering because SAF Intradrum layouts also include other PCD variants.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

3 307 3057 00 3307305700



Why Choose ICS Trailers

ICS Trailers supplies wheel-end parts for heavy trailer axle repairs, including matching hub, brake drum, nut, stud and hub cap components. This SAF Intradrum hub gives parts buyers a clear starting point for matching the 10 stud 285.75mm PCD wheel-end setup.

Browse more trailer wheel-end parts in the Brake Drums / Hubs category
