Description

Overview

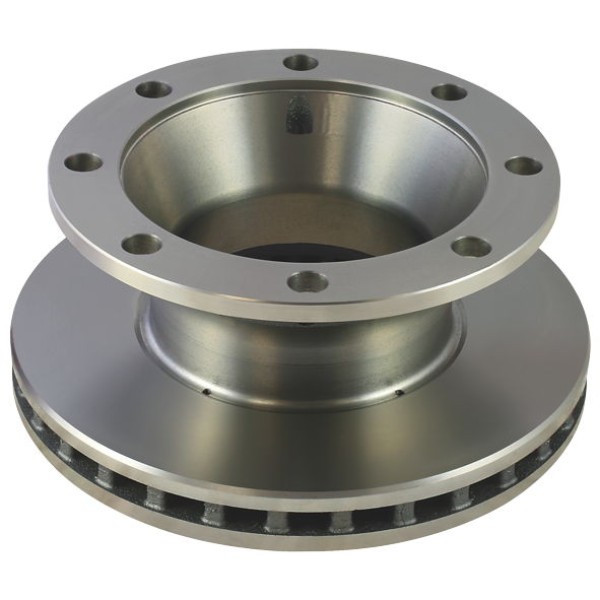

BPW disc rotor supports heavy trailer disc brake service on 8 hole, 275mm PCD wheel-end setups. The vented 377mm rotor suits 19.5” wheel applications and helps match BPW TSB3709, BPW SKH, BPW SKM, SKH ECO, Knorr SB 3745 and Knorr SB 6 brake setups.

Features

• 377mm vented brake disc for BPW trailer axle applications.
• 8 hole, 275mm PCD layout with 8 x 23mm mounting holes.
• 45mm disc thickness with 230mm centre measurement for fitment checking.
• Pairs with FB4450 and FB4450A disc brake pad sets.

Specifications and Materials

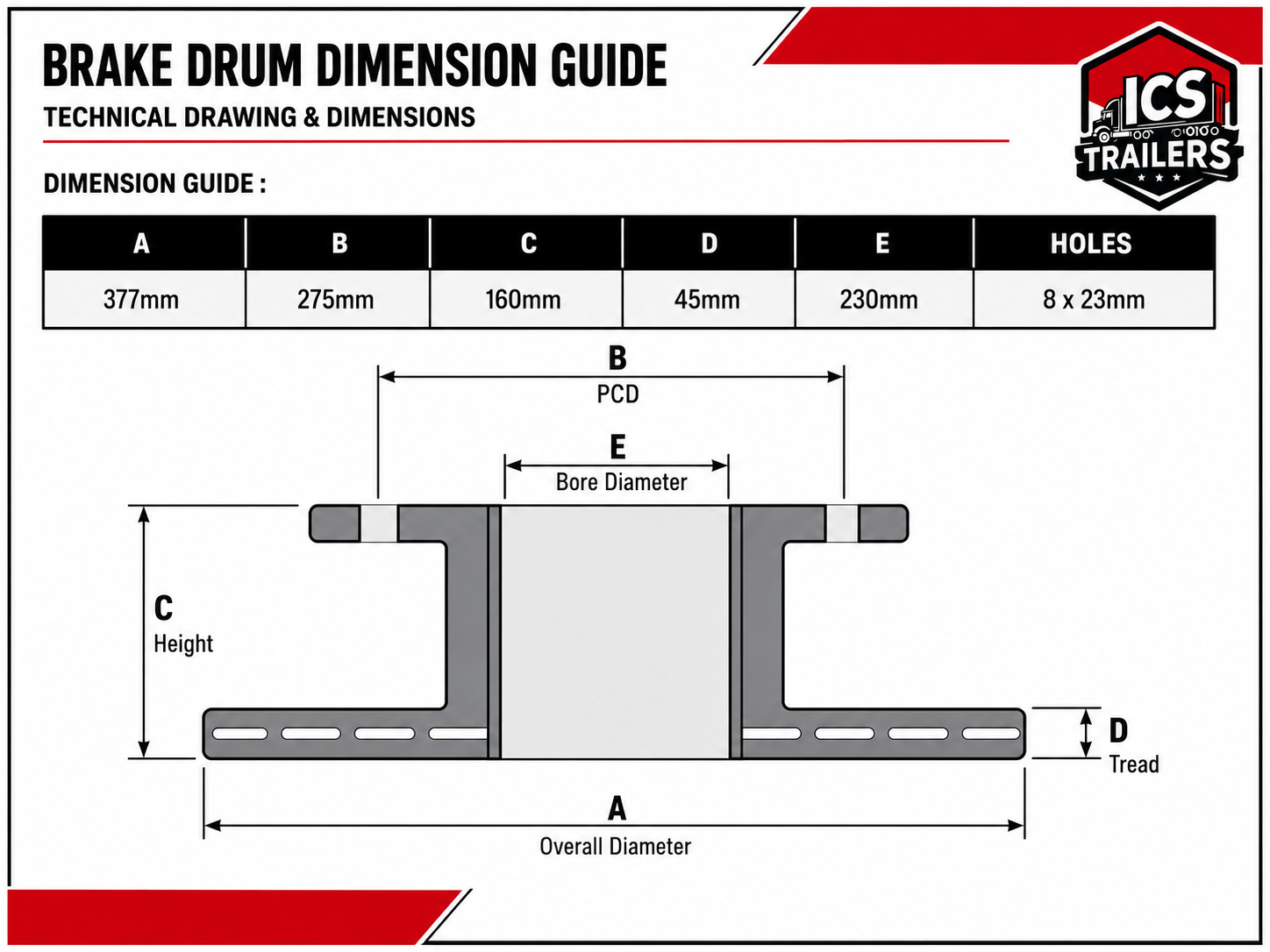

This BPW disc rotor measures 377mm across the disc with 275mm PCD, 160mm centre bore, 45mm disc thickness and 230mm centre measurement. It uses an 8 hole mounting pattern with 23mm holes. Part number: AP3202.

Match the rotor diameter, PCD, hole count, wheel size, brake model and existing rotor number before ordering.

See the BPW TSB disc brake catalogue

Compatibility and Fitment

Check this rotor against BPW SKH Series TSB3709, BPW SKM Series TSB3709, SKH ECO, Knorr SB 3745 and Knorr SB 6 brake applications. Also confirm the trailer runs 19.5” wheels and the 8 hole, 275mm PCD rotor layout.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 03.088.34.16.0, 0308834160, 160.6005.00, 160600500, KLTE0159, KLTE0139, 202514, 3132, 046.374-00, 04637400, 0308834157, 0308834037, 0308834030, 0308834017, 0308834010, MBR5062, MBR5069, BP105, 43828, BP103, 85D, 1257B, 960360, 960352, CVD598, CVD586, ADC9081V, 485775, 40-43828, 4043828, WDR586, BP1026, BP1027, 80231, BBD32886

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the disc surface, pad thickness and mounting faces before refitting the brake assembly. Replace pads before the friction material reaches the minimum service limit, because worn pads can damage the rotor and reduce braking performance. Also check for continuous cracks, heavy scoring or uneven wear before returning the trailer to service.

Trailer Applications

Workshops fit this BPW disc rotor during trailer axle brake repairs where the existing rotor matches the 377mm, 8 hole, 275mm PCD configuration. For fleet servicing, compare the rotor against the axle identification and caliper type before ordering pads or hardware.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies heavy trailer brake parts with practical fitment details for workshop and fleet ordering. This BPW disc rotor gives buyers the key rotor size, PCD, brake model and pad pairing information needed before service work begins.

Browse more trailer rotor parts in the Disc Brake Rotors category
