GP TP Trailer Axle 10 x 285 1850 Track

Allan Davis on 25/05/2026

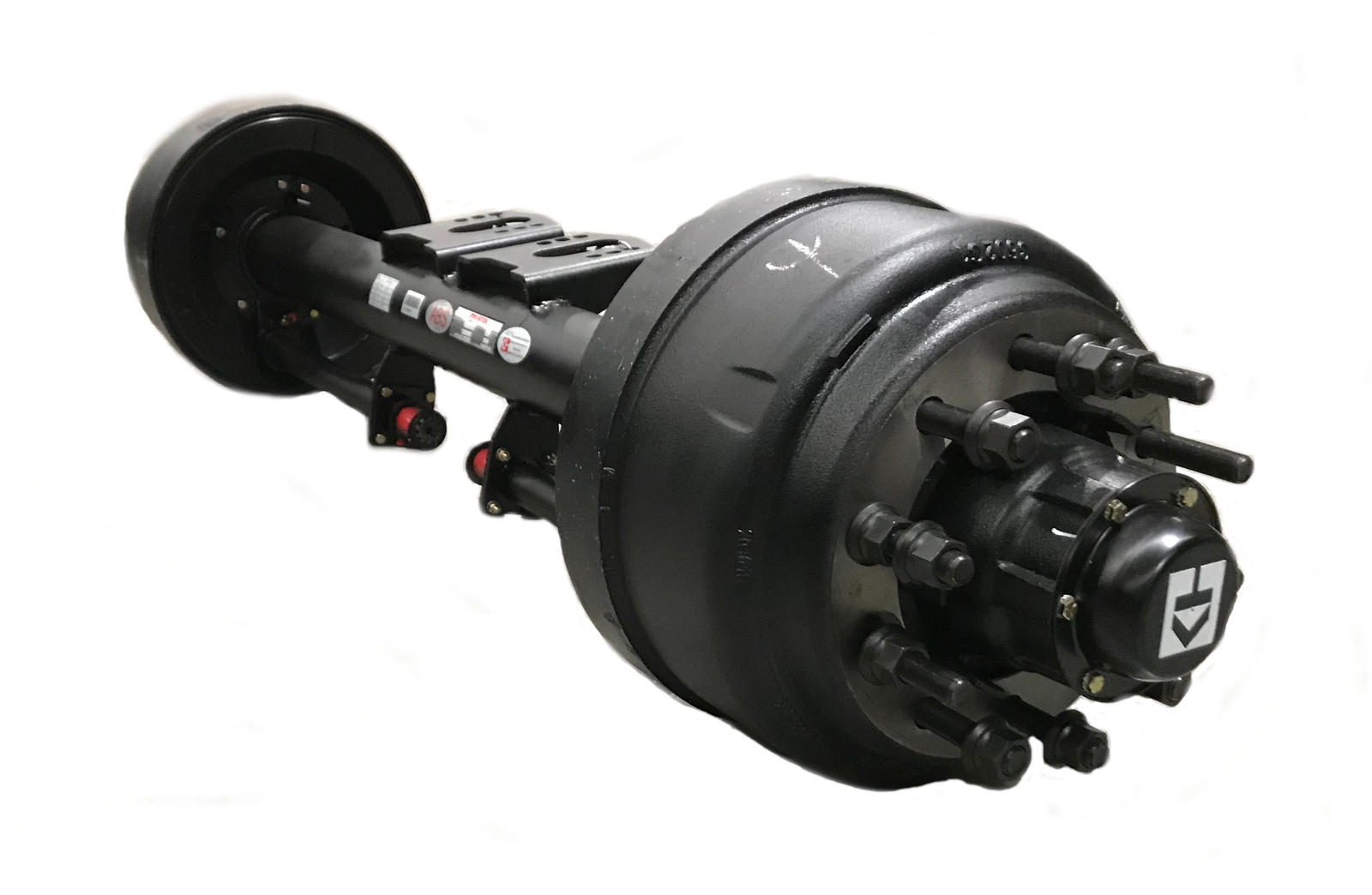

GP TP trailer axle 10 x 285 1850 track

GP TP Trailer Axle 10 x 285 1850 Track

$1,924.00

GP TP trailer axle for 22.5″ dual wheel trailer applications, with 10 x 285.75 PCD, 1850mm track, 11.5 tonne capacity, grease lubrication and M22 x 1.5 x 123 long studs. Match it against the axle code, hub pattern and brake setup before ordering.

Part number KF22BG15L1850N30S.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: KF22BG15L1850N30S Category: Tags: , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

GP TP trailer axle supports 22.5″ dual wheel trailer wheel ends with 10 x 285 wheel fixing, 1850mm track and GP drum brake hardware.

This axle suits trailer builds and axle replacements where the existing setup matches the TP parallel spindle, long stud, grease-lubricated wheel end and 11.5 tonne axle rating.

Features

  • 11.5 tonne drum brake axle for heavy trailer applications
  • 1850mm track with 127 x 15mm round axle beam
  • 10 x 285.75 PCD with M22 x 1.5 x 123 long studs
  • ABS-ready setup with pole ring and sensor block fitted

Specifications and Materials

This GP TP trailer axle uses a 420 x 180mm GP brake setup, also known as 16.5″ x 7″. It carries a one piece forged brake spider, enclosed 1 1/2″ 10 spline camshaft and grease lubrication.

Part number: KF22BG15L1850N30S.

The TP configuration uses a parallel spindle, so match the hub, drum, bearing and stud setup before ordering.

Use the official axle product guide for manufacturer axle-series context

Compatibility and Fitment

Check the axle model, track length, brake size, spindle type, stud length, PCD and lubrication type against the removed axle. Also confirm whether the trailer needs manual or auto slack adjusters, ABS sensors and any hub cap or hubodometer setup before fitting.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Hub and drum to suit KH3600-0303Z Long stud hub/drum assembly
Hub to suit KH3601-0302Z Long stud hub assembly
Drum to suit KH3602-0303 Brake drum
Brake service kit D20-020101K Brake shoe kit
ABS option ABSKIT-01 ABS kit



Compliance and Safety

Confirm the axle rating, brake specification, suspension layout and wheel equipment before installation. If the trailer has mixed axle history, compare both sides carefully because hub, stud and cap details can change across service life.

After fitting, complete normal brake adjustment, wheel-end checks and workshop sign-off before the trailer returns to service.

Trailer Applications

Workshops fit this style of axle to heavy trailer setups running 22.5″ dual wheels and GP drum brakes. It suits service situations where the trailer needs a complete axle replacement rather than only a hub, drum, bearing or brake shoe repair.

Why Choose ICS Trailers

ICS Trailers can help match axle parts by the measurements that matter at the counter: track, brake size, PCD, spindle type, stud length and wheel-end setup.

View more axle parts

Online prices apply to website orders only. In-store pricing may differ.
