Description

Overview

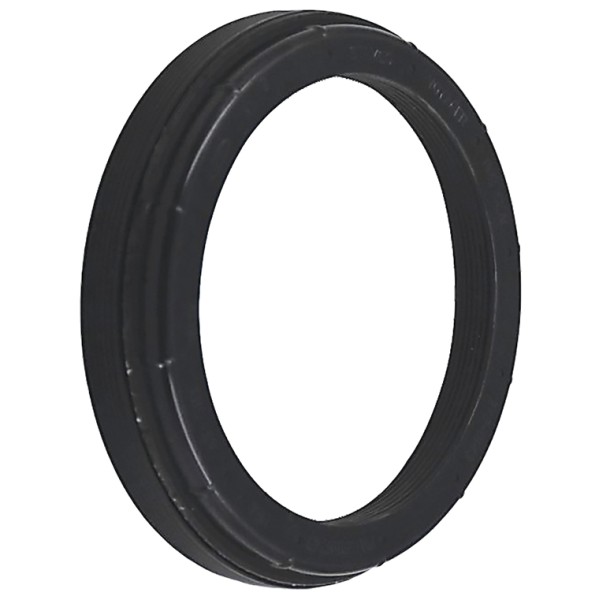

Stemco Voyager hub seal protects tapered spindle trailer wheel ends running oil, semi-fluid or grease lubrication.

This trailer hub seal suits TN and HN tapered spindle applications with SET414 inner bearing combinations. It fits workshop wheel-end service where the removed seal, spindle type, bearing set and hub bore match before installation.

Features

• Suits tapered spindle trailer TN and HN wheel ends.
• Works with 218210 / 218248 SET414 inner bearing combinations.
• Tool-fit seal for controlled installation into the hub.
• Suits oil, semi-fluid and grease wheel-end lubrication setups.

Specifications and Materials

Stemco Voyager hub seal measures 152.6mm OD, 117.48mm ID and 24.92mm deep. The Voyager design suits hub-installed trailer seal replacement where the wheel end uses the matching tapered spindle and bearing combination.

Part number: 373-0143.

Use the manufacturer hub seal chart

Compatibility and Fitment

Check the spindle family, inner bearing combination, seal bore, lubrication type and fitting method before ordering. Also inspect the hub bore and spindle shoulder because damage in either area can shorten seal life.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 307-0743, 3070743, 373-0443, 3730443, 372-7097, 3727097, 46300, 46304, 46305, 46308, 370025A, 380025A, 65060U, 69598, 70598, 303, 859, UZ0303E0.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Install the seal with the correct tool and avoid driving it in unevenly. Before refitting the hub, clean the bore, check the bearing set and confirm the wheel-end lubricant suits the axle service procedure. Replace damaged bearings, worn hub components or scored spindle surfaces before assembly.

Trailer Applications

Workshops fit this Stemco Voyager hub seal during trailer wheel-end servicing on tapered spindle trailer axle applications. It suits hub rebuilds, bearing replacement and leak repairs where TN or HN fitment and SET414 bearing details match.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies wheel-end parts for trailer repairers, operators and fleets. Match the removed seal, bearing numbers and spindle style before ordering.
