LH Camshaft 627mm 10 Spline K-Hitch
LH Camshaft 627mm 10 Spline K-Hitch
$54.00

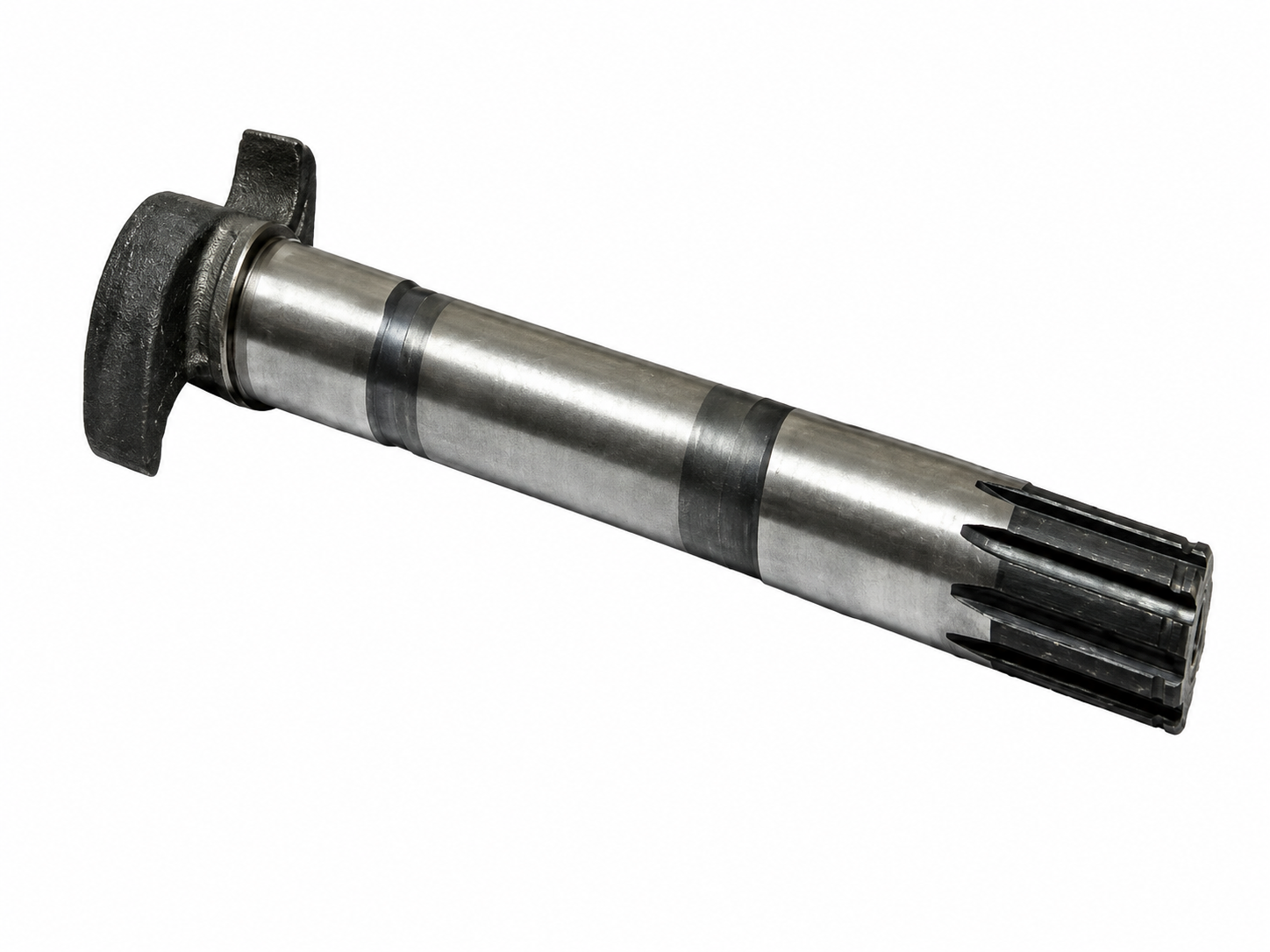

Left hand 627mm 10 spline camshaft for K-Hitch 1850 track TN and Propar axle brake setups, used to drive the S-cam brake mechanism through the cam tube and slack adjuster while matching the correct LH side.
Part number C11-0201C-627LH.
Description
Overview
LH camshaft 627mm 10 spline restores S-cam brake actuation on K-Hitch 1850 track axle setups. It suits left hand brake camshaft replacement where the axle uses the matching TN or Propar wheel end configuration.
Features
- Left hand camshaft for 1850 track axle brake service.
- 627mm shaft length with 10 spline end.
- Suits TN and Propar wheel end brake setups where the same cam length applies.
- Matches the long cam layout used in K-Hitch axle assemblies.
Specifications and Materials
Part number: C11-0201C-627LH.
The LH camshaft 627mm 10 spline fits the left hand side of the S-cam brake assembly. It runs through the cam tube and works with the brake hardware, bush, seal, washers, circlips and slack adjuster.
Use the Fuwa K-Hitch S-cam parts view when checking manufacturer S-cam assembly details
Compatibility and Fitment
Check the camshaft hand, shaft length, 10 spline end, track width and axle family before ordering. Also compare the existing cam head, cam tube length and brake hardware because the 1820 track version uses a different camshaft length.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Opposite hand | C11-0201C-627RH | RH 627mm camshaft |
| Used with | C30-0201-627 | Cam tube assembly |
| Used with | C13-0201 | Camshaft bush |
| Used with | C14-0201 | Camshaft seal |
| Used with | C12-0502 | D washer |
| Used with | C24-0401 | O-ring |
| Used with | C15-0102 | 1mm washer |
| Used with | C16-0501 | Circlip |
| Used with | C15-0202 | S-cam thrust washer |
Compliance and Safety
Inspect the cam tube, bush, seal, rollers, slack adjuster and brake shoe hardware during replacement. If the camshaft shows uneven wear or binding, then check the full S-cam assembly before returning the trailer to service.
Trailer Applications
Workshops use the LH camshaft 627mm 10 spline on heavy trailer axle brake repairs where the left hand long cam matches an 1850 track K-Hitch setup. It suits axle service work where the camshaft length and spline count must match the original part exactly.
Why Choose ICS Trailers
ICS Trailers can help match brake camshafts by hand, length, spline count, axle track and related S-cam hardware, which matters when left and right side parts are close but not interchangeable.
