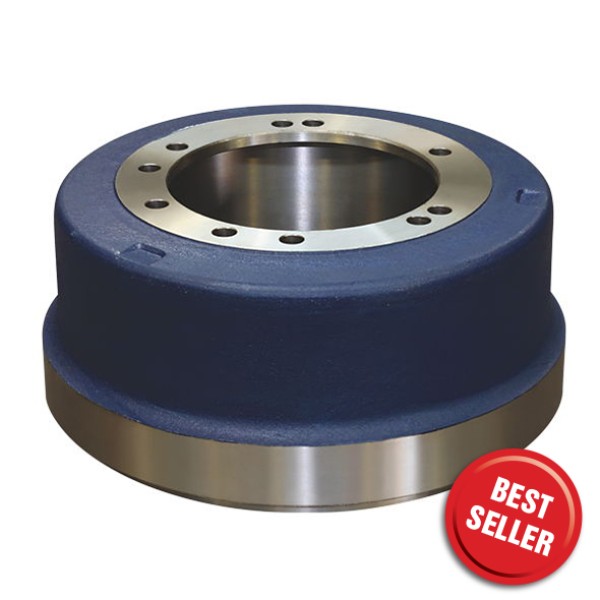

Brake Drum 16.5×7 11in PCD suits common trailer hubs that run 16.5in x 7in foundation brakes. Because drums see heat and load, matching PCD, pilot and height helps the shoes run true and reduces uneven wear.

Features

• 11-hole mounting on an 11in (279.4mm) pitch circle diameter
• 16.5in x 7in braking surface size to match standard shoes
• 9.44in (239.8mm) drum pilot to locate on the hub
• 8.25in (209.5mm) drum height for correct stack-up

Specifications and Materials

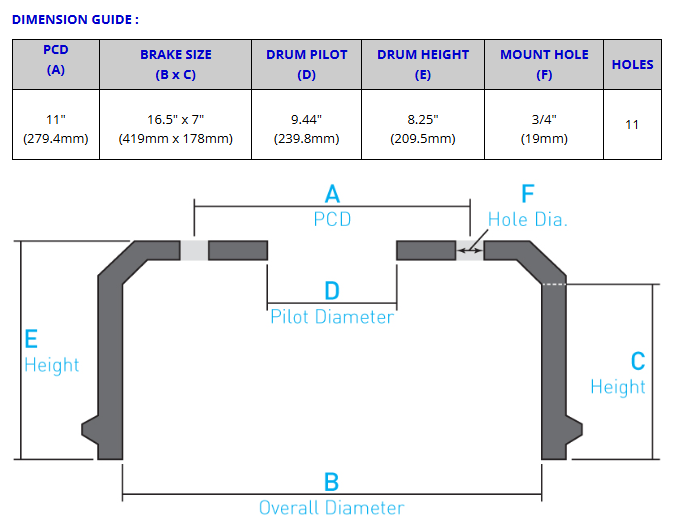

Brake size: 16.5in x 7in (419mm x 178mm). Bolt pattern: 11-hole, 11in (279.4mm) PCD. Pilot bore: 9.44in (239.8mm). Drum height: 8.25in (209.5mm). Mount hole size: 3/4in (19mm).

Part number: AP0855K.

Read the HVIA brake servicing and maintenance guide for practical inspection and workshop checks.

Compatibility and Fitment

Match Brake Drum 16.5×7 11in PCD to a hub with 11 studs on 11in PCD and a pilot close to 239.8mm, then confirm drum height so the wheel seats correctly.

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 011010, 1113, 60327-4, 603274, 786896, BD100B, BD2055.185, BD2055185, BD734, F33-003, F33003, ITBD100, SXT-01-1010, SXT011010

Compliance and Safety

Brake work affects road safety, so follow the axle or brake maker’s service limits and replace drums with cracks, damaged stud holes, or severe heat checking.

• Torque wheel nuts evenly and recheck after bedding-in
• Keep friction surfaces clean and dry during assembly
• Inspect shoes, rollers, cams and slack adjustment together
• Use suitable lifting gear because drums are heavy

Trailer Applications

This Brake Drum 16.5×7 11in PCD suits many trailers using 16.5in x 7in S-cam assemblies and an 11-stud hub pattern, including heavy-duty work trailers and semi-trailers.

• semi-trailers and dog trailers running 16.5×7 brakes
• flat top, tautliner and tipper trailers with 11-stud hubs
• dollies and converter gear using common trailer wheel ends
• service replacements for worn braking surfaces

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

We keep specs clear so you can match bolt pattern, pilot and brake size quickly. If you are unsure, we can tell you what to measure and help line up the related service parts you may need.
