K-Hitch Brake Drum 10/285 ISO 16.5 x 7

Allan Davis on 22/05/2026

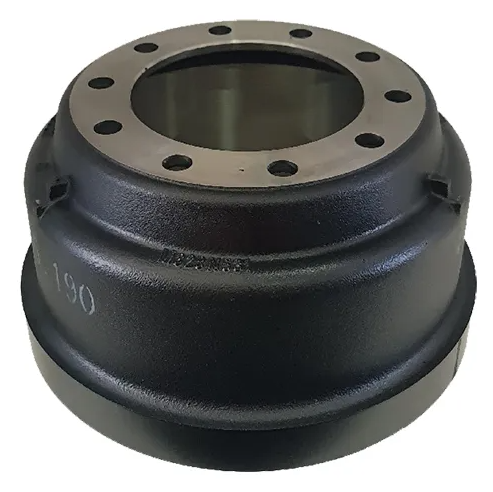

K-Hitch brake drum 10/285 ISO 16.5 x 7 trailer brake drum

K-Hitch Brake Drum 10/285 ISO 16.5 x 7

$221.00

K-Hitch brake drum 10/285 ISO for 16.5 x 7 trailer drum brake setups, with 285mm PCD, 223mm pilot, 272mm drum height and backing plate recess for matching Fuwa K-Hitch axle applications.

Part number KH3602-0303.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: KH3602-0303 Category: Tags: , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

K-Hitch brake drum 10/285 supports heavy trailer drum brake service on 10 stud, 285mm PCD Fuwa K-Hitch axle setups.

This drum suits 16.5″ x 7″ brake applications and includes the backing plate recess needed for the matching brake assembly layout.

Features

  • 10 stud ISO brake drum with 285mm PCD.
  • 16.5″ x 7″ brake size for heavy trailer drum brake applications.
  • Backing plate recess suits the matching Fuwa K-Hitch brake setup.
  • 223mm drum pilot and 10 mounting holes for fitment checking.

Specifications and Materials

K-Hitch brake drum 10/285 uses a cast brake drum body for heavy trailer drive and trailer axle brake service.

Key fitment dimensions are 285mm PCD, 16.5″ x 7″ brake size, 223mm drum pilot, 272mm drum height and 10 mounting holes.

Part number: KH3602-0303.

Use the official K-Hitch drum brake axle parts view when checking axle module and wheel-end component fitment

Compatibility and Fitment

Match the PCD, pilot diameter, brake size, drum height, hole count and backing plate recess before ordering. Also check the wheel-end setup because similar 10/285 drums can differ by pilot, height, hub type or brake assembly.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. AP0875KH, DR191, 810160, DB015TRP, AP0875C, 3600AX, CM107150, M906619, DR190, BD751, AP0875, CM10009830, ITBD120, WT6620

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Related version 10037763 True Turn 10/285 brake drum
Stud to suit KH800104 Short wheel stud M22 x 94
Stud to suit KH800239 Long wheel stud M22 x 122
Nut to suit KH800096 M22 wheel nut
Hubcap kit to check KH800110CKIT Hubcap and gasket kit



Compliance and Safety

Inspect the brake shoes, rollers, return springs, wheel studs, nuts and hub face when replacing the drum. If the old drum shows heat cracking, deep scoring or excessive wear, check the full brake end before returning the trailer to service.

Trailer Applications

Workshops use this K-Hitch brake drum 10/285 on Fuwa K-Hitch trailer axles running 10×285 wheel-end hardware and 16.5″ x 7″ drum brakes. Because the backing plate recess affects clearance, compare the removed drum before fitting.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

AP0875KH DR191 810160
DB015TRP AP0875C 3600AX
CM107150 M906619 DR190
BD751 AP0875 CM10009830
ITBD120 WT6620



Why Choose ICS Trailers

ICS Trailers supplies heavy trailer brake drums and wheel-end parts for workshop repairs, fleet servicing and axle maintenance.

Browse more Brake Drums at ICS Trailers
