BPW ECO Plus Hub Kit 10 Tonne Grease Hub
BPW ECO Plus Hub Kit 10 Tonne Grease Hub
$308.00

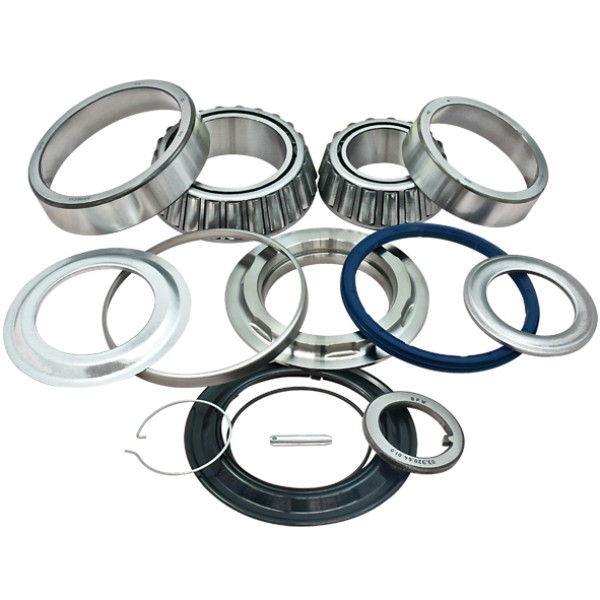

BPW ECO Plus hub kit 10 tonne for one grease hub repair, including seal carrier, hub seal, O ring, dust seals, bearings, thrust washer, washer, locking wedge axle nut and locking ring.
Part number AP0710G.
Description
Overview
BPW ECO Plus hub kit 10 tonne repairs one BPW ECO Plus grease hub with the required bearing, seal, washer, dust seal and locking components.
This kit suits 10 tonne BPW grease hub service where the hub assembly needs a full wheel bearing and seal repair set, including the seal carrier.
Features
- Hub repair kit for one 10 tonne BPW ECO Plus grease hub.
- Includes seal carrier, hub seal, O ring, dust seals, inner bearing and outer bearing.
- Also includes thrust washer, washer, locking wedge axle nut and locking ring for wedge.
- Useful where the hub image or component diagram must be matched by item number during service.
Specifications and Materials
BPW ECO Plus hub kit 10 tonne covers the bearing and seal components needed to repair one hub.
Part number: AP0710G.

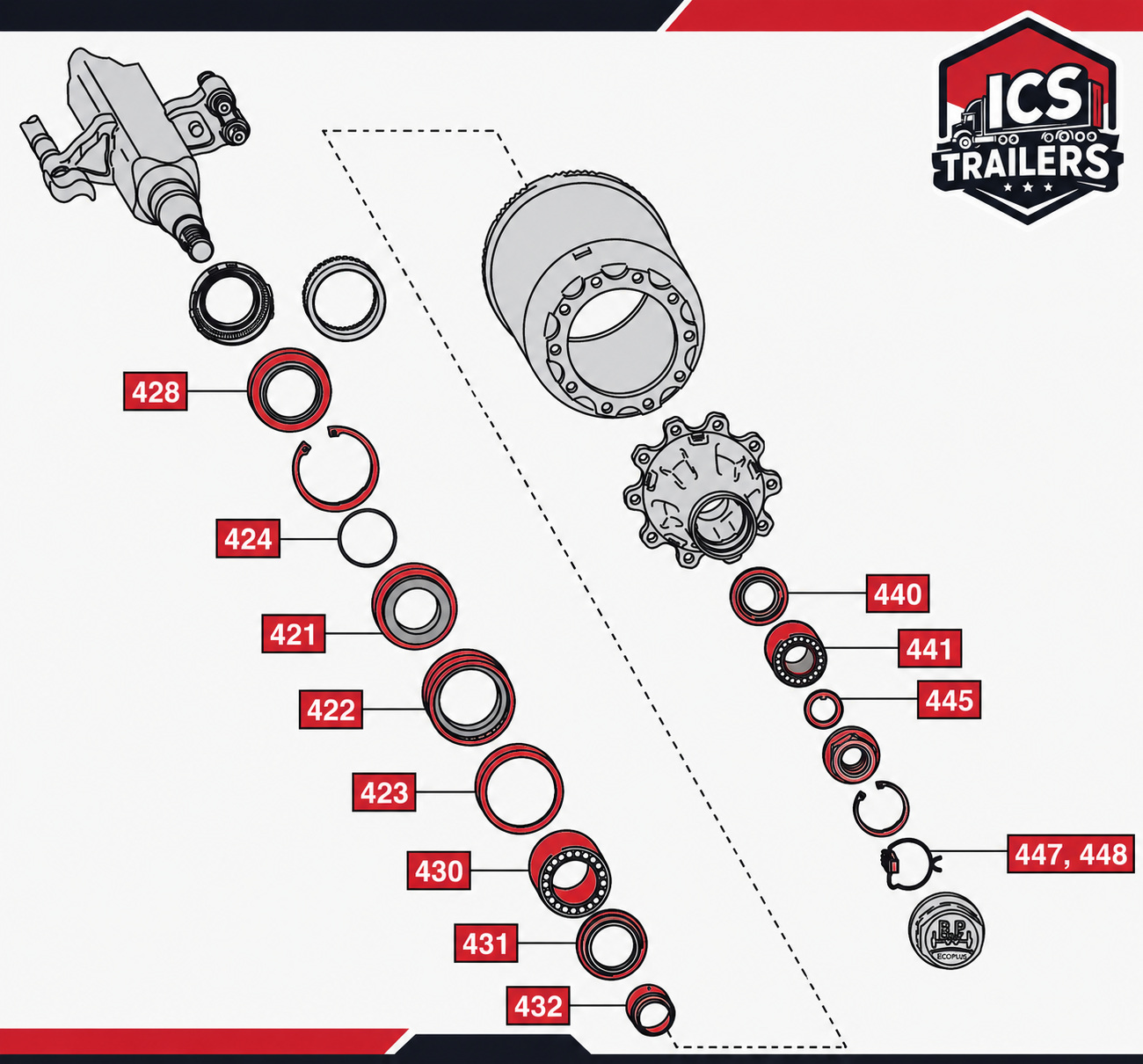

Use the official BPW hub kit contents diagram when matching the numbered hub components
| Item number (Refer to image) | Included component |
|---|---|
| 421 | Seal carrier |
| 422 | Hub seal |
| 424 | O Ring |
| 428 | Dust seal |
| 430 | Inner bearing |
| 431 | Dust cover, bearing shield |
| 432 | Dust seal |
| 440 | Thrust washer |
| 441 | Outer bearing |
| 445 | Washer |
| 447 | Locking wedge axle nut |
| 448 | Locking ring for wedge |
Compatibility and Fitment
Match the hub type, axle rating and setup before ordering. Also compare the removed hub components against the numbered diagram because similar BPW hub kits can differ by seal carrier, hub type and axle rating.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0980107040TSSC
Compliance and Safety
Clean and inspect the hub, bearing seats, seal faces and axle end before fitting the new parts. If any hub or spindle surface shows wear, scoring or heat damage, replace the affected component before the trailer returns to service.
Trailer Applications
Workshops use this kit during servicing on 10 tonne grease hub trailer axles. Because the kit repairs one hub, order quantities need to match the number of hubs being serviced.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| 0980107040TSSC |
