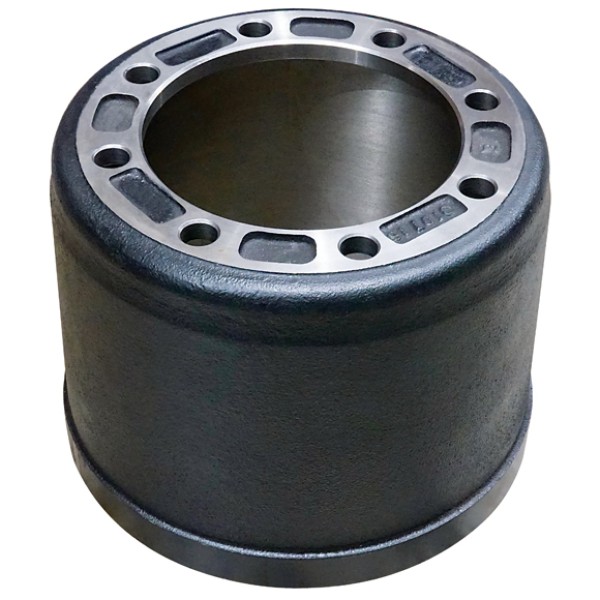

York 275mm PCD brake drum 8 stud
York 275mm PCD Brake Drum 8 Stud - Image 2

York 275mm PCD Brake Drum 8 Stud

$210.00

York 275mm PCD brake drum for 8 stud trailer axle setups with 335mm x 210mm brake size, 228.7mm pilot, 297mm drum height and 25mm mounting holes for accurate York 2950 wheel-end matching.

Part number AP0869G.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: AP0869 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

York 275mm PCD brake drum restores the braking surface on York 2950 axle drum brake assemblies with 335mm x 210mm brake equipment. It suits 8 stud trailer wheel-end service where the PCD, pilot, brake size and drum height must match the removed drum.

Features

  • 275mm PCD brake drum for York 8 stud trailer axle fitment.
  • 335mm x 210mm brake size for matching York 2950 drum brake assemblies.
  • 228.7mm drum pilot and 297mm drum height for accurate wheel-end matching.
  • 25mm mounting holes across an 8 hole drum pattern.

Specifications and Materials

Part number: AP0869G.

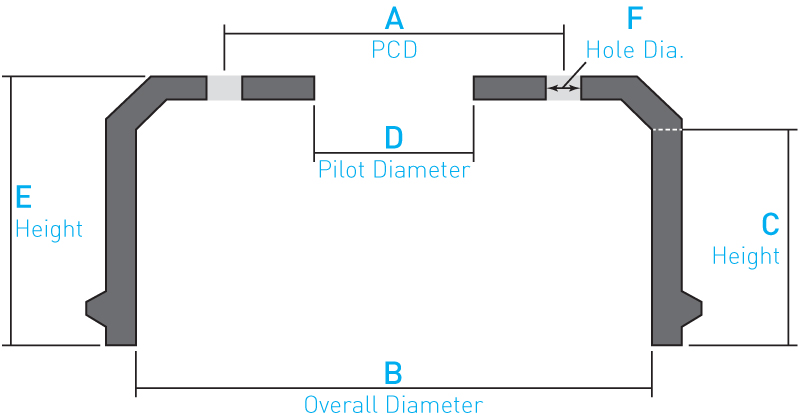

This York 275mm PCD brake drum uses an 8 stud pattern with 25mm mounting holes, a 228.7mm drum pilot and a 297mm drum height. The brake size measures 335mm x 210mm, so compare the full drum profile, wheel fixing and brake shoe contact area before ordering.

Match the drum to the York 2950 335mm x 210mm brake assembly, then check the wheel studs, hub pilot and shoe condition during service. If the old drum shows heat checking, heavy scoring or wear beyond service limits, replace it with the matching brake hardware inspected.

See the York trailer spare parts catalogue

Compatibility and Fitment

Confirm 275mm PCD, 8 stud fixing, 335mm x 210mm brake size, 228.7mm pilot and 297mm drum height before fitting. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 79787704, 79.787704, IT787704, ZTFDT219

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Brake shoe set FB4048KT Lined brake shoe kit
Wheel nut AP6083 M22 wheel nut
Wheel stud AP6127 Alloy wheel stud
Hub seal AP4550S Wheel bearing seal
Outer bearing AP0608KT Outer bearing set
Inner bearing AP0610KT Inner bearing set
Axle nut kit AP4058K York axle nut kit
Dust cover FB5100 General purpose dust cover



Compliance and Safety

Inspect the brake shoes, rollers, return springs, wheel studs, nuts, bearings and hub seal while the drum is removed. Also clean the hub face before installation, then torque wheel hardware to the trailer manufacturer’s procedure.

Trailer Applications

Workshops fit the York 275mm PCD brake drum during York 2950 axle brake repairs, wheel-end rebuilds and drum replacement work. When one drum has worn heavily, check the opposite side of the axle so both brake positions remain balanced.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

79787704 79.787704 IT787704
ZTFDT219



Why Choose ICS Trailers

ICS Trailers supplies brake drums, wheel-end parts and axle service components for heavy trailer repairs. Check the drum, brake shoe kit and hub hardware together so the wheel end returns to service cleanly.
