Description

Overview

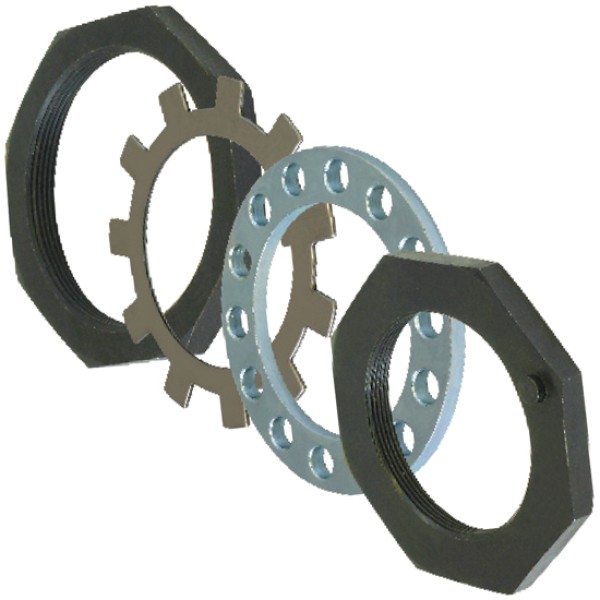

common axle nut kit restores the wheel-end nut and washer stack on common heavy trailer axle setups. The kit suits McGrath, Rubery Owen, Standard Forge, Rockwell, DANA, Eaton and Ingersol applications where the existing inner nut, outer nut, lock washer and lock tab match.

Features

• Kit includes 1 x AP4006 outer axle nut.
• Kit includes 1 x AP4007 axle lock washer.
• Kit includes 1 x AP4008 inner axle nut.
• Kit includes 1 x AP8680 star lock washer.

Specifications and Materials

This common axle nut kit covers the main retaining hardware used during wheel-end service on supported common trailer axle assemblies. The included outer nut measures 82mm A/F, 65mm I.D. and 9.5mm thick, while the included inner nut measures 96mm A/F, 65mm I.D. and 8mm thick.

Part number: AP4006K.

Use the Dana wheel end service manual

Compatibility and Fitment

Match the axle make, spindle thread, nut A/F size, washer I.D. and original retaining hardware before ordering. Also inspect the spindle threads and hub hardware before refitting, because damaged threads or distorted washers can stop the wheel-end from locking correctly.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Clean the spindle and mating hardware before assembly, then replace any nut or washer that shows rounded flats, damaged tabs or thread wear. After fitting, set the wheel bearing adjustment to the axle procedure and confirm the locking hardware has engaged correctly.

Trailer Applications

Workshops use this common axle nut kit during hub removal, bearing service and wheel-end repair on older trailer axle families. It suits service work where the nut and washer stack needs replacement as a matched set rather than reusing worn retaining hardware.

Why Choose ICS Trailers

ICS Trailers supplies axle parts for trailer hub repairs, wheel-end servicing and fleet maintenance where retaining hardware needs to match the axle setup.
