Description

Overview

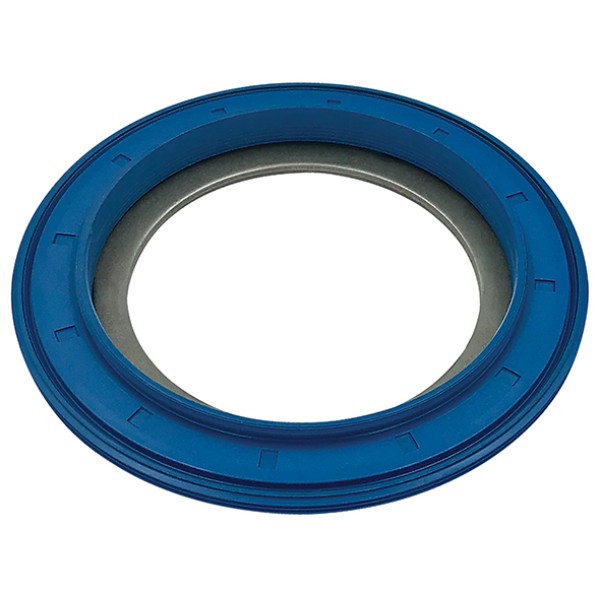

BPW Eco Plus grease seal protects the wheel-end sealing area on BPW ECO Plus 9 and 10/12 tonne trailer axles.

This SKF CR Scotseal Classic wheel seal suits grease-retained BPW Eco Plus hub assemblies where the carrier, seal diameter and hub bore match the existing wheel end. Because seal fitment depends on the hub setup, match the old seal and carrier before ordering.

Features

• Suits BPW ECO Plus 9 and 10/12 tonne axle wheel ends
• SKF CR Scotseal Classic wheel seal construction
• 158mm outside diameter with 17.8mm depth
• 99mm carrier ID and 117.5mm seal ID for matching the hub assembly

Specifications and Materials

This BPW Eco Plus grease seal uses a 158mm outside diameter, 99mm carrier inside diameter, 117.5mm seal inside diameter and 17.8mm depth.

Part number: AP4235G.

The SKF Scotseal Classic design uses a unitised seal body with multiple sealing lips and a Bore Tite coating for the hub bore.

Use the SKF Scotseal Classic technical guide when checking seal construction and installation context

Compatibility and Fitment

Check the BPW ECO Plus axle type, hub seal carrier, bore size and removed seal number before ordering. Also inspect the seal running surface, hub cap, bearings and grease condition when servicing the wheel end.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 02.5664.74.00, 0256647400, 0256646800, 0256647000, 200074333, VKS6376, 070.230/SD, 070230SD, 35066

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Clean the hub bore and inspect the carrier before installing the seal. If the bore, carrier or seal running area has wear, corrosion or impact marks, replace the affected parts before the wheel end goes back together.

After fitting, confirm bearing condition, grease fill, hub cap sealing and wheel-end adjustment before returning the trailer to service.

Trailer Applications

Workshops use a BPW Eco Plus grease seal during hub service on BPW ECO Plus 9 and 10/12 tonne trailer axles. It suits wheel-end repairs where the hub has been stripped for bearing work, grease service or seal replacement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers can help match BPW wheel-end parts by axle type, seal size, hub setup, bearing set and related service hardware.
