BPW ECO 10 Tonne Grease Hub Kit

Allan Davis on 04/06/2026

BPW ECO 10 tonne grease hub kit
BPW ECO 10 Tonne Grease Hub Kit - Image 2

BPW ECO 10 Tonne Grease Hub Kit

$294.00

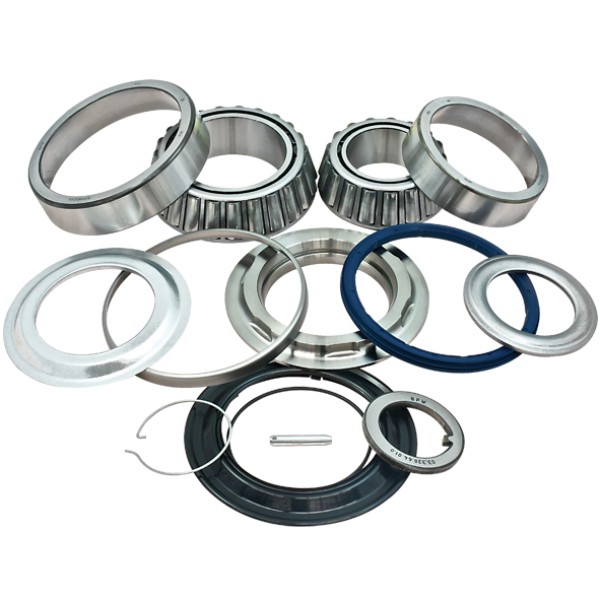

BPW ECO 10 tonne grease hub kit repairs one matching trailer hub and includes the seal carrier, hub seal, seal runner, O ring, dust seal, inner and outer bearings, washers and axle nut locking parts.

Part number AP0709G.

Quick Quote

SKU: AP0709G Category: Tags: , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

BPW ECO 10 tonne grease hub kit repairs one BPW ECO 10 tonne grease hub with the main bearing, seal and locking components needed during wheel-end service. It suits workshop replacement where the hub setup matches the BPW ECO 10 tonne grease hub system and a seal carrier is required.

Features

  • Repairs one BPW ECO 10 tonne grease hub.
  • Includes seal carrier for hub service where the carrier is being replaced.
  • Includes hub seal, seal runner, O ring, dust seal and bearing shield components.
  • Includes inner bearing, outer bearing, thrust washer, washer and axle nut locking components.

Specifications and Materials

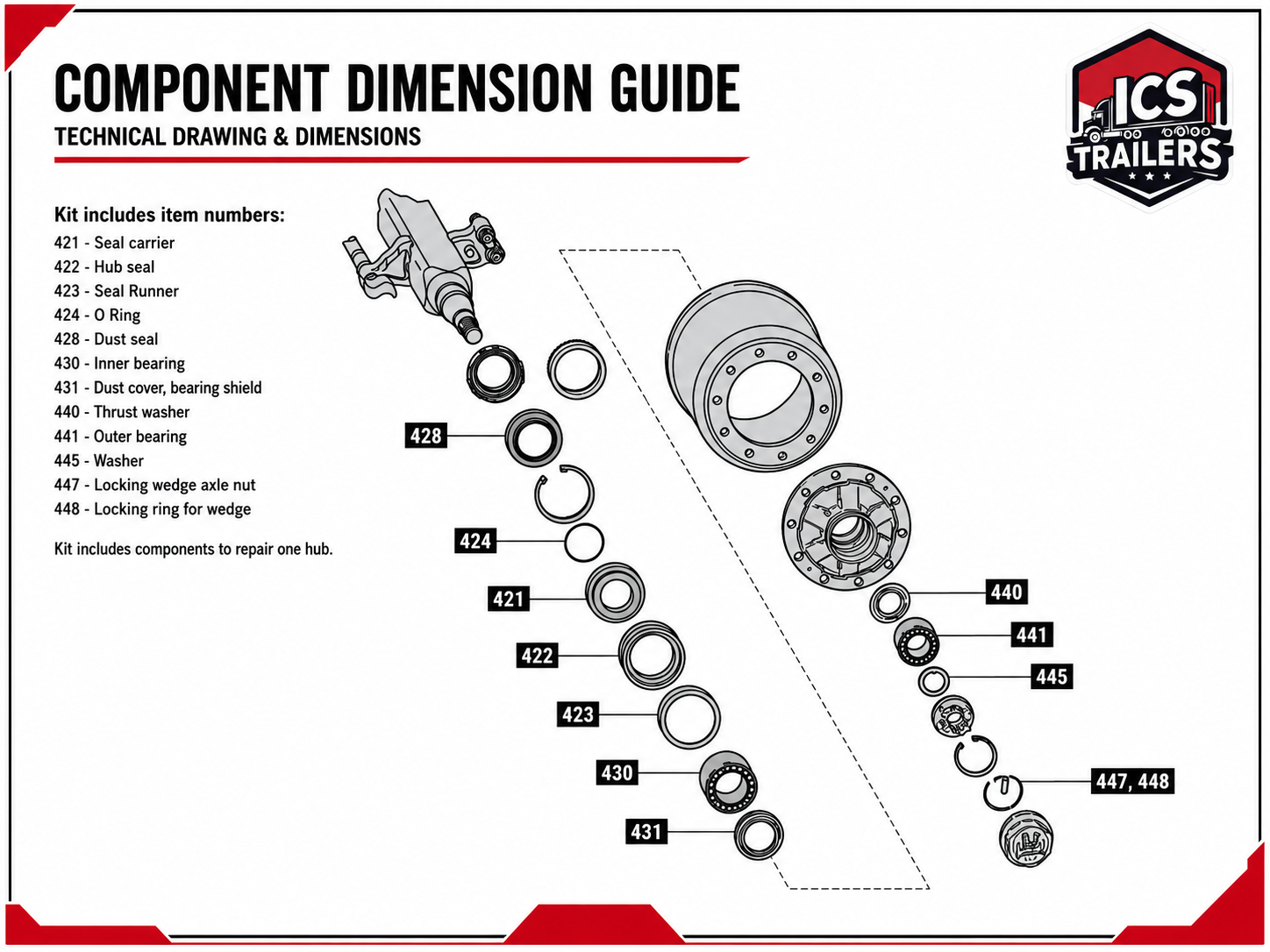

This BPW ECO 10 tonne grease hub kit includes item numbers 421, 422, 423, 424, 428, 430, 431, 440, 441, 445, 447 and 448. It covers the seal carrier, hub seal, seal runner, O ring, dust seal, inner bearing, dust cover bearing shield, thrust washer, outer bearing, washer, locking wedge axle nut and locking ring for wedge.

Part number: AP0709G.

The BPW hub component chart gives the matching hub kit and component reference data

Compatibility and Fitment

Match the axle, hub type and grease hub setup before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0980106890TSSC

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Related version AP0708G 10 tonne ECO hub kit without seal carrier
Related version AP0710G 10 tonne ECO Plus hub kit
Related version AP0703G 9 tonne ECO hub kit
Related version AP0705G 10 tonne non ECO hub kit



Compliance and Safety

Clean and inspect the hub before fitting the kit, then replace damaged wheel-end components rather than reusing worn parts. Also confirm bearing seating, seal position and axle nut locking before returning the trailer to service.

Trailer Applications

Workshops use this BPW ECO 10 tonne grease hub kit during trailer wheel bearing and hub seal service on matching BPW ECO grease hub assemblies. Because BPW ECO, ECO Plus and non ECO hubs use different parts, compare the removed components before fitting.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

0980106890TSSC



Why Choose ICS Trailers

ICS Trailers supplies BPW wheel-end repair parts with the included service components clearly separated from related hub kit versions.
