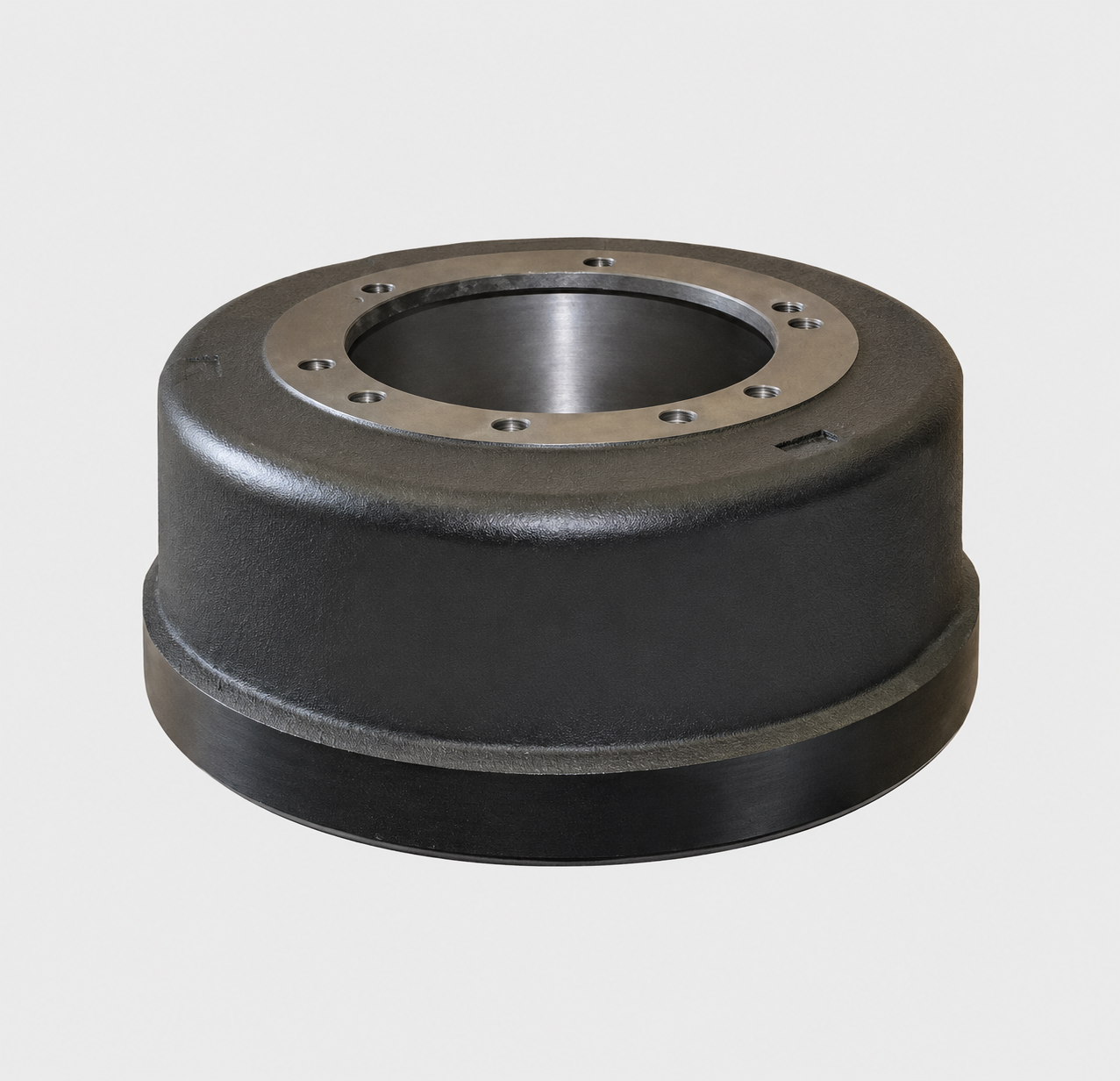

10/285 Light Brake Drum 16.5″ x 8-5/8″

Allan Davis on 04/06/2026

10/285 light brake drum 16.5 x 8-5/8
10/285 Light Brake Drum 16.5" x 8-5/8" - Image 2

10/285 Light Brake Drum 16.5″ x 8-5/8″

$315.00

10/285 light brake drum suits heavy trailer wheel ends using 16.5″ x 8-5/8″ brakes and 10 stud 285mm PCD hardware, helping workshops match wide drum brake applications before fitting.

Part number AP0941C.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: AP0941C Category: Tags: , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

10/285 light brake drum supports heavy trailer wheel-end service where the existing setup uses a 10 stud, 285mm PCD drum with 16.5″ x 8-5/8″ brake size. It suits replacement work where the removed drum matches the same stud pattern, brake diameter and brake width.

Features

  • 10 stud brake drum with 285mm PCD layout.
  • Suits 16.5″ x 8-5/8″ drum brake applications.
  • Light brake drum style for matching against the existing trailer wheel end.
  • Supplied as one brake drum.

Specifications and Materials

This 10/285 light brake drum matches 16.5″ x 8-5/8″ brake sizing. Before ordering, compare the removed drum against the stud count, PCD, pilot, overall height and brake shoe width.

Part number: AP0941C.

The manufacturer brake drum catalogue gives dimensional reference data for heavy vehicle brake drums

Compatibility and Fitment

Match the drum to the existing hub and brake assembly before fitting. Check the PCD, number of studs, pilot diameter, drum height, mounting hole size and brake shoe width, because 10/285 trailer drums are not all interchangeable.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Brake shoe kit AMMSKMG2A4711QP 16.5″ x 8-5/8″ brake shoe kit
Related brake size 4711T 16.5″ x 8-5/8″ shoe reference



Compliance and Safety

Inspect the hub, wheel studs, brake shoes, rollers and return hardware while the brake drum is removed. Also check the old drum for cracking, heat checking, scoring and wear before replacing it, because drum condition directly affects trailer braking performance.

Trailer Applications

Workshops fit this 10/285 light brake drum during heavy trailer foundation brake service where the wheel end runs 10 stud 285mm PCD hardware and wide 16.5″ x 8-5/8″ brakes. Compare the old drum carefully before installation, especially on mixed fleet trailers.

Why Choose ICS Trailers

ICS Trailers supplies heavy trailer brake and wheel-end parts with practical fitment details for matching brake size, stud pattern and service hardware.

Browse more Brake Drums
