Fruehauf 9-1/2 Brake Drum 16.5″ x 7″

Allan Davis on 04/06/2026

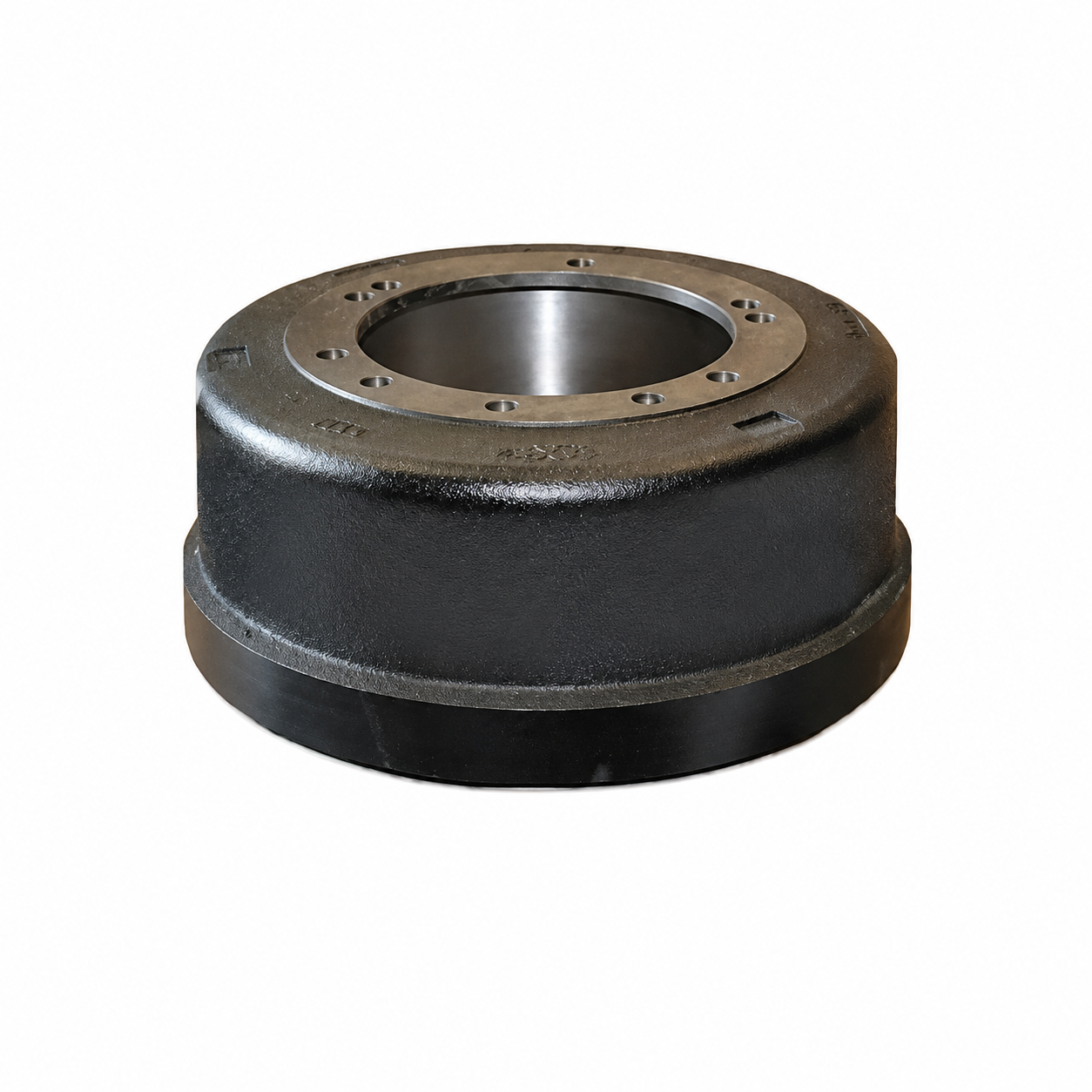

Fruehauf 9-1/2 brake drum 16.5 x 7
Fruehauf 9-1/2 Brake Drum 16.5" x 7" - Image 2

Fruehauf 9-1/2 Brake Drum 16.5″ x 7″

$206.00

Fruehauf 9-1/2 brake drum suits Fruehauf Propar trailer axle setups using 16.5″ x 7″ brakes, 285mm PCD and 9.5″ pilot, helping workshops match the drum before stripping the wheel end.

Part number AP0853C.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: AP0853C Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

Fruehauf 9-1/2 brake drum supports Fruehauf Propar trailer axle brake service where the drum must match the pilot, PCD and 16.5″ x 7″ brake size. It suits 5/6 spoke style applications where the existing drum uses the same 9.5″ pilot and 285mm PCD layout.

Features

  • Suits Fruehauf Propar 16.5″ x 7″ drum brake applications.
  • 9.5″ drum pilot for matching against the existing hub setup.
  • 11.25″ PCD, also shown as 285mm.
  • 5/6 spoke style drilling with 11 holes.

Specifications and Materials

This Fruehauf 9-1/2 brake drum matches 11.25″ (285mm) PCD, 16.5″ x 7″ brake size, 9.5″ (241.3mm) drum pilot, 8.7″ (221mm) drum height and 0.75″ (19mm) mount holes.

Part number: AP0853C.

The manufacturer brake drum catalogue gives dimensional reference data for equivalent heavy vehicle brake drums

Compatibility and Fitment

Match the PCD, pilot diameter, brake size, drum height, mount hole size and spoke drilling before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. AP0853, 011002, 1105, 2546C, 3018B, 3602F, 603002-1, 68765, 786897, ALA9067, BD737, DM186, DT134, ITBD40, TD1105, WT6601, 12586, G04, ZGBF33-004, ITBD40B, 03.9004.0, ZTFDM186

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Brake shoe kit FB4008AF557K 16.5″ x 7″ lined shoe kit
Hardware kit FB3306 Brake shoe hardware kit
Support bracket FB3001 Fruehauf Propar support bracket
Return spring FB3451 Brake return spring
Roller to suit FB3403 Brake shoe roller



Compliance and Safety

Inspect the hub, studs, shoes, rollers and brake hardware while the drum is removed. Also check the old drum for cracking, heat damage, scoring and wear before replacing it, because brake drum condition directly affects trailer braking performance.

Trailer Applications

Workshops fit this Fruehauf 9-1/2 brake drum during Fruehauf Propar trailer axle service when the existing wheel end uses 16.5″ x 7″ brakes and the matching spoke hub pattern. Compare the removed drum before fitting, especially where older trailers have mixed hub and brake hardware.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

AP0853 011002 1105
2546C 3018B 3602F
603002-1 68765 786897
ALA9067 BD737 DM186
DT134 ITBD40 TD1105
WT6601 12586 G04
ZGBF33-004 ITBD40B 03.9004.0
ZTFDM186



Why Choose ICS Trailers

ICS Trailers supplies heavy trailer brake and wheel-end parts with practical fitment details for matching older Fruehauf Propar axle setups.
