Description

Overview

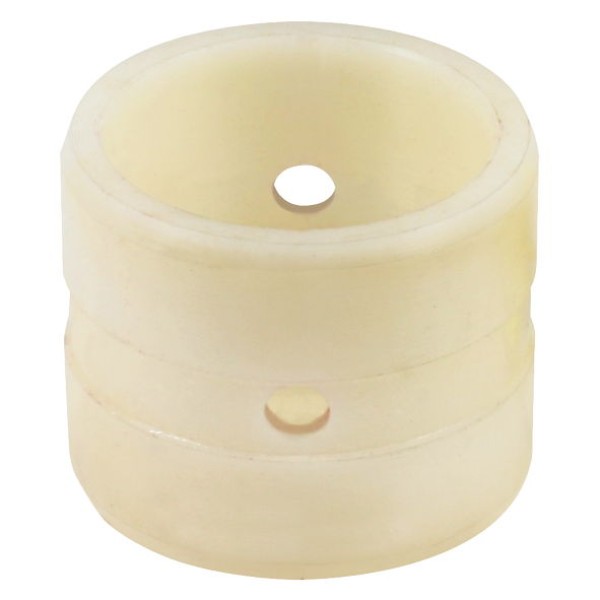

Standard Forge outer bush 38mm gives heavy trailer suspensions a durable pivot point in hanger brackets that use Standard Forge hardware. It supports the pivot pin so the suspension can move smoothly through its travel under loaded and unloaded conditions. As a result, this small component helps keep axle groups aligned, which protects tyres and reduces stress on the hanger.

Features

• Compact outer bush sized for Standard Forge suspension hangers used on a wide range of trailers.
• 38mm length with 38mm internal diameter and 48mm outer diameter for accurate location in the bracket.
• Helps maintain pin alignment so braking feel and ride quality stay consistent over time.
• Straightforward replacement for worn bushes, which helps minimise workshop downtime.

Specifications and Materials

This Standard Forge outer bush 38mm suits hanger brackets that carry a 38mm pin in a 48mm housing bore. Part number: FB2104.

• Length: 38mm
• Internal diameter: 38mm
• Outer diameter: 48mm

For background on how plain bearing bushings handle oscillating and rotating loads in industrial applications, review this manufacturer technical guide manufacturer technical guide that explains common bushing types and typical performance factors.

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 28-1232, 405129, E-759, FL28.1231, FL28.1232, M10WJ109, TP596, WT2208, WT2208B

Compliance and Safety

When you replace a Standard Forge outer bush 38mm, always secure the trailer on rated stands before removing any hanger hardware. Next, clean the hanger bore and inspect the pivot pin for grooving or taper, because a badly worn pin can damage the new bush quickly. Use a suitable press or puller and, if needed, a light lubricant on the outer surface so the bush seats squarely without excessive force. Finally, torque all fasteners to the axle or suspension maker’s recommendation and recheck them after the first loaded trip.

Trailer Applications

Typical use for this bush includes Standard Forge suspension hangers on semi trailers, dog trailers and other multi axle highway trailers. It suits workshops that maintain mixed fleets yet prefer to standardise on familiar Standard Forge hardware wherever possible. Additionally, this bush works well for planned suspension overhauls where you change pins, bushes and hanger bolts as a complete set.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Before final selection, always confirm the pin size, hanger style and bush dimensions against the parts already on the trailer.

Why Choose ICS Trailers

ICS Trailers supplies the Standard Forge outer bush 38mm along with matching pins and hardware so you can complete a full suspension repair in one order. Moreover, our team understands heavy trailer suspension systems and can help you match this bush to the correct hanger when cross references are unclear. In addition, ICS focuses on proven components and clear fitment data, which helps workshops reduce comebacks and keep equipment on the road longer. For more compatible products, browse Suspension parts at ICS Trailers using this link Browse Suspension parts at ICS Trailers
